Egenskaber
| Version | Cover hood (terminal), Wemid |
| Order No. | 2503390000 |

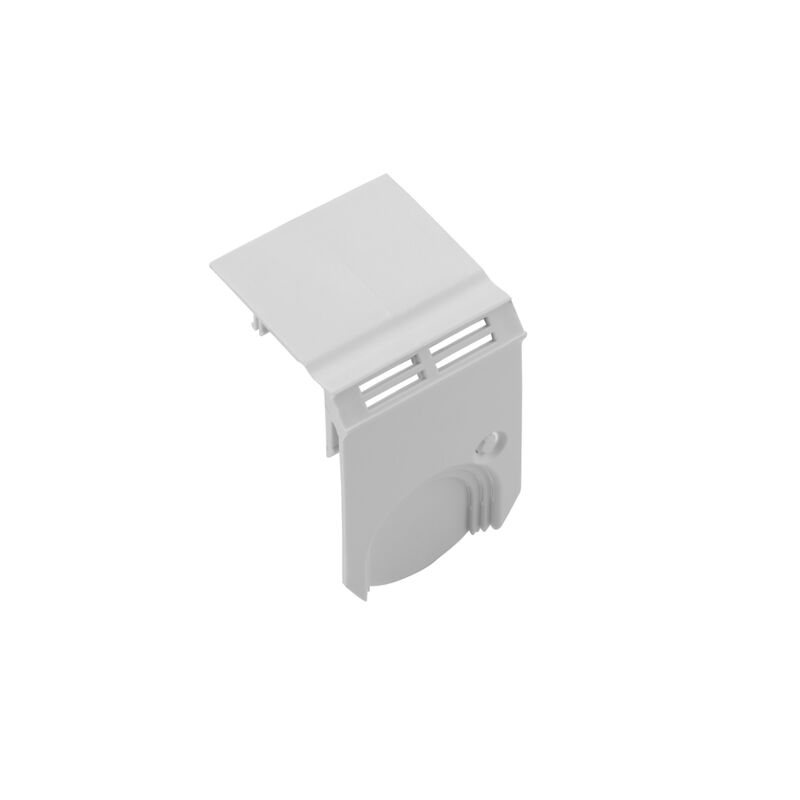

| Type | WPDPC X33 GY |
| GTIN (EAN) | 4050118533354 |
| Qty. | 8 Styk |
| Depth | 85,5 mm |
| Depth (inches) | 3,366 inch |
| Height | 29,77 mm |
| Height (inches) | 1,172 inch |
| Width | 37,6 mm |
| Width (inches) | 1,48 inch |
| Net weight | 5,85 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | Light Grey |
| UL 94 flammability rating | V-0 |
| End cover plate required | No |
| Levels cross-connected internally | No |
| Explosion-tested version | No |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_39850) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2503390000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2503390000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2502890000Pakningsenhed:1 Styk
Potential distributor terminal, Screw connection, black, 300 mm², 520 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2502900000Pakningsenhed:1 Styk
Potential distributor terminal, Screw connection, Light Grey, 300 mm², 520 A, 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2502910000Pakningsenhed:1 Styk
Potential distributor terminal, Screw connection, blue, 300 mm², 520 A, 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2502880000Pakningsenhed:1 Styk
Potential distributor terminal, Screw connection, brown, 300 mm², 520 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2502870000Pakningsenhed:1 Styk
Potential distributor terminal, Screw connection, green, 300 mm², 520 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2502850000Pakningsenhed:1 Styk
Potential distributor terminal, Screw connection, Light Grey, 300 mm², 520 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2502860000Pakningsenhed:1 Styk
Potential distributor terminal, Screw connection, blue, 300 mm², 520 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2502940000Pakningsenhed:1 Styk
Potential distributor terminal, Screw connection, black, 300 mm², 520 A, 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2502920000Pakningsenhed:1 Styk
Potential distributor terminal, Screw connection, green, 300 mm², 520 A, 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2502930000Pakningsenhed:1 Styk
Potential distributor terminal, Screw connection, brown, 300 mm², 520 A, 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
