Egenskaber
| Version | Cross-connector (terminal), when screwed in, Silver grey, 192 A, Number of poles: 2, Pitch in mm (P): 20.50, Insulated: No, Width: 9.5 mm |
| Order No. | 9525840000 |

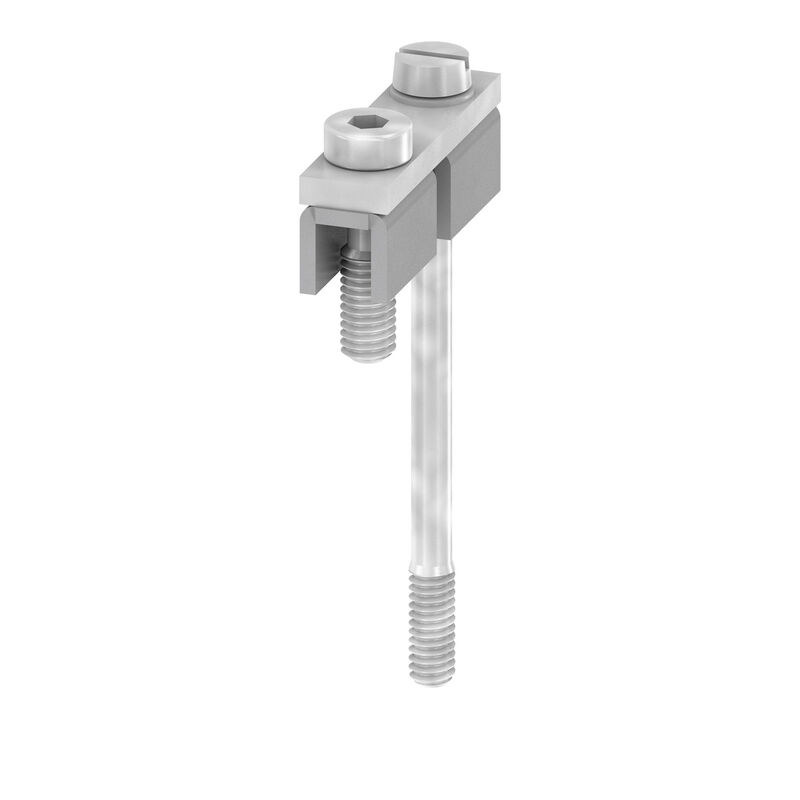

| Type | WQV 70N-PEN |
| GTIN (EAN) | 4008190471033 |
| Qty. | 5 Styk |
| Depth | 62,7 mm |
| Depth (inches) | 2,468 inch |
| Height | 30,5 mm |
| Height (inches) | 1,201 inch |
| Width | 9,5 mm |
| Width (inches) | 0,374 inch |
| Net weight | 36,456 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | tinned copper |
| Colour | Silver grey |
| Version | For the terminals |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Number of cross-connected terminals | 2 |
| Rated current, multi-pole | 192 A |
| Type | Cross-connector |
| Pitch in mm (P) | 20,5 mm |
| Installation advice | Direct mounting |
| Number of poles | 2 |
| Rated voltage | 400 V |
| Rated current | 192 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_236654) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9525840000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9525840000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=9525840000&norm=0) |
| User Documentation |
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
[Instruction](https://mdcop.weidmueller.com/mediadelivery/asset/900_97219) [User Manual WQV PEN](https://mdcop.weidmueller.com/mediadelivery/asset/900_229218) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
Tilbehør
ToolsCuttingMiscellaneousCutting and notching tools for cross-connections
Er tilbehør til
-
Produkt ID:9512200000Pakningsenhed:10 Styk
PE terminal, Screw connection, Green/yellow, 70 mm², 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
Terminal BlocksApplication rangePower feed-inClamping yoke technologyModular PE terminal blocks70 mm²
