Egenskaber
| Version | Accessories, Rail support, PA 66 GF 30 |
| Order No. | 1068700000 |

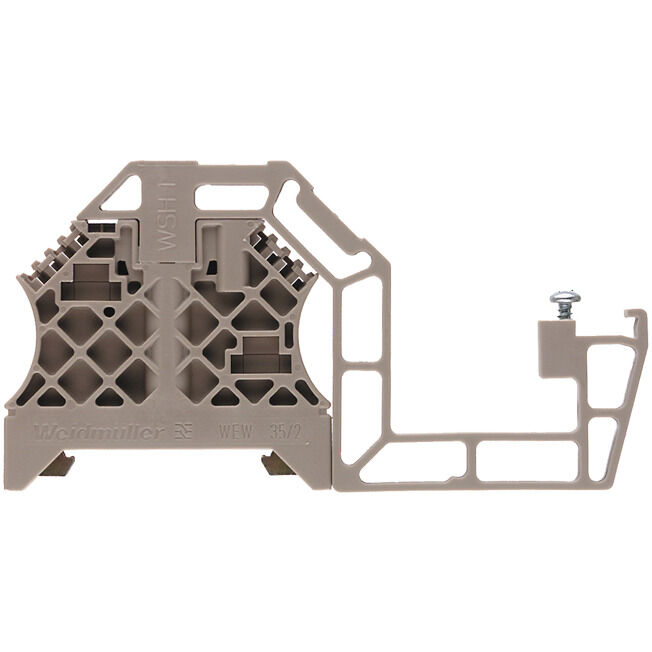

| Type | WSH 1 |
| GTIN (EAN) | 4008190118389 |
| Qty. | 10 Styk |
| Depth | 57 mm |
| Depth (inches) | 2,244 inch |
| Height | 110 mm |
| Height (inches) | 4,331 inch |
| Width | 8 mm |
| Width (inches) | 0,315 inch |
| Net weight | 26,175 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature | -50 °C...65 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA 66 GF 30 |
| Colour | dark beige |
| UL 94 flammability rating | HB |
| Version | For the mounting rails |
| Rail | TS 35 |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Type of mounting | when screwed in |
| Pitch in mm (P) | 8 mm |
| Mounting offset | 66 mm |
| Installation advice | Direct mounting |
| Number of poles | 1 |
| Rail | TS 35 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_236576) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1068700000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1068700000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001166 |
| ETIM 7.0 | EC001166 |
| ETIM 8.0 | EC001166 |
| ETIM 9.0 | EC001166 |
| ECLASS 9.0 | 27-40-06-07 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-40-06-07 |
| ECLASS 11.0 | 27-40-06-07 |
| ECLASS 12.0 | 27-40-06-07 |
| ECLASS 13.0 | 27-40-06-07 |
| ECLASS 14.0 | 27-40-06-07 |
| ROHS | Conform |
Tilbehør
-
Produkt ID:0438000000Pakningsenhed:1 Meter
Busbar (terminal), silver, Height: 1000 mm, Depth: 3 mm, Steel
-
Produkt ID:0348900000Pakningsenhed:1 Meter
Busbar (terminal), silver, Height: 1000 mm, Depth: 3 mm, Copper
Er tilbehør til
-
Produkt ID:1723800000Pakningsenhed:10 Styk
Clamping yoke, Set of fixings, Steel
-
-
-
-
-
-
Produkt ID:0236510000Pakningsenhed:1 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 1000 mm, Height: 35 mm, Depth: 15 mm, Slit width: 5.20 mm, Slit length: 25.00 mm
-
Produkt ID:1837380000Pakningsenhed:2 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 15 mm, Slit width: 5.20 mm, Slit length: 18.00 mm
-
Produkt ID:0383400000Pakningsenhed:2 Styk
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 7.5 mm
-
Produkt ID:1879090000Pakningsenhed:2 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 7.5 mm, Slit width: 5.00 mm, Slit length: 18.00 mm
-
Produkt ID:1866290000Pakningsenhed:2 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 15 mm, Slit width: 6.30 mm, Slit length: 25.00 mm
-
Produkt ID:1879100000Pakningsenhed:2 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 15 mm, Slit width: 5.20 mm, Slit length: 18.00 mm
-
Produkt ID:7907490000Pakningsenhed:2 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 15 mm, Slit width: 5.20 mm, Slit length: 25.00 mm
-
Produkt ID:0514570000Pakningsenhed:2 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 7.5 mm, Slit width: 6.20 mm, Slit length: 18.00 mm
-
Produkt ID:7915060000Pakningsenhed:2 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 7.5 mm, Slit width: 5.20 mm, Slit length: 25.00 mm
-
Produkt ID:0236400000Pakningsenhed:2 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 15 mm
-
Produkt ID:0498000000Pakningsenhed:2 Styk
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 15 mm
-
Produkt ID:0514500000Pakningsenhed:2 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 7.5 mm, Slit width: 5.20 mm, Slit length: 25.00 mm
-
Produkt ID:1071690000Pakningsenhed:2 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 7.5 mm, Slit width: 6.20 mm, Slit length: 18.00 mm
-
Produkt ID:9300090000Pakningsenhed:2 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 7.5 mm
-
Produkt ID:0514510000Pakningsenhed:1 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 1000 mm, Height: 35 mm, Depth: 7.5 mm, Slit width: 5.20 mm, Slit length: 25.00 mm
-
Produkt ID:0383410000Pakningsenhed:20 Meter
Terminal rail, Accessories, Steel, galvanized, chromium-plated, Width: 1000 mm, Height: 35 mm, Depth: 7.5 mm
-
Produkt ID:1805980000Pakningsenhed:2 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 15 mm, Slit width: 6.30 mm, Slit length: 18.00 mm
-
Produkt ID:0236500000Pakningsenhed:2 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 15 mm, Slit width: 5.20 mm, Slit length: 25.00 mm
-
Produkt ID:0514300000Pakningsenhed:2 Meter
Terminal rail, Accessories, PVC, untreated, Width: 2000 mm, Height: 35 mm, Depth: 15 mm
-
Produkt ID:1747350000Pakningsenhed:2 Meter
Terminal rail, Accessories, Stainless steel 1.4301, untreated, Width: 2000 mm, Height: 35 mm, Depth: 7.5 mm
-
Produkt ID:0270100000Pakningsenhed:2 Meter
Terminal rail, Accessories, Copper, untreated, Width: 2000 mm, Height: 35 mm, Depth: 15 mm
-
Produkt ID:1848290000Pakningsenhed:2 Meter
Terminal rail, Accessories, Aluminium, untreated, Width: 2000 mm, Height: 35 mm, Depth: 15 mm
-
Produkt ID:0330800000Pakningsenhed:2 Meter
Terminal rail, Accessories, Aluminium, untreated, Width: 2000 mm, Height: 35 mm, Depth: 7.5 mm
-
-
-
-
-
