Egenskaber
| Version | Accessories, Rail support, metal |
| Order No. | 1083100000 |

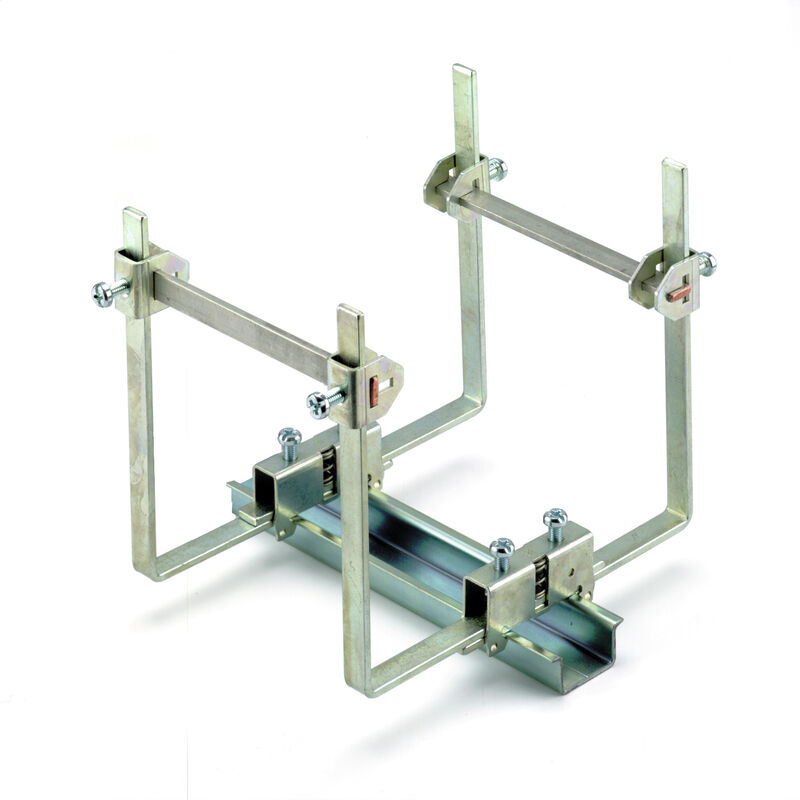

| Type | WSH 18 MT |
| GTIN (EAN) | 4008190053246 |
| Qty. | 10 Styk |
| Width | 13,5 mm |
| Width (inches) | 0,531 inch |
| Net weight | 173,51 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., max. | 85 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | metal |
| Colour | grey |
| UL 94 flammability rating | None |
| Version | For the mounting rails |
| Rail | TS 35 |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Type of mounting | when screwed in |
| Pitch in mm (P) | 8 mm |
| Installation advice | Direct mounting |
| Number of poles | 1 |
| Rail | TS 35 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_52364) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1083100000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1083100000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001166 |
| ETIM 7.0 | EC001166 |
| ETIM 8.0 | EC001166 |
| ETIM 9.0 | EC001166 |
| ECLASS 9.0 | 27-40-06-07 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-40-06-07 |
| ECLASS 11.0 | 27-40-06-07 |
| ECLASS 12.0 | 27-40-06-07 |
| ECLASS 13.0 | 27-40-06-07 |
| ECLASS 14.0 | 27-40-06-07 |
| ROHS | Conform |
Tilbehør
-
Produkt ID:0438000000Pakningsenhed:1 Meter
Busbar (terminal), silver, Height: 1000 mm, Depth: 3 mm, Steel
-
Produkt ID:0280200000Pakningsenhed:10 Meter
Busbar (terminal), Natural, Height: 15 mm, Depth: 2 mm, Copper
-
Produkt ID:0280300000Pakningsenhed:10 Meter
Busbar (terminal), silver, Height: 12 mm, Depth: 2 mm, Steel
-
Produkt ID:0357400000Pakningsenhed:1 Meter
Busbar (terminal), silver, Height: 1000 mm, Depth: 6 mm, Copper
-
Produkt ID:1071200000Pakningsenhed:1 Meter
Busbar (terminal), silver, Height: 1000 mm, Depth: 1.2 mm, Copper
-
Produkt ID:0571300000Pakningsenhed:1 Meter
Busbar (terminal), silver, Height: 1000 mm, Depth: 6 mm, Copper
-
Produkt ID:0348900000Pakningsenhed:1 Meter
Busbar (terminal), silver, Height: 1000 mm, Depth: 3 mm, Copper
Terminal BlocksAccessoriesBusbarsBlank busbarsSteel
Terminal BlocksAccessoriesBusbarsPunched busbarsCopper
Terminal BlocksAccessoriesBusbarsPunched busbarsSteel
Terminal BlocksAccessoriesBusbarsBlank busbarsCopper
Er tilbehør til
Terminal BlocksApplication rangeShielding and earthingShield clamping saddleFor busbars 10x3Attachment from above
