Egenskaber

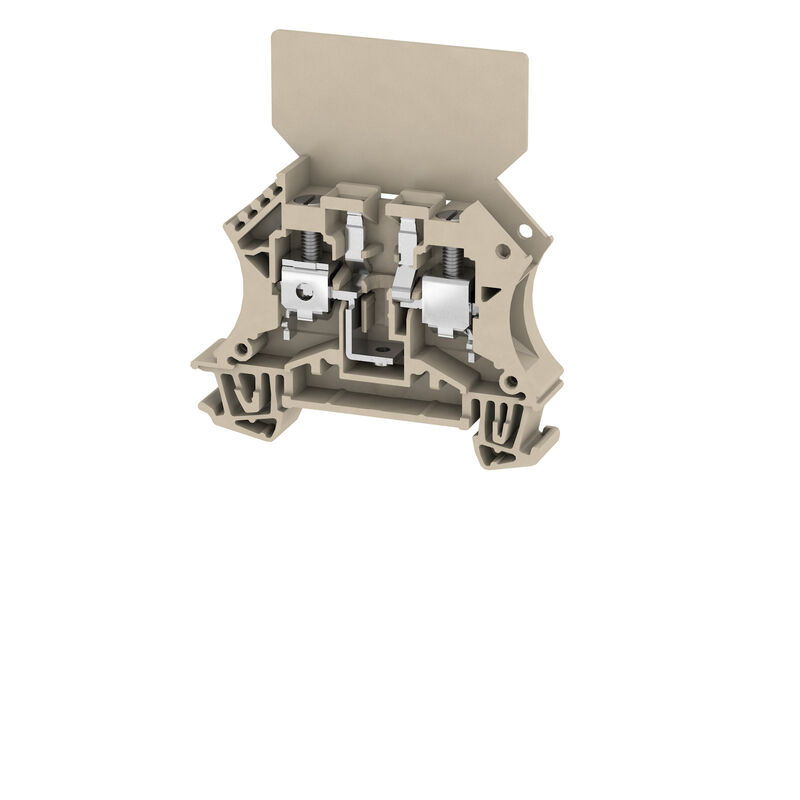

| Version | Fuse terminal, Screw connection, dark beige, 6 mm², 10 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid |
| Order No. | 1018400000 |
| Type | WSI 6/2 O.TNHE |
| GTIN (EAN) | 4008190202590 |
| Qty. | 25 Styk |
| Depth | 66,5 mm |
| Depth (inches) | 2,618 inch |
| Depth including DIN rail | 67 mm |
| Height | 60 mm |
| Height (inches) | 2,362 inch |
| Width | 11,9 mm |
| Width (inches) | 0,469 inch |
| Net weight | 20,12 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version |
Screw connection
for screwable cross-connection One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Blade size | 0.8 x 4.0 mm |
| Clampable conductor |
|
| Connection cross-section, stranded, max. | 10 mm² |
| Number of connections | 2 |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
| Certificate No. (CSA) | 200039-1057876 |
| Current size B (CSA) | 16 A |
| Current size C (CSA) | 16 A |
| Current size D (CSA) | 5 A |
| Voltage size B (CSA) | 150 V |
| Voltage size C (CSA) | 150 V |
| Voltage size D (CSA) | 600 V |
| Wire cross section max. (CSA) | 6 AWG |
| Wire cross section min. (CSA) | 20 AWG |
| Type of voltage for indicator | AC/DC |
| Display | Without LED |
| Type of voltage for indicator | AC/DC |
| Rail | TS 35 |
| Standards |
IEC 60947-7-3
IEC 60947-7-1 |
| Rated cross-section | 6 mm² |
| Rated voltage | 500 V |
| Rated voltage to adjoining terminal | 500 V |
| Rated DC voltage | 500 V |
| Rated current | 10 A |
| Current at maximum wires | 10 A |
| Standards |
IEC 60947-7-3
IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0,78 mΩ |
| Power loss in accordance with IEC 60947-7-x | 1,31 W |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 8 AWG |
| Conductor size Factory wiring min. (UR) | 22 AWG |
| Conductor size Field wiring max. (UR) | 8 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Current size C (UR) | 16 A |
| Voltage size C (UR) | 600 V |
| Product information | The voltage depends on the selected fuse element or the selected indicator light |
| Approval/Certificate/Document of Conformity |
[CB Testreport](https://mdcop.weidmueller.com/mediadelivery/asset/900_42036)
[CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_42037) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284530) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59562) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1018400000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1018400000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1018400000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000899 |
| ETIM 7.0 | EC000899 |
| ETIM 8.0 | EC000899 |
| ETIM 9.0 | EC000899 |
| ECLASS 9.0 | 27-14-11-16 |
| ECLASS 9.1 | 27-14-11-16 |
| ECLASS 10.0 | 27-14-11-16 |
| ECLASS 11.0 | 27-14-11-16 |
| ECLASS 12.0 | 27-14-11-16 |
| ECLASS 13.0 | 27-25-01-13 |
| ECLASS 14.0 | 27-25-01-13 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
