Egenskaber

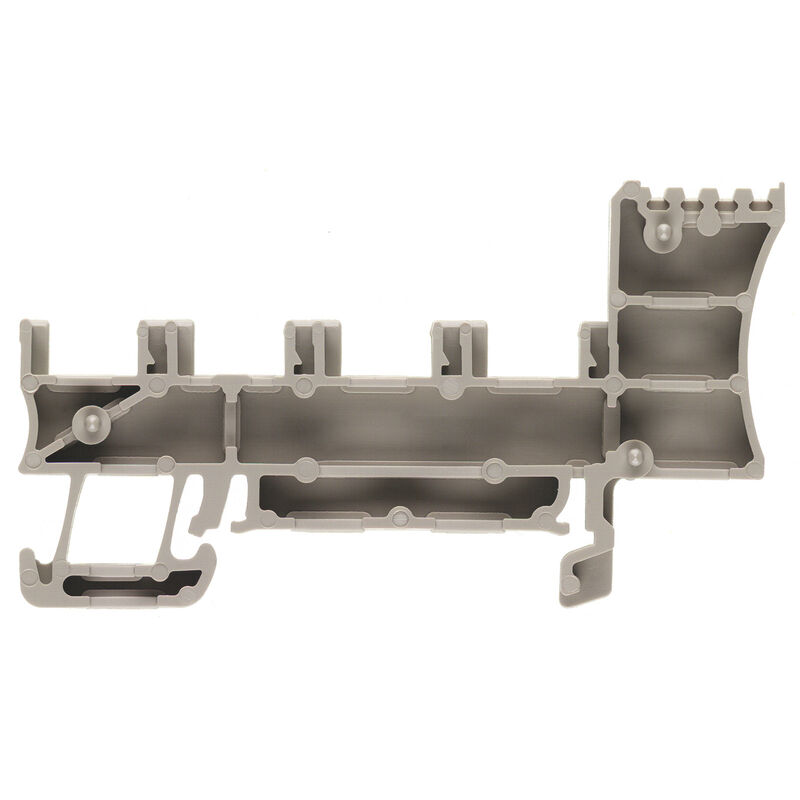

| Version | Potential distributor, Miscellaneous, 1.5 mm², Flange-mounted housing, Potential distributor |
| Order No. | 1676630000 |
| Type | ZPV 1.5 |
| GTIN (EAN) | 4008190460013 |
| Qty. | 100 Styk |
| Depth | 38,35 mm |
| Depth (inches) | 1,51 inch |
| Depth including DIN rail | 38,5 mm |
| Height | 67,8 mm |
| Height (inches) | 2,669 inch |
| Width | 5,1 mm |
| Width (inches) | 0,201 inch |
| Net weight | 3,33 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version |
Flange-mounted housing
Potential distributor |
| End cover plate required | Yes |
| Number of levels | 1 |
| Number of clamping points per level | 0 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| Explosion-tested version | No |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 1,5 mm² |
| Connection type, additional connection | Miscellaneous |
| Connection cross-section, stranded, max. | 1,5 mm² |
| Connection direction | top |
| Number of connections | 1 |
| Stripping length | 7 mm |
| Type of connection | Miscellaneous |
| Type of connection 2 | Tension-clamp connection |
| Wire connection cross section, finely stranded, max. | 1,5 mm² |
| Certificate No. (CSA) | 200039-1068678 |
| Wire cross section max. (CSA) | 14 AWG |
| Wire cross section min. (CSA) | 26 AWG |
| TS 15 offset | 32 mm |
| TS 32 offset | 38 mm |
| TS 35 offset | 38 mm |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Rated cross-section | 1,5 mm² |
| Rated voltage | 250 V |
| Rated DC voltage | 250 V |
| Rated current | 17,5 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1,83 mΩ |
| Rated impulse withstand voltage | 4 kV |
| Power loss in accordance with IEC 60947-7-x | 0,56 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 14 AWG |
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Field wiring max. (UR) | 14 AWG |
| Conductor size Field wiring min. (UR) | 26 AWG |
| Current size D (UR) | 10 A |
| Voltage size D (UR) | 300 V |
| Approval/Certificate/Document of Conformity |
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284531)
[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224826) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1676630000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1676630000) |
| User Documentation |
[Beipackzettel_ZIA.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35406)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-19 |
| ECLASS 14.0 | 27-25-01-19 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
