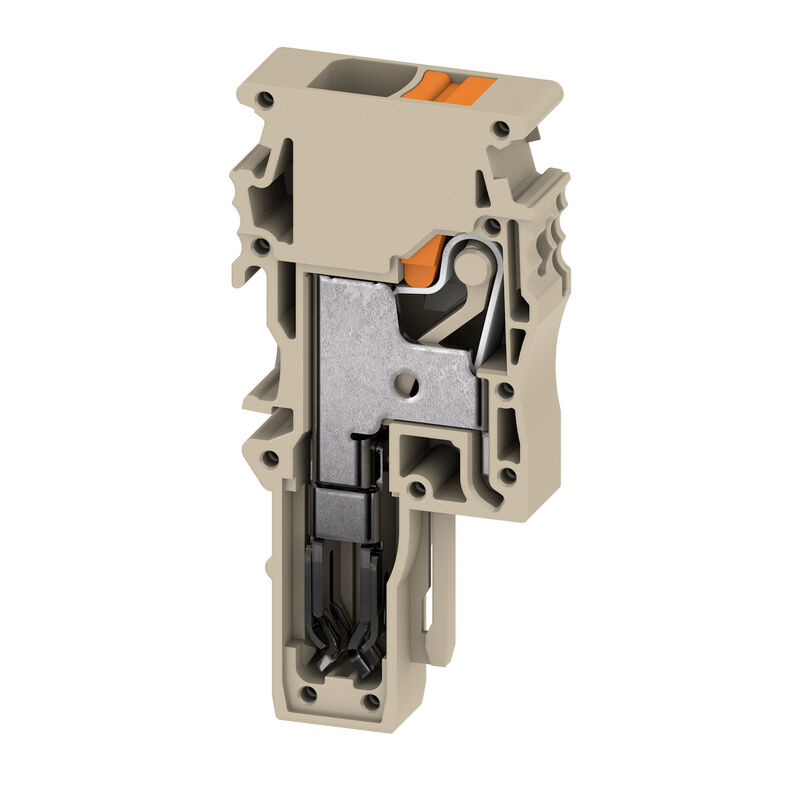

APG 6 L

APG 6 L

Product ID 2762370000
Gegevensblad downloaden 엔지니어링 지원
Verwante producten 325
Osvědčení Allgemeine Bestelldaten Dimensions and weights CSA rating data UL rating data Klassifikationen

Osvědčení

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

Allgemeine Bestelldaten

Order No.
2762370000
Art
APG 6 L
GTIN (EAN)
4064675021377
Qty.
50 items

Dimensions and weights

Net weight
7,755 g

CSA rating data

Certificate No. (CSA)
200039-80099474
Current size B (CSA)
29 A
Current size C (CSA)
29 A
Current size D (CSA)
5 A
Voltage size B (CSA)
300 V
Voltage size C (CSA)
300 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
8 AWG
Wire cross section min. (CSA)
22 AWG

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
8 AWG
Conductor size Factory wiring min. (cURus)
22 AWG
Conductor size Field wiring max. (cURus)
8 AWG
Conductor size Field wiring min. (cURus)
22 AWG
Current size B (cURus)
37 A
Current size C (cURus)
37 A
Current size D (cURus)
5 A
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V

Klassifikationen

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
