Properties

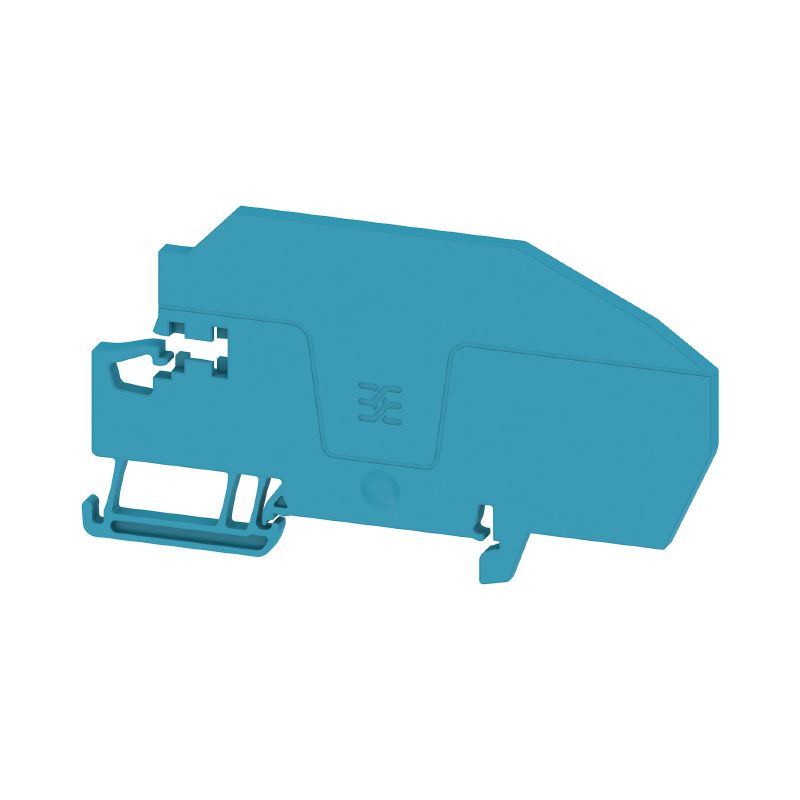

| Version | A-series, End plate |
| Order No. | 2668890000 |
| Type | APP ITB 16 BB 2C/NDT BL |
| GTIN (EAN) | 4064675266297 |
| Qty. | 20 items |
| Net weight | 5.13 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Snap-on | Yes |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_253728) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2668890000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2668890000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
Is accessory of
-
-
Item No.:2669140000Packaging unit:20 PC
Multi level installation terminal block, PUSH IN, 16 mm², 1000 V, 76 A, Number of connections: 2, Number of levels: 1, blue
-
Item No.:2668740000Packaging unit:20 PC
Multi level installation terminal block, PUSH IN, 16 mm², 800 V, 76 A, Number of connections: 2, Number of levels: 1, dark beige
-
Item No.:2668750000Packaging unit:20 PC
Multi level installation terminal block, PUSH IN, 16 mm², 800 V, 76 A, Number of connections: 2, Number of levels: 1, blue
-
Item No.:2668760000Packaging unit:20 PC
PE terminal, PUSH IN, 16 mm², 800 V, Number of connections: 2, Number of levels: 1, Green/yellow, orange
-
Item No.:2668770000Packaging unit:20 PC
Multi level installation terminal block, PUSH IN, 16 mm², 400 V, 76 A, Number of connections: 2, Number of levels: 1, blue
