KTB QL 916115 S4E3

KTB QL 916115 S4E3

Klippon TB QL (Terminal Box - Quarter Lock), Empty enclosure, stainless steel enclosure, Height: 914 mm, Width: 610 mm, Depth: 150 mm, Gland plates: Bottom, left, right, Basic material: Stainless steel 1.4404 (316L), electropolished, silver

Produkt ID 1200920000
Download datablad Engineering-support Produktdownloads
Tilbehør 19 Enkeltdele 1 Anvendte produkter 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Presse-étoupes gauche Collegamenti a vite a destra 케이블 글랜드, 상부/하부 Certificate numbers enclosure General information horizontal assembly Housing earth vertical assembly Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0558c6b5-320a-426b-b128-bc4bf291d8a5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/77c071f4-46bd-4b7f-8f24-3c61d44584d2/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d81b5803-4ec9-484a-960d-2db317df0189/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a6deaf49-74c9-4c46-950e-b505cc20e574/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/9c9311f3-ecc1-4734-91a1-2f3495436c72/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/6bcf1f04-895d-40c6-8f30-a01c9cbab475/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E243298

General ordering data

Version
Klippon TB QL (Terminal Box - Quarter Lock), Empty enclosure, stainless steel enclosure, Height: 914 mm, Width: 610 mm, Depth: 150 mm, Gland plates: Bottom, left, right, Basic material: Stainless steel 1.4404 (316L), electropolished, silver
Order No.
1200920000
Type
KTB QL 916115 S4E3
GTIN (EAN)
4032248983452
Qty.
1 Styk

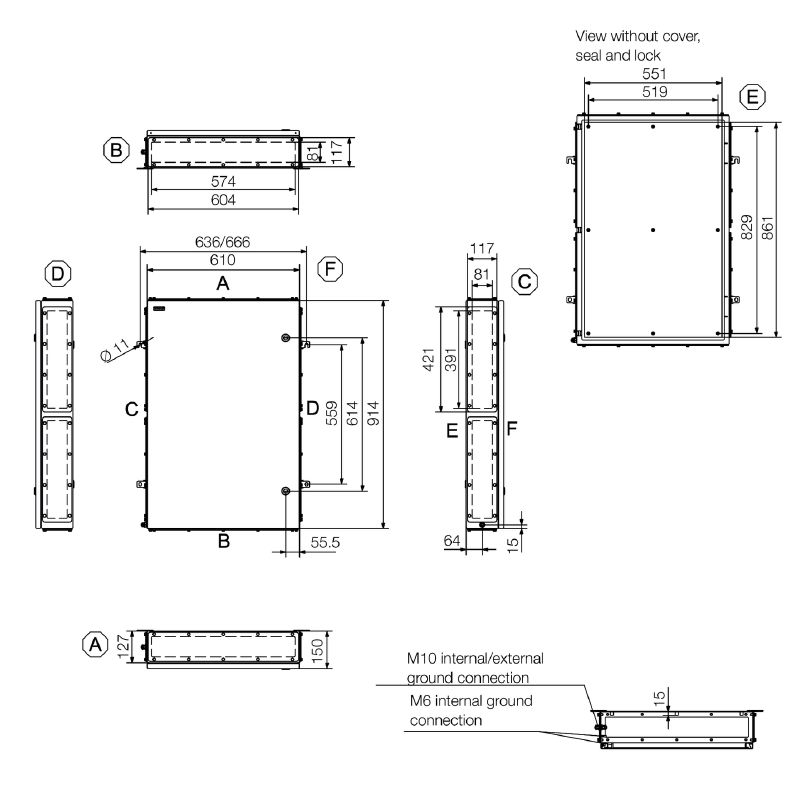

Dimensions and weights

Depth
150 mm
Depth (inches)
5,905 inch
Height
914 mm
Height (inches)
35,984 inch
Width
610 mm
Width (inches)
24,016 inch
Mounting dimension - height
559 mm
Mounting dimension - width
666 mm
Net weight
24.100 g

Temperatures

Operating temperature
-60 °C...135 °C
Note: room temperature (service)
Limited to IP66 protection when used in temperatures greater than 105 °C.

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
8d5fcdfe-c58e-44e1-a6b4-74d2bbccc9dd

Presse-étoupes gauche

M12
70
M16
40
M20
34
M25
14
M32
12
M40
10
M50
8
M63
0
M75
0

Collegamenti a vite a destra

M12
70
M16
40
M20
34
M25
14
M32
12
M40
10
M50
8
M63
0
M75
0

케이블 글랜드, 상부/하부

M12
53
M16
29
M20
25
M25
11
M32
9
M40
8
M50
6
M63
0
M75
0

Certificate numbers enclosure

Approval conditions
ATEX
CCoE
cULus
DNV
IECEX
INMETRO
KC
NEPSI
CCC
UL AEx Class Div.
UL AEx Class Zone
Attestation of Conformatiy No. (AoC)
DE PS261X 160309 001ISS06
Certificate No. (ATEX)
KEMA10ATEX0050
Certificate No. (CCOE)
P461058_1
Certificate no. (cULus)
E243298
Certificate No. (DNV)
TAE000013S
Certificate No. (IECEX)
IECEXKEM10.0020
Certificate no. (INMETRO)
IEX13.0008U
Certificate No. Electronic Box (NEPSI)
2020322303003289
Certificate no. empty enclosure (ATEX)
IBExU14ATEX1028 U
Certificate no. empty enclosure (ECAS)
21-09-25241/E21-09-053807
Certificate no. empty enclosure (IECEx)
IECEx IBE 14.0004U
Certificate no. empty enclosure (INMETRO)
LMP 21.0016U
Certificate no. Terminal Box (AEx)
E223792
Certificate no. Terminal Box (ATEX)
IBExU14ATEX1050
Certificate no. Terminal Box (IECEx)
IECEXIBE14.0013
Certificate no. Terminal Box (INMETRO)
LMP 21.0017
Certificate no. Terminal Box (KOSHA)
16-AV4BO-0245X
Certificate No. UL 508A
E223801
Certificate No. UL Haz.Loc.
E223792
Certificate No. UL Ord.Loc.
E243298
Certificate No. UL Terminal Box
E223792
Declaration of Conformatiy No. (DoC LVD)
DE PS261X 160412 001ISS03

General information

Abertura de acceso - altura
861 mm
Access opening: width
551 mm
AF size
10 mm
Areas of use
Zóna rizika výbuchu
Zpracovatelský průmysl
Ropný a plynárenský průmysl
Chemický průmysl
Na moři
Na souši
Carga máx.
223 kg
Dichtungsmaterial
Silicone
Dimension of box
800x1070x240
Dimensiones totales
925 x 691 x 160
Einbaubefestigung
4, 6 or 9 stud bolts M6 inner (female) thread
Flange plate mounting
M6 hexagonal head screws 10 SW
Gehäusebefestigung
4 soportes de montaje soldados con orificios de 11 mm (2 soportes ranurados y 2 soportes transversales)
Gland plates
inferior
izquierda
derecha
Hinweis: Schutzart
If used in temperature ranges above 105 °C, IP protection is limited to IP 66.
Impact resistance
Version ATEX 7 J
10 J version standard
Material thickness of cover
1,5 mm
Placa de fijación
Yes
Posición espárrago de tierra
Enclosure side C
Protection class (UL)
Type 3
Type 4X
Type 12
Protection degree
IP66
Provedení povrchu
electropolished
Provozní teplota, max.
135 °C
Provozní teplota, min.
-60 °C
Připojení víka
Quarter-turn fastener with slotted insert
Standardy
DIN EN 62208 - Empty enclosure standard
DIN EN 61373 Class 1B**
DIN EN 15085-2
EN 60079-0
EN 60079-7
EN 60079-31
IEC 60079-0
IEC 60079-7
IEC 60079-31
Tloušťka materiálu příruby
3 mm
Tloušťka materiálu skříně
1,5 mm
Werkstoff
Stainless steel 1.4404 (316L)
Ángulo de abertura de la tapa
130 °

horizontal assembly

Number of DIN rails and terminals (10 mm², horizontal)
6x52
WDU 16 / ZDU 16
5x43
WDU 2,5 / ZDU 2,5 / IDU 2,5
8x102
WDU 35 / ZDU 35
4x32
WDU 4 / ZDU 4
7x85
WDU 6 / ZDU 6
7x64

Housing earth

Earth, enclosure, internal
Welded-on M6 stainless-steel earth stud in enclosure body and lid.

vertical assembly

WDU 10 / ZDU 10
3x82
WDU 16 / ZDU 16
3x68
WDU 2,5 / ZDU 2,5 / IDU 2,5
5x161
WDU 35 / ZDU 35
2x51
WDU 4 / ZDU 4
4x135
WDU 6 / ZDU 6
4x102

Classifications

ETIM 8.0
EC002503
ETIM 9.0
EC002503
ETIM 10.0
EC002503
ECLASS 14.0
27-18-05-02
ECLASS 15.0
27-18-05-02
