SAI-10Z-VPUT-4A-M08L-PNP
SAI-10Z-VPUT-4A-M08L-PNP
Drawing
SAI-10Z-VPUT-4A-M08L-PNP
Wiring diagram
SAI-10Z-VPUT-4A-M08L-PNP
Pole scheme
Socket

SAI-10Z-VPUT-4A-M08L-PNP

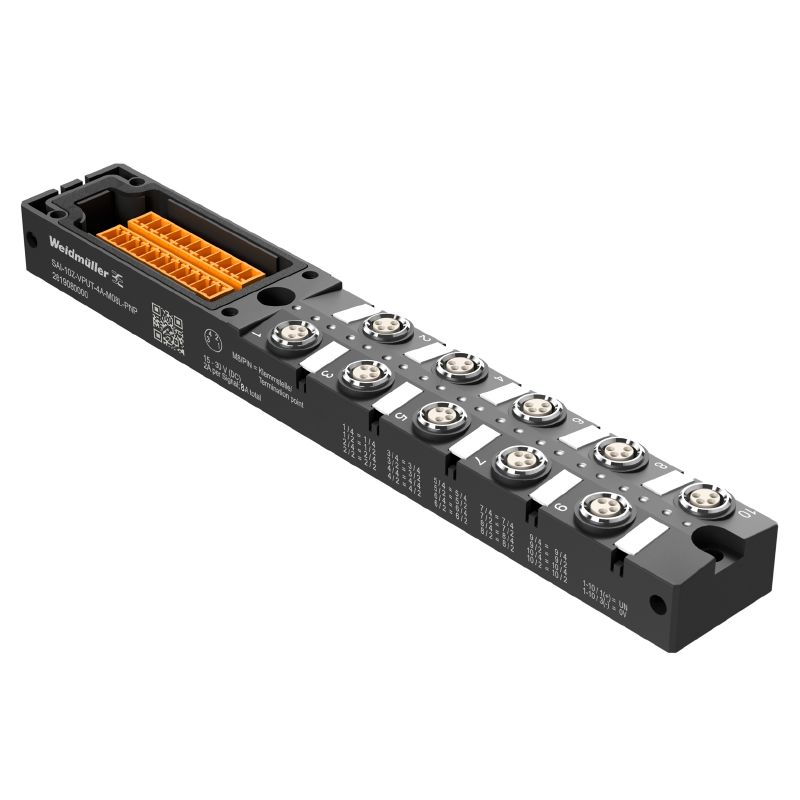

Interfacce passive per sensori e attuatori, M8, LED: Sì, Numero di poli: 4, Numero prese di contatto: 10

Item No. 2819080000
Download data sheet Mérnöki támogatás Pobieranie produktów
Tillbehör 3 Använda produkter 16
Approvals Dati generali per l’ordinazione Dimensions and weights Temperatures Termékek környezetvédelmi megfelelősége Connection data Electrical data General technical data Material data Technical data cable Классификации

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

Dati generali per l’ordinazione

Version
Interfacce passive per sensori e attuatori, M8, LED: Sì, Numero di poli: 4, Numero prese di contatto: 10
Order No.
2819080000
Type
SAI-10Z-VPUT-4A-M08L-PNP
GTIN (EAN)
4064675330301
Qty.
1 items

Dimensions and weights

Net weight
10 g

Temperatures

Operating temperature
-25 - 80°C

Termékek környezetvédelmi megfelelősége

RoHS Compliance Status
Conforme senza esenzione
REACH SVHC
No SVHC above 0.1 wt%

Connection data

Clamping range, min.
0.08 mm²
Clamping range, max.
1.5 mm²
Distributor outlet
Hood distributor lower part
Type of connection
PUSH IN

Electrical data

Rated voltage, min.
15 V
Rated voltage, max.
30 V
Max. current-carrying capacity per slot
4 A
Total current
6 A
Current per signal
2 A
Electrical isolation available
No

General technical data

Protection degree
IP67
Number of poles
4
Number of contact sockets
10
Connection thread
M8
Pollution severity
3
Fire behaviour
V-0
LED
Yes
LED initiator
Yes
LED colour for indicating operation
green
LED colour for I/O function
yellow

Material data

Material O-Ring
FKM
Housing main material
PBT
Material of distributor
플라스틱
Housing colour
black (similar to RAL 9005)
Hood sealing material
FKM
Screw socket
Nickel-plated CuZn
Contact material
CuZn
Contact surface
Gold-plated
Contact carrier material
PBT (UL 94 V0)

Technical data cable

Number of poles
4
Suitable for cable carriers
No

Классификации

ETIM 8.0
EC003558
ETIM 9.0
EC003558
ETIM 10.0
EC003558
ECLASS 14.0
27-44-01-11
ECLASS 15.0
27-44-01-11
