CH-W-S-A11-S-E

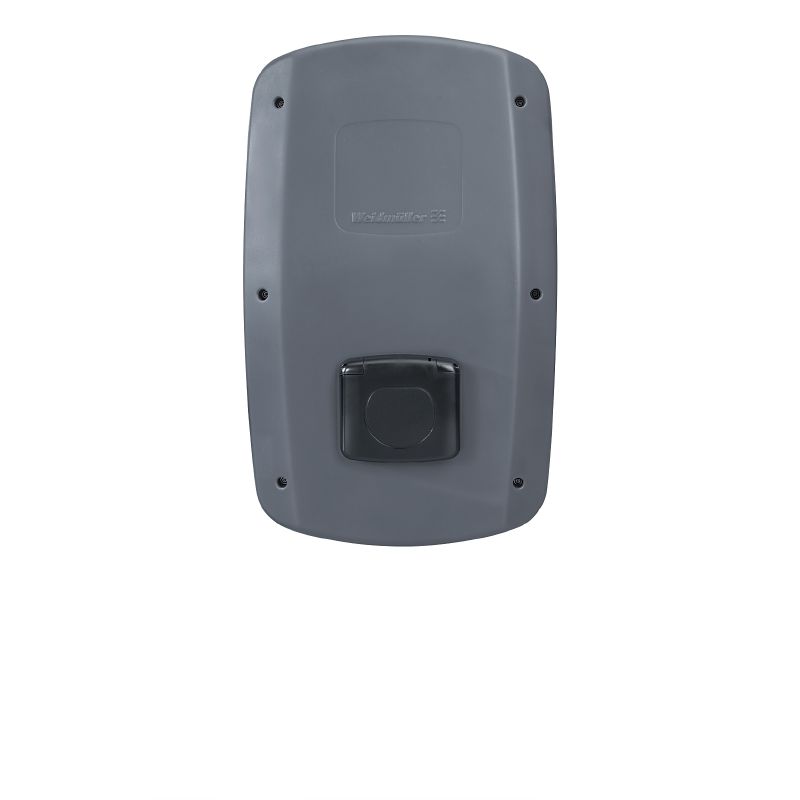

Wallbox, max. charging capacity of 11 kW @ 3-phase (400 V) grid connection, max. current 16 A, Type 2 socket outlet, Mobile App

Item No. 2863070000

Properties

General ordering data

Version	Wallbox, max. charging capacity of 11 kW @ 3-phase (400 V) grid connection, max. current 16 A, Type 2 socket outlet, Mobile App
Order No.	2863070000
Type	CH-W-S-A11-S-E
GTIN (EAN)	4064675595502
Qty.	1 items

Dimensions and weights

Depth	167 mm
Depth (inches)	6.575 inch
Height	433 mm
Height (inches)	17.047 inch
Width	268 mm
Width (inches)	10.551 inch
Net weight	3,600 g

Temperatures

Storage temperature	-40 °C...70 °C
Operating temperature	-30 °C...50 °C
Humidity	5 - 95% rel. humidity

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1 Potassium perfluorobutane sulfonate 29420-49-3
SCIP	d677010f-3c13-4196-b022-f62e8f2ef6a2

System requirements

Type of communication to vehicle	Control Pilot (CP) Proximity Pilot / Plug Present (PP)
Protection degree	IP54

Material data

Max. relative humidity during storage	95 %
Operating temperature, max.	50 °C
Operating temperature, min.	-30 °C
Storage temperature, max.	70 °C
Storage temperature, min.	-40 °C

Performance specification

Performance specification	Number of phases input: 3 Input voltage type: AC Input voltage: 400 V Input current, max.: 16 A Charging power, max: 11 kW Adjustment accuracy: 1 A Charging current adjustable: Yes Charging current, min: 6 A
Performance specification	max. charging capacity of 11 kW @ 3-phase (400 V) grid connection, max. current 16 A

System requirements

Connection system	Type 2 socket outlet
Type of communication to vehicle	Control Pilot (CP) Proximity Pilot / Plug Present (PP)
Charge mode	Mode 3
Protection class	I
Surge voltage category	III
Pollution severity	3

Features

Charging data exportable	No
Protection degree	IP54
Type of status indicator	RGB LED
Welding detection	Yes
Failure shutdown	Yes
Failure shutdown method	All-pole
DC - residual current detection integrated	Yes
DC - residual current	6 mA
Type of residual current detection to be provided by the installation	RCD Type A
User authentification	Yes
Mobile App available	Yes
User authentification type	Mobile App
Energy measurement integrated	No
Load management integrated	No
Communication integrated	Yes
Supported protocols	Modbus RTU Modbus TCP

Interfaces

Wifi frequency	2,4 GHz
Wi-Fi Standard	802.11 b/g/n
Bluetooth module	Bluetooth Low Energy
Ethernet ports	1
Digital inputs	1 (12 V / 6 mA)
Digital outputs	1 (12 V / 100 mA)
Type of protocol of serial interface	RS485

Assembly

Installation

Wall mounting
Stand Mounting

Included in delivery

Drilling template
Instruction sheet
Mounting screws
Assembly dowels

Housing

Operating altitude	≤ 3000 m
Housing main material	PC
Protection degree	IP54
Colour	black Anthracite grey
Impact resistance	IK10 in accordance with IEC 62262

Approvals and norms

Approvals

IEC 61851-1
IEC 61851-21-2
EN 62368-1
EN 55011
IEC 62196-1
IEC 62196-2
EN 50620
EN 301 489-1
EN 301 908-1
EN 301 511
EN 300 328
EN 300 330 v.2.1.1

Connection data (supply cable)

Conductor cross-section, max.

16 mm²

Downloads

Approval/Certificate/Document of Conformity	[CE declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_293669) [Warranty Weidmüller e-mobility products](https://mdcop.weidmueller.com/mediadelivery/asset/900_311435) [Gewährleistung Weidmüller e-mobility Produkte](https://mdcop.weidmueller.com/mediadelivery/asset/900_311436) [Self declaration test certificates AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_311494) [Selbsterklärung Testzertifikate AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_311495)
Engineering Data	[Installationsvideo AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_269640) [Installation Video AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_274236) [AC SMART Modbus registers](https://mdcop.weidmueller.com/mediadelivery/asset/900_293656) [Application notes -- Use of an external Modbus TCP/RTU tag list (DE, EN)](https://mdcop.weidmueller.com/mediadelivery/asset/900_301824) [3D Model](https://mdcop.weidmueller.com/mediadelivery/asset/900_313533)
Software	[Firmware -- Current Bluetooth Firmware AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_293013) [Firmware -- Current Firmware AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_293014) [Firmware -- Current WiFi Firmware AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_293015) [Firmware -- Archive Firmware files AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_293016) [Firmware -- Release notes Current firmware AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_293638) [Firmware -- Combined Firmware Package AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_314433)
Technical Documentation	[Abnahmeprotokoll AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_278407)
Tender specification	[Ausschreibungstext](https://mdcop.weidmueller.com/mediadelivery/asset/900_290339) [Tender text](https://mdcop.weidmueller.com/mediadelivery/asset/900_290353)
User Documentation	[Broschüre Wallbox AC SMART, AC Ladekabel, Basiskomponenten](https://mdcop.weidmueller.com/mediadelivery/asset/900_269720) [Brochure EV charging box AC SMART, AC charging cables, Basic components](https://mdcop.weidmueller.com/mediadelivery/asset/900_269721) [MANUAL_AC SMART (SV)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304027) [MANUAL_AC SMART (CS)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304028) [MANUAL_AC SMART (HU)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304165) [Instructionsheet_AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_281463) [MANUAL_AC SMART (DE)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304020) [MANUAL_AC SMART (EN)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304021) [MANUAL_AC SMART (FR)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304022) [MANUAL_AC SMART (IT)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304023) [MANUAL_AC SMART (ES)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304024) [MANUAL_AC SMART (NL)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304025) [MANUAL_AC SMART (NO)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304026)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002883
ETIM 7.0	EC002883
ETIM 8.0	EC002883
ETIM 9.0	EC002883
ECLASS 9.0	27-14-47-01
ECLASS 9.1	27-14-47-01
ECLASS 10.0	27-14-47-01
ECLASS 11.0	27-14-47-01
ECLASS 12.0	27-14-47-01
ECLASS 13.0	27-14-47-01

Approvals
