Properties

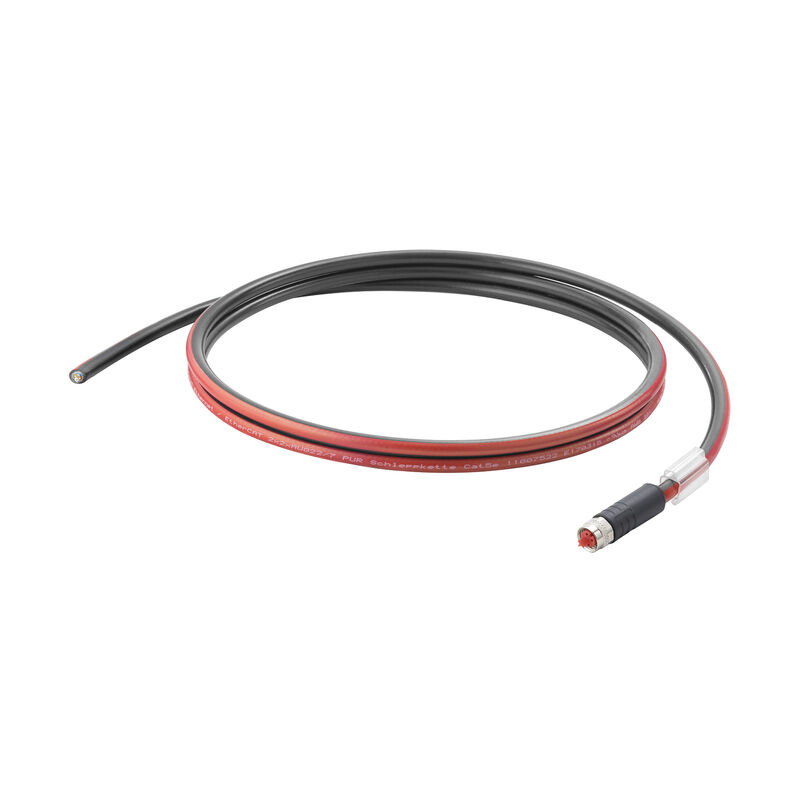

| Version | Dragline cable, M8 P-code - IP67 straight socket, Open, Cat. 5e, PUR, 30 m |
| Order No. | 2717740300 |
| Type | IE-C5DE4UP0300PSSXXX-E |
| GTIN (EAN) | 4050118778861 |
| Qty. | 1 items |
| Length | 30 m |
| Length (inches) | 1,181.102 inch |
| Net weight | 1,845 g |
| Operating temperature | -40 °C...80 °C |
| REACH SVHC | Lead 7439-92-1 |
| Category | Cat. 5e |
| Connector left | M8 P-code - IP67 straight socket |
| Connector right | Open |
| Material sheath | PUR |
| Product type | Dragline cable |
| Sheathing colour | black |
| Bending cycles | 2 Mio |
| Colour coding |
white
yellow blue orange |
| Halogen | halogen-free, according to IEC 60754 |
| Insulation | Polyolefin |
| Number of poles | 4 |
| Number of wires | 4 |
| Resistance to oils | in accordance with IEC 60811:404 |
| Resistance to spread of flame | Yes |
| Sheath material | PUR |
| Sheathing colour | black |
| Temperature range, moving | -30...70 °C |
| Temperature range, stationary | -40...80 °C |
| Test voltage: wire-wire-shield |
1 kV DC, 1 min
1000 Veff, 50 Hz, 1 min |
| Protection degree | IP67 |
| Plug left | M8, P-coded, IP67, female contact, straight, plug, Plastic, shielded |
| Plug right | free conductor end |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_293144) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002599 |
| ETIM 7.0 | EC002599 |
| ETIM 8.0 | EC002599 |
| ETIM 9.0 | EC002599 |
| ECLASS 9.0 | 27-06-03-08 |
| ECLASS 9.1 | 27-06-03-08 |
| ECLASS 10.0 | 27-06-03-08 |
| ECLASS 11.0 | 27-06-03-08 |
| ECLASS 12.0 | 27-06-03-08 |
| ECLASS 13.0 | 27-06-03-08 |
| ROHS | Conform |
