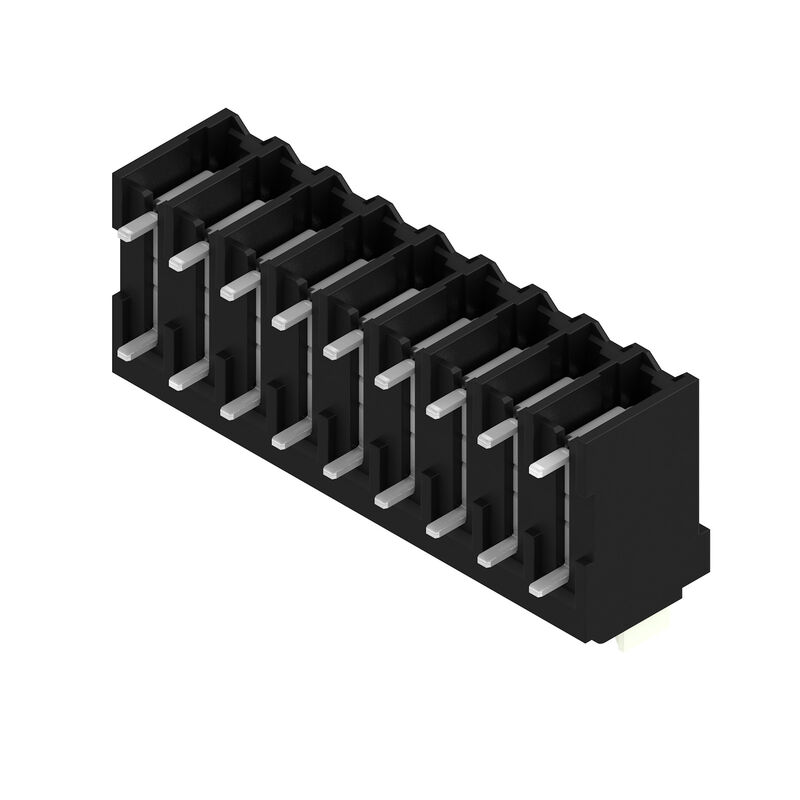

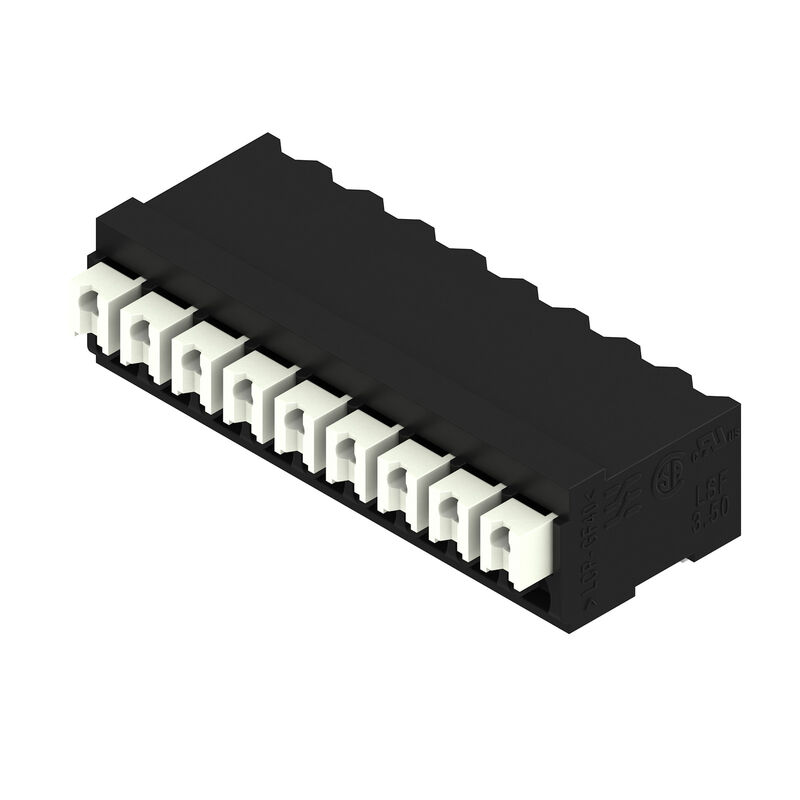

Printed circuit board terminals, 3.50 mm, Number of poles: 9, 90°, Solder pin length (l): 1.5 mm, black, PUSH IN with push button, Clamping range, max. : 1.5 mm², Tube

Product ID 1871040000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Verwante producten 53
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Testy typu Important note Klasyfikacje

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Zgodny
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N° certificato (cURus)
E60693

General ordering data

Versione
Printed circuit board terminals, 3.50 mm, Number of poles: 9, 90°, Solder pin length (l): 1.5 mm, black, PUSH IN with push button, Clamping range, max. : 1.5 mm², Tube
N. d’ordine
1871040000
Tipo
LSF-SMT 3.50/09/90 1.5SN BK TU
GTIN (EAN)
4032248448456
CPZ
17 adet
Product data
IEC: 320 V / 17.5 A / 0.2 - 1.5 mm²
UL: 300 V / 12 A / AWG 28 - AWG 14
Packaging
Tube

Dimensions and weights

Profondità
14,75 mm
奥行き（インチ）
0,581 inch
Posizione verticale
10 mm
Wysokość (cale)
0,394 inch
Najmniejsza wysokość montażu
8,5 mm
Larghezza
32,2 mm
Ширина (в дюймах)
1,268 inch
Peso netto
6,529 g

Temperatures

Continuous operating temp., max.
120 °C

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
Bez SVHC powyżej 0,1 wt%
Impronta carbonica di prodotto
  • Cradle to gate:
    0.08 kg CO2 eq.

System parameters

Famiglia prodotti
OMNIMATE Signal - series LSF
Tecnica di collegamento cavi
PUSH IN z przyciskiem aktywacji
Montaggio su circuito stampato
Połączenie lutowane THT/THR
Direzione d'uscita del conduttore
90°
Passo in mm (P)
3,5 mm
Passo in pollici (P)
0,138 "
Numero di poli
9
插针排数
1
assemblabile da parte del cliente
No
Number of rows
1
Lunghezza spina a saldare (l)
1,5 mm
Tolleranza della lunghezza del codolo a saldare
0 / -0.3 mm
Dimensioni del codolo a saldare
0.35 x 0.8 mm
솔더핀 크기 = d 공차
0 / -0.1 mm
Diametro foro di equipaggiamento (D)
1,1 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
폴당 용접 핀 수
2
Stripping length
8 mm
L1 in mm
28 mm
L1 in inches
1,102 "
Touch-safe protection acc. to DIN VDE 0470
IP 20
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Protection degree
IP20
Volume resistance
1.60 mΩ

Material data

Materiale isolante
LCP GF
Colori
black
操作要素の色
biały
Tabella dei colori (simile)
RAL 9011
Gruppo materiali isolanti
IIIa
Comparative Tracking Index (CTI)
≥ 175
Moisture Level (MSL)
1
阻燃等级符合 UL 94
V-0
Materiale dei contatti
Copper alloy
Struttura a strati del collegamento a saldare
4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

Campo di sezioni, min.
0,13 mm²
Campo di sezioni, max.
1,5 mm²
Sezione di collegamento cavo AWG, min.
AWG 28
Sezione di collegamento cavo AWG, max.
AWG 14
rigido, min. H05(07) V-U
0,2 mm²
rigido, max. H05(07) V-U
1,5 mm²
Flessibile, min. H05(07) V-K
0,2 mm²
Flessibile, max. H05(07) V-K
1,5 mm²
con terminale AEH con collare DIN 46 228/4, min.
0,25 mm²
con terminale AEH con collare DIN 46 228/4, max.
0,75 mm²
con terminale, DIN 46228 pt 1, min.
0,25 mm²
con terminale a norma DIN 46 228/1, max.
1,5 mm²
Conduttore innestabile
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025760000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025770000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0690700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9021040000
Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

標準に準拠して検査済
IEC 60664-1
IEC 60947-7-4
Corrente di dimensionamento, numero minimo di poli (Tu=20 °C)
17,5 A
Corrente di dimensionamento, numero massimo di poli (Tu=20 °C)
16 A
Corrente di dimensionamento, numero minimo di poli (Tu=40 °C)
17,5 A
Corrente di dimensionamento, numero massimo di poli (Tu = 40°C)
14 A
Tensione di dimensionamento con classe di sovratensione/grado di lordura II/2
320 V
Tensione di dimensionamento con classe di sovratensione/grado di lordura III/2
160 V
Tensione nominale con classe di sovratensione/grado di lordura III/3
160 V
Tensione di dimensionamento con classe di sovratensione/grado di lordura II/2
2,5 kV
Tensione di dimensionamento con classe di sovratensione/grado di lordura III/2
2,5 kV
Sovratensione nominale con classe di sovratensione/grado di lordura III/3
2,5 kV
단시간 내전류 저항
3 x 1s with 80 A

Rated data acc. to CSA

Istituto (CSA)
CSA
N° certificato (CSA)
200039-1664286
Tensione nominale (Gruppo B / CSA)
300 V
Tensione nominale (Gruppo D / CSA)
300 V
Corrente nominale (Gruppo B / CSA)
10 A
Corrente nominale (Gruppo D / CSA)
10 A
Sezione di collegamento cavo AWG, min.
AWG 28
Sezione di collegamento cavo AWG, max.
AWG 14
Riferimento ai valori di omologazione
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Istituto (cURus)
CURUS
N° certificato (cURus)
E60693
Tensione nominale (Gruppo B / UL 1059)
300 V
Tensione nominale (Gruppo D / UL 1059)
300 V
Corrente nominale (Gruppo B / UL 1059)
12 A
Corrente nominale (Gruppo D / UL 1059)
10 A
와이어 단면적, AWG, 최소
AWG 28
Sezione di collegamento cavo AWG, max.
AWG 14
Riferimento ai valori di omologazione
Specifications are maximum values, details - see approval certificate.

Packing

Imballaggio
Tube
Lunghezza VPE
556 mm
Larghezza VPE
24 mm
Altezza VPE
15 mm
Resistenza superficiale
Rs = 109 - 1012 Ω

Testy typu

Test: Durabilità delle siglature
  • Standard:
    DIN EN 60512-1-1 / 01.03
  • Test:
    znacznik początku, identyfikacja typu, raster, wytrzymałość
  • Ocena:
    dostępny
  • Test:
    znacznik zatwierdzenia UL
  • Ocena:
    na etykiecie opakowania
Test: Sezione bloccabile
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.14 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.14 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Test per danni ai conduttori e allentamento accidentale degli stessi
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Test di estrazione
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      H05V-U0.5
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed

Important note

Conformità IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Note
  • Na życzenie dostępne dodatkowe kolory przycisków
  • Siła załączająca suwaka maks. 40 N
  • Prąd znamionowy przy nominalnym przekroju i min. liczbie biegunów.
  • Końcówka tulejkowa z kołnierzem z tworzywa sztucznego według DIN 46228/4
  • Końcówka tulejkowa bez kołnierza z tworzywa sztucznego według DIN 46228/1
  • Symbol P na rysunkach oznacza raster
  • Dane pomiarowe odnoszą się do danego elementu Odcinki powietrzne i pełzające do innych elementów należy kształtować odpowiednio do obowiazujących w danym przypadku norm użytkowych.
  • Kształt zaciskowy „A” to tulejek kablowych z zalecaną zaciskarką PZ 6/5.
  • Długoterminowe składowanie produktu przy średniej temperaturze 50°C i maksymalnej wilgotności 70%, 36 miesięcy
    •

    Klasyfikacje

    ETIM 8.0
    EC002643
    ETIM 9.0
    EC002643
    ETIM 10.0
    EC002643
