POS 24VDC/230VAC 4A
POS 24VDC/230VAC 4A

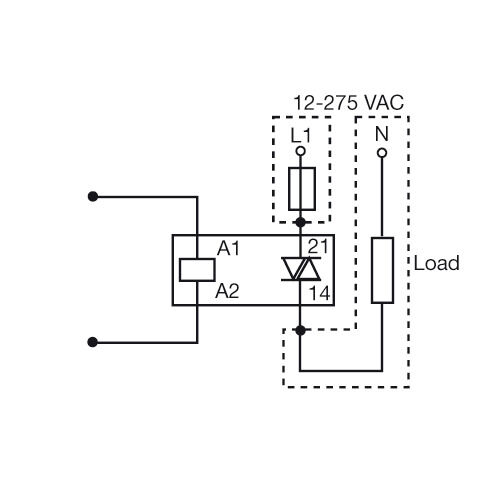

Wiring diagram

POS 24VDC/230VAC 4A

This product is discontinued.

Alternative product: 1127410000

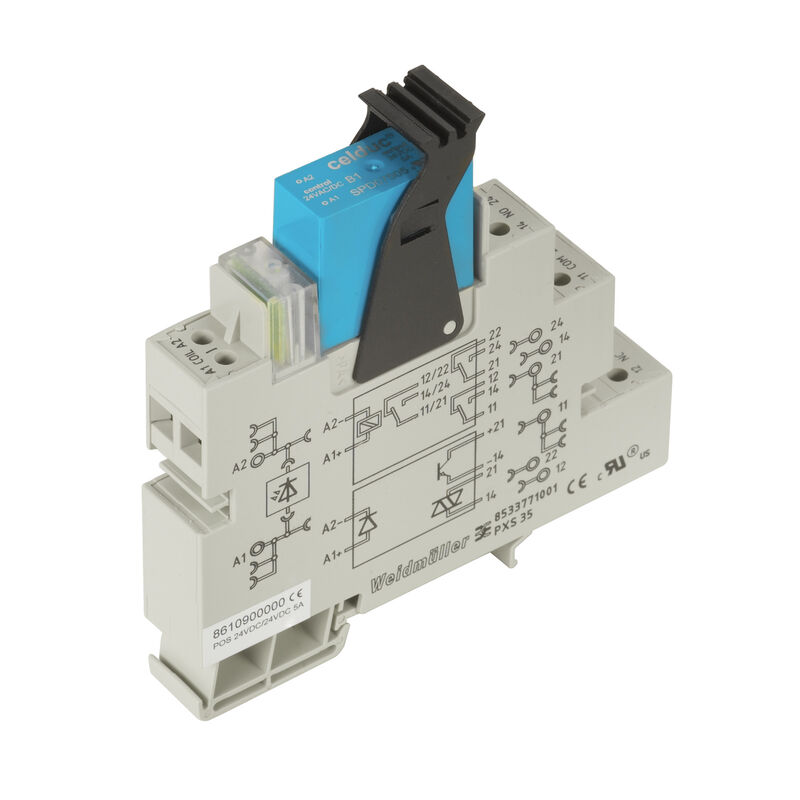

PLUGSERIES, Solid-state relay, Rated control voltage: 15 V DC...30 V DC , Rated switching voltage: 12...275 V AC, Continuous current: 4 A, Screw connection

Item No. 8610910000
Download data sheet Product Downloads Engineering Support
Accessories 2
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Control side Load side General data Insulation coordination Connection data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
PLUGSERIES, Solid-state relay, Rated control voltage: 15 V DC...30 V DC , Rated switching voltage: 12...275 V AC, Continuous current: 4 A, Screw connection
Order No.
8610910000
Type
POS 24VDC/230VAC 4A
GTIN (EAN)
4032248271719
Qty.
10 items
Delivery status
Discontinued
Last order date
/Date(1514674800000)/
Alternative product
[1127410000](~/p/1127410000)

Dimensions and weights

Depth
95 mm
Depth (inches)
3.74 inch
Height
92 mm
Height (inches)
3.622 inch
Width
15.3 mm
Width (inches)
0.602 inch
Net weight
75.15 g

Temperatures

Storage temperature
-40 °C...50 °C
Operating temperature
-40 °C...50
Humidity
40 °C / 93 % rel. humidity, no condensation

Probability of failure

MTTF
316 a

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
No SVHC above 0.1 wt%

Control side

Rated control voltage
15 V DC...30 V DC
Nominal control current
15 mA DC (±10%)
Power rating
360 mW
Status indicator
Green LED
Protective circuit
Free-wheeling diode

Load side

Rated switching voltage
12...275 V AC
Continuous current
4 A
Rated switching current
4 A
Switch-on delay
≤ 12 ms
Switch-off delay
20 ms
Voltage drop at max. load
≤ 1.1 V
Leakage current
< 1 mA
Short-circuit-proof
No
Contact type
1 NO contact (Triac (zero-cross switch))

General data

Mounting rail
TS 35
Colour
beige

Insulation coordination

Rated voltage
300 V
Pollution severity
2
Surge voltage category
III
Clearance and creepage distances for control side - load side
> 8 mm
Impulse withstand voltage
4 kV (1.2/50 µs)
Protection degree
IP20

Connection data

Wire connection method
Screw connection
Stripping length, rated connection
8 mm
Tightening torque, max.
0.7 Nm
Clamping range, rated connection
2.5 mm²
Clamping range, min.
0.5 mm²
Clamping range, max.
2.5 mm²

Classifications

ETIM 8.0
EC001504
ETIM 9.0
EC001504
ETIM 10.0
EC001504
ECLASS 14.0
27-37-16-04
ECLASS 15.0
27-37-16-04
