Properties
| Version | Y connector, M8 / M8 |
| Order No. | 1524720000 |

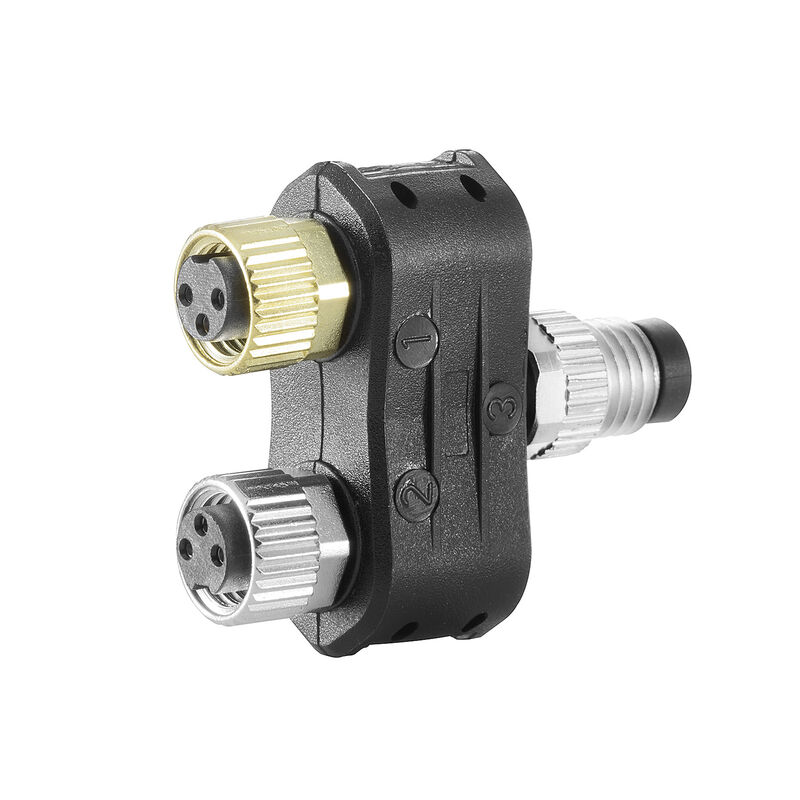

| Type | SAI-Y-4/3 M8-M8 |
| GTIN (EAN) | 4050118329926 |
| Qty. | 1 items |
| Net weight | 15 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | d9f8df28-a704-45a9-a1cb-1fe1442b5ef0 |
| Group outlet - plug-in connector | M8 pin |
| Single outlet 1 - plug-in connector | M8 socket |
| Single outlet 2 - plug-in connector | M8 socket |
| Tightening torque | M8: 0.5 - 0.6 Nm |
| Coding | M8 = none |
| Contact surface | Au (Gold) |
| Housing main material | PUR |
| Number of poles | 4 |
| Plugging cycles | ≥ 100 |
| Pollution severity | 3 |
| Protection degree | IP67 |
| Rated current | 4 A |
| Rated voltage | 24 V |
| Shield connection | No |
| Temperature range of housing | -25…+85 °C |
| Connector standard | IEC 61076-2-104 |
| Coding | M8 = none |
| Conductor O.D. | - |
| Connection thread | M8 / M8 |
| Contact surface | Au (Gold) |
| Housing main material | PUR |
| Number of poles | 4 |
| Plugging cycles | ≥ 100 |
| Pollution severity | 3 |
| Protection degree | IP67 |
| Rated current | 4 A |
| Rated voltage | 24 V |
| Shield connection | No |
| Temperature range of housing | -25…+85 °C |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_181272) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1524720000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002925 |
| ETIM 7.0 | EC002925 |
| ETIM 8.0 | EC002925 |
| ETIM 9.0 | EC002925 |
| ECLASS 9.0 | 27-44-01-06 |
| ECLASS 9.1 | 27-44-01-06 |
| ECLASS 10.0 | 27-44-01-06 |
| ECLASS 11.0 | 27-44-01-06 |
| ECLASS 12.0 | 27-44-01-06 |
| ECLASS 13.0 | 27-44-01-06 |
| ECLASS 14.0 | 27-44-01-06 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E307231 |
