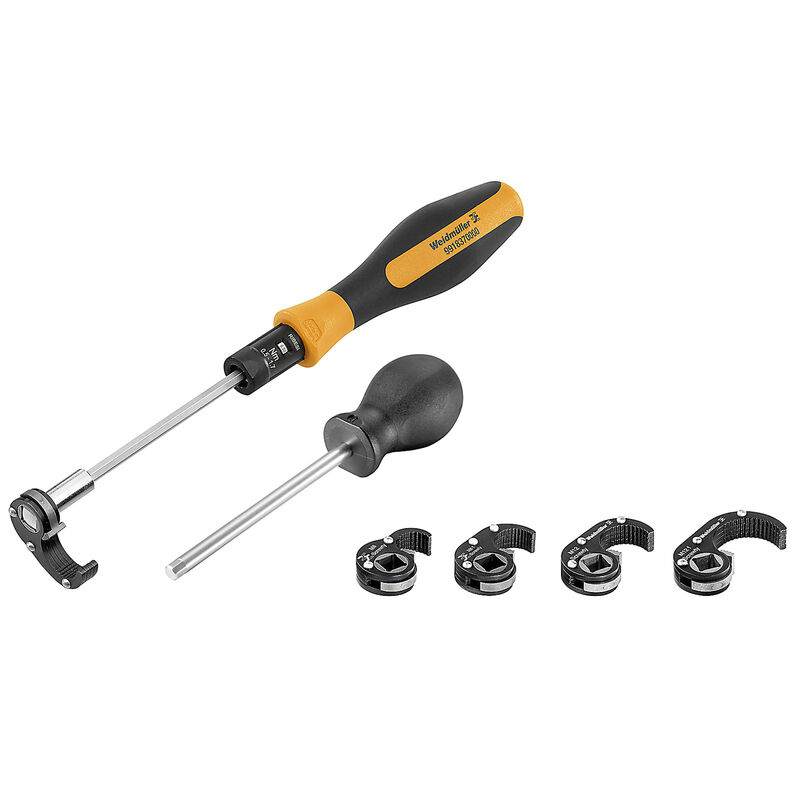

SCREWTY SET -DM

Cable gland tool for M8, M12 lines and connectors

Item No. 1920000000

Properties

General ordering data

Version	Cable gland tool for M8, M12 lines and connectors
Order No.	1920000000
Type	SCREWTY SET -DM
GTIN (EAN)	4032248436859
Qty.	1 items
Packaging	Cardboard box

Dimensions and weights

Net weight

312 g

Environmental Product Compliance

RoHS Compliance Status	Not affected
REACH SVHC	No SVHC above 0.1 wt%

Screwing tools

Torque setting, max.	1.7 Nm
Torque setting, min.	0.5 Nm

Important note

Product information

Included in delivery:

Torque screwdriver 0.5-1.7 Nm + Setting aid
Interchangeable blade 1/4 inch
Attachment M8 for moulded lines
Attachment M8F for customisable connectors
Attachment M12 for moulded lines
Attachment M12F for customisable connectors

Downloads

Product Change Notification	[20210319 Technical change to Screwty® torque screwdriver](https://mdcop.weidmueller.com/mediadelivery/asset/900_203154) [20210319 Technische Änderung zu Screwty® Drehmomentschraubendreher](https://mdcop.weidmueller.com/mediadelivery/asset/900_203155)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Classifications

ETIM 6.0	EC000149
ETIM 7.0	EC000149
ETIM 8.0	EC000149
ETIM 9.0	EC000149
ECLASS 9.0	21-04-50-03
ECLASS 9.1	21-01-90-90
ECLASS 10.0	21-04-50-03
ECLASS 11.0	21-01-90-90
ECLASS 12.0	21-01-90-90
ECLASS 13.0	21-01-90-90
ECLASS 14.0	21-01-90-90
