Tämä tuote ei ole pian enää saatavana.

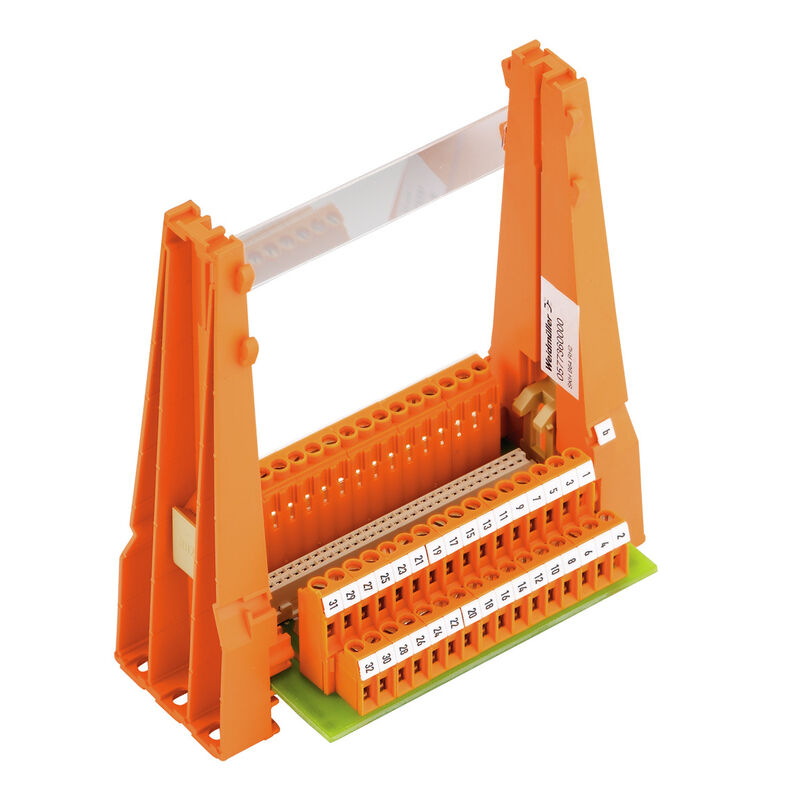

Interface, Plug-in connector, acc. to DIN 41612 female, B64

Tuotteen tunnus 0577360000
Lataa tietosivu Tuotelataukset Tekninen tuki
Lisävarusteet 3 Samankaltaiset tuotteet 11
Godkännanden General ordering data Mått och vikter Temperatures Environmental Product Compliance Connection data Märkdata Соответствие стандартам по изоляции (EN50178) Connection field Standard features Classifications

Godkännanden

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Interface, Plug-in connector, acc. to DIN 41612 female, B64
Order No.
0577360000
Type
SKH B64 RH2
GTIN (EAN)
4008190002800
Förp.
1 items
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1770678000000)/

Mått och vikter

Depth
144 mm
Depth (inches)
5,669 inch
Height
76 mm
Height (inches)
2,992 inch
Width
131 mm
Width (inches)
5,157 inch
Net weight
276 g

Temperatures

Storage temperature
-40...60 °C
Operating temperature
0...55 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Connection data

Connection (field side)
LP2N 5.08mm
Connection on control side
Plug-in connector, acc. to DIN 41612 female
Contact assembly
a and b
Design of the pluggable board
100x160 mm euro format for 19" racks
Number of poles (control side)
64-pole female
Type (control side)
B64

Märkdata

Jmenovité napětí
125V AC / 150V DC
Nennstrom pro Anschluss
1 A

Соответствие стандартам по изоляции (EN50178)

According to
DIN EN 50178
Rated insulation voltage
< 150 V AC
Surge voltage category
II
Nedsmutsningsgrad
2
Pulse voltage test (1,2/50μs)
1,5 kV
Napięcie probiercze izolacji AC
0,8 kV

Connection field

Clamping range, max.
6 mm²
Clamping range, min.
0,5 mm²
Flexible with sleeve, max.
2,5 mm²
Flexible with sleeve, min.
0,5 mm²
Flexible, max. H05(07) V-K
4 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Max. wire cross-section, AWG
AWG 12
Min. wire cross-section, AWG
AWG 26
Sleeve with plastic collar, max.
2,5 mm²
Solid, max. H05(07) V-U
6 mm²
Solid, min. H05(07) V-U
0,5 mm²
Stripping length
6 mm
Tightening torque, max.
0,6 Nm
Tightening torque, min.
0,5 Nm
Type of connection
Винтовое соединение

Standard features

Bauform
IEC603 B64

Classifications

ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
