Properties

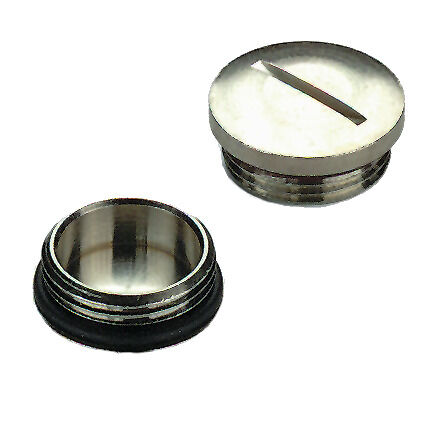

| Version | VPMS (blanking plug in brass), Blanking plug, in closed state, PG 9, 5 mm, Brass, nickel-plated |
| Order No. | 0294700000 |
| Type | VP 9-MS65 |
| GTIN (EAN) | 4008190005887 |
| Qty. | 100 items |
| Height | 8 mm |
| Height (inches) | 0.315 inch |
| Length | 8 mm |
| Length (inches) | 0.315 inch |
| Diameter | 18 mm |
| Wall thickness, min. | 0.5 mm |
| Wall thickness, max. | 4 mm |
| Net weight | 4.45 g |
| Operating temperature | -40 °C...100 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 0c0edf9f-b35a-4d1f-b8f0-99d4b22ac203 |
| Cable glands | PG |
| Diameter of sealing ring | 15.2 mm |
| External thread | PG 9 |
| Halogen | No |
| Head diameter | 18 mm |
| Length of thread | 5 mm |
| Material | Brass, nickel-plated |
| O-Ring | NBR |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Protection degree | IP68 - 5 bar (30 min.) |
| Sealing | NBR |
| Silicone | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_53476) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0294700000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0294700000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0294700000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000451 |
| ETIM 7.0 | EC000451 |
| ETIM 8.0 | EC000451 |
| ETIM 9.0 | EC000451 |
| ECLASS 9.0 | 27-14-44-25 |
| ECLASS 9.1 | 27-14-44-33 |
| ECLASS 10.0 | 27-14-44-25 |
| ECLASS 11.0 | 27-14-44-25 |
| ECLASS 12.0 | 27-14-08-05 |
| ECLASS 13.0 | 27-14-08-05 |
| Approvals |  |
| ROHS | Conform |
Is accessory of
-
Item No.:2703840000Packaging unit:1 PC
Standard distributor with current limiting, 4-channel distributor LIMITER, IP66, IP67, Trunk line M20, Branch line M16
-
Item No.:8714220000Packaging unit:1 PC
Standard distributor with current limiting, 4-channel distributor LIMITER, IP66
-
Item No.:8564060000Packaging unit:1 PC
Standard distributor, 1-way distributor, IP66, Branch line M12
-
Item No.:8564110000Packaging unit:1 PC
Standard distributor, 4-way distributor, IP66
-
Item No.:8714190000Packaging unit:1 PC
Standard distributor with current limiting, 8-channel distributor LIMITER, IP66, Branch line M12
-
Item No.:8714170000Packaging unit:1 PC
Standard distributor with current limiting, 2-channel distributor LIMITER, IP66, Branch line M12
-
Item No.:2703860000Packaging unit:1 PC
Standard distributor with current limiting, 3-channel distributor LIMITER, IP66, IP67, Trunk line M20
-
Item No.:8564070000Packaging unit:1 PC
Standard distributor, 2-way distributor, IP66, Branch line M12
-
Item No.:8564100000Packaging unit:1 PC
Standard distributor, 2-way distributor, IP66
-
Item No.:8714180000Packaging unit:1 PC
Standard distributor with current limiting, 4-channel distributor LIMITER, IP66, Branch line M12
-
Item No.:8564310000Packaging unit:1 PC
Standard distributor, 8-way distributor, IP66, Branch line M12
-
Item No.:8715260000Packaging unit:1 PC
Standard distributor with current limiting, 4-channel distributor LIMITER, IP66
-
Item No.:8564080000Packaging unit:1 PC
Standard distributor, 4-way distributor, IP66, Branch line M12
-
Item No.:8714160000Packaging unit:1 PC
Standard distributor with current limiting, 1-channel distributor LIMITER, IP66, Branch line M12
-
Item No.:8564090000Packaging unit:1 PC
Standard distributor, 1-way distributor, IP66
