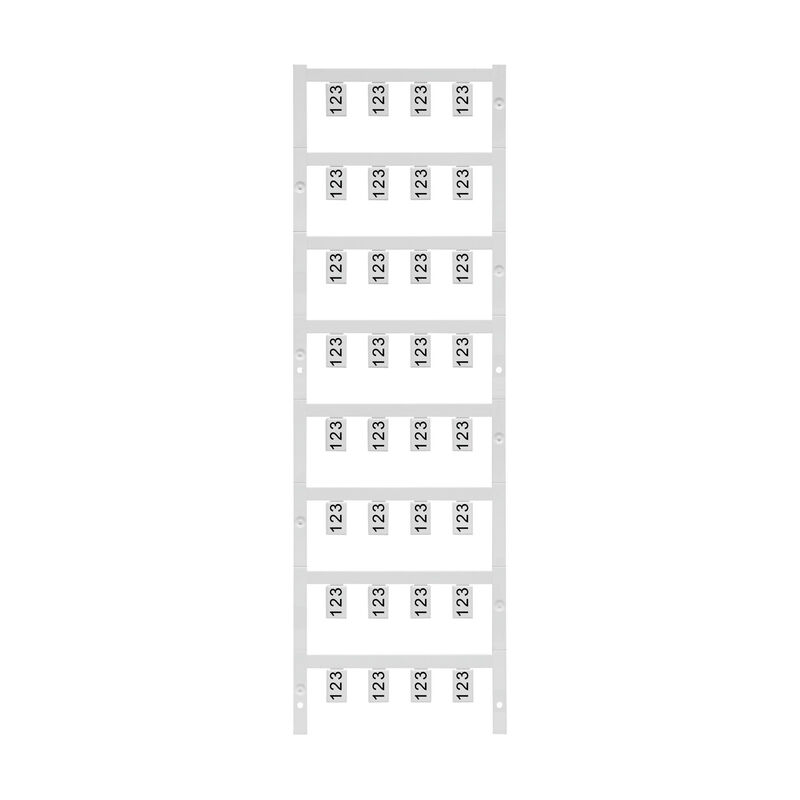

VT SF 4/12 MC SDR V0

VT SF 4/12 MC SDR V0

SlimFix, Conductor and cable markers, 3.6 - 6 mm, 12 x 5.7 mm, To customer specification

Item No. 1906820000
Download data sheet Product Downloads Engineering Support
Related products 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Caractéristiques générales Маркировочные элементы для проводов и кабелей Classifications

Approvals

ROHS
Conform

General ordering data

Version
SlimFix, Conductor and cable markers, 3.6 - 6 mm, 12 x 5.7 mm, To customer specification
Order No.
1906820000
Type
VT SF 4/12 MC SDR V0
GTIN (EAN)
4032248529193
Qty.
32 items

Dimensions and weights

Depth
6.1 mm
Depth (inches)
0.24 inch
Height
12 mm
Height (inches)
0.472 inch
Width
5.7 mm
Width (inches)
0.224 inch
Net weight
0.41 g

Temperatures

Operating temperature range
-50...120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.007 kg CO2 eq.

Caractéristiques générales

Advice label
Colore a seconda delle necessità del cliente (inviare file M-Print PRO)
Basic material
Polyamide 66
Colour
To customer specification
Colour of printing
черный
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Número de señalizadores por combinación
1 MultiCard = Conductor and cable markers
Operating temperature range
-50...120 °C
Operating temperature range, max.
120 °C
Operating temperature range, min.
-50 °C
Orientation of print
horizontal
Počet značek v balení
  • Form of supply:
    MultiCard
Printed characters
Requires M-Print PRO File
Printing method
MC Laser
Type of printing
To customer specification
UL 94 flammability rating
V-0
Velikost pole na označení
12 x 5.7 mm
Width
5.7 mm

Маркировочные элементы для проводов и кабелей

Conductor cross-section, max.
4 mm²
Conductor cross-section, min.
2.5 mm²
Conductor O.D.
3.6 - 6 mm
Conductor O.D., max.
6 mm
Conductor O.D., min.
3.6 mm
Cross-section for connected wire
2.5 - 4 mm²
Halogen
No

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
