Properties

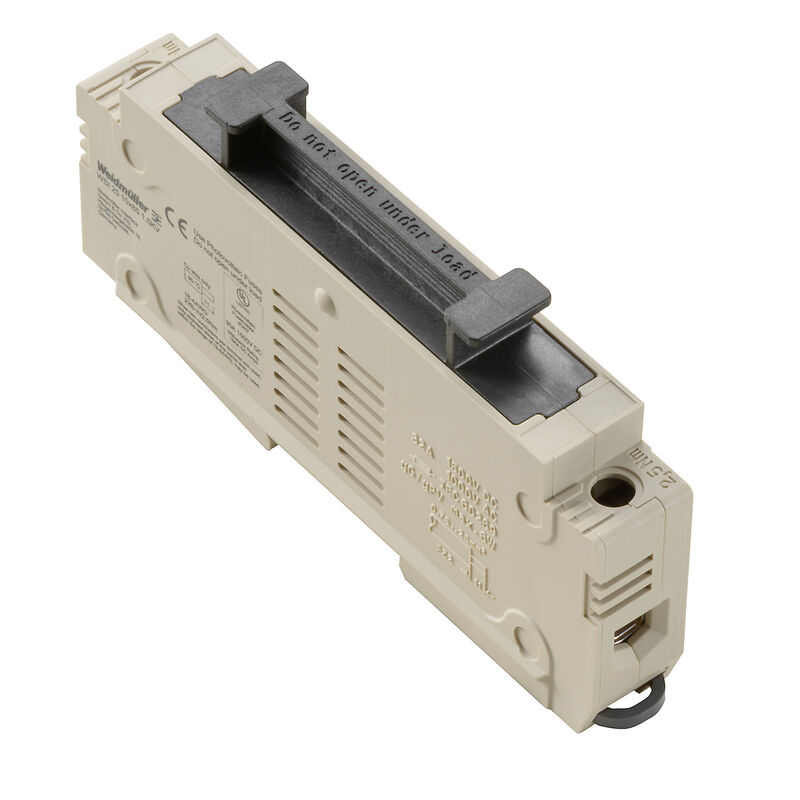

| Version | Fuse terminal, Screw connection, 25 mm², 1500 V, 32 A, max. 6.0 W for 10x85, 14x85 gPV, dark beige |
| Order No. | 2469360000 |
| Type | WSI 25 10X85 1.5KV |
| GTIN (EAN) | 4050118517965 |
| Qty. | 5 items |
| Delivery status | This article will no longer be available in the future. |
| Available until | 31.12.2021 |
| Alternative product | [4000002613](~/p/4000002613) |
| Depth | 65 mm |
| Depth (inches) | 2.559 inch |
| Height | 130 mm |
| Height (inches) | 5.118 inch |
| Width | 22.5 mm |
| Width (inches) | 0.886 inch |
| Net weight | 0.01 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 125 °C |
| Material | PA |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0.75 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 10 mm² |
| Explosion-tested version | No |
| Installation advice | TS 35 |
| Open sides | closed |
| Snap-on | No |
| Type of fixing | Snap-on |
| Type of mounting | Snap-on |
| With snap-in pegs | No |
| Blade size | Gr. PZ2 |
| Clampable conductor |
|
| Clamping range, max. | 25 mm² |
| Clamping range, min. | 0.75 mm² |
| Clamping screw | M 5 |
| Connection cross-section, stranded, max. | 25 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A7 |
| Number of connections | 2 |
| Stripping length | 11 mm |
| Tightening torque, max. | 2.5 Nm |
| Tightening torque, min. | 2 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 4 |
| Wire connection cross section AWG, min. | AWG 18 |
| Wire connection cross section, finely stranded, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 0.75 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.75 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1.5 mm² |
| Cartridge fuse |
max. 6.0 W for 10x85
14x85 gPV |
| Display | Without LED |
| Fuse holder (cartridge holder) | pluggable |
| Installation advice | TS 35 |
| Rail | TS 35 |
| Standards | IEC 60269-6 |
| Wire connection cross section AWG, max. | AWG 4 |
| Wire connection cross section AWG, min. | AWG 18 |
| Rated cross-section | 25 mm² |
| Rated voltage | 1,500 V |
| Rated voltage to adjoining terminal | 1,500 V |
| Rated AC voltage | 1,000 V |
| Rated DC voltage | 1,500 V |
| Rated current | 32 A |
| Current at maximum wires | 32 A |
| Standards | IEC 60269-6 |
| Volume resistance according to IEC 60947-7-x | 0.32 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 3.23 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (UL) | E355388 |
| Product information | Impulse voltage up to 12kV tested. |
| Approval/Certificate/Document of Conformity |
[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_103325)
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284530) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66148) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2469360000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2469360000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2469360000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000899 |
| ETIM 7.0 | EC000899 |
| ETIM 8.0 | EC000899 |
| ETIM 9.0 | EC000899 |
| ECLASS 9.0 | 27-14-11-16 |
| ECLASS 9.1 | 27-14-11-16 |
| ECLASS 10.0 | 27-14-11-16 |
| ECLASS 11.0 | 27-14-11-16 |
| ECLASS 12.0 | 27-14-11-16 |
| ECLASS 13.0 | 27-25-01-13 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UL) | E355388 |
