ZRH 1.5S/1
Product image

ZRH 1.5S/1

Tento výrobek již nebude k dispozici.

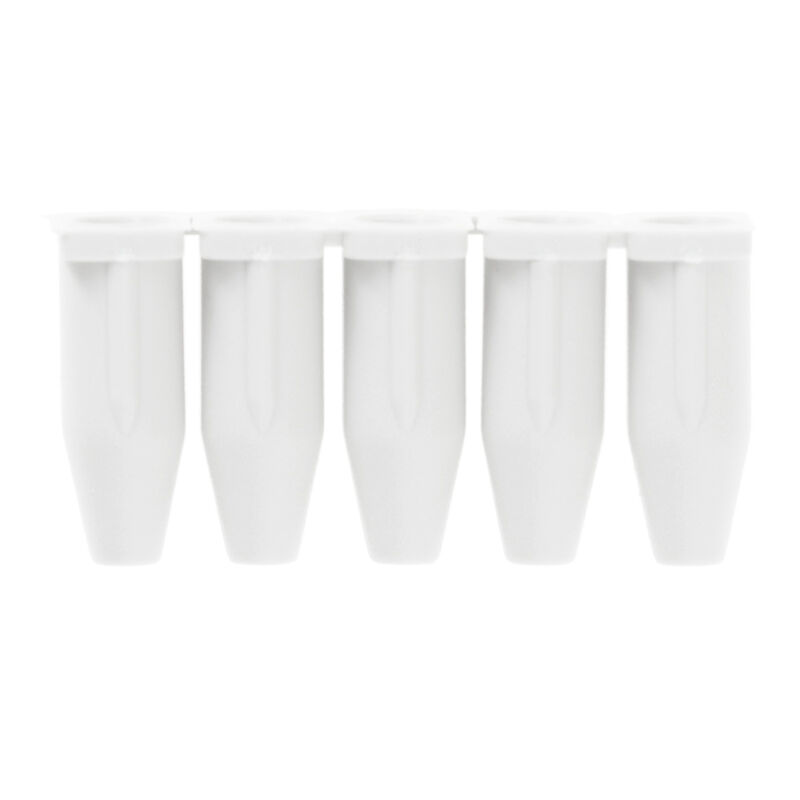

Accessories, Reducing sleeve

Produkt-ID 1781950000
Ladda ner datablad Tekninen tuki Tuotelataukset
Jest dodatkiem 20 Produkty pokrewne 7
Omologazioni General ordering data Dimensions and weights Temperatures Environmental Product Compliance Datos del material System specifications Additional technical data General Illustrations du produit Classificazioni

Omologazioni

ROHS
Conforme

General ordering data

Version
Accessories, Reducing sleeve
Order No.
1781950000
Type
ZRH 1.5S/1
GTIN (EAN)
4032248199525
VPE
500 Stück
Lieferstatus
Dieser Artikel ist demnächst nicht mehr lieferbar.
Datum der letzten Bestellung
/Date(1767135600000)/

Dimensions and weights

Depth
8,35 mm
Depth (inches)
0,329 inch
Height
17,5 mm
Hauteur (pouces)
0,689 inch
Width
4,55 mm
Width (inches)
0,179 inch
Nettogewicht
0,1 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Dauergebrauchstemperatur, max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC superiori a 0,1 wt%

Datos del material

Basic material
Wemid
Colour
grå
Brennbarkeitsklasse nach UL 94
V-0

System specifications

Version
For the terminals

Additional technical data

Explosion-tested version
No
Installation advice
Direct mounting
Type of fixing
insertado

General

Installation advice
Direct mounting

Illustrations du produit

Kép alcím-02
Come da figura

Classificazioni

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
