IE-PH-V04P-BP

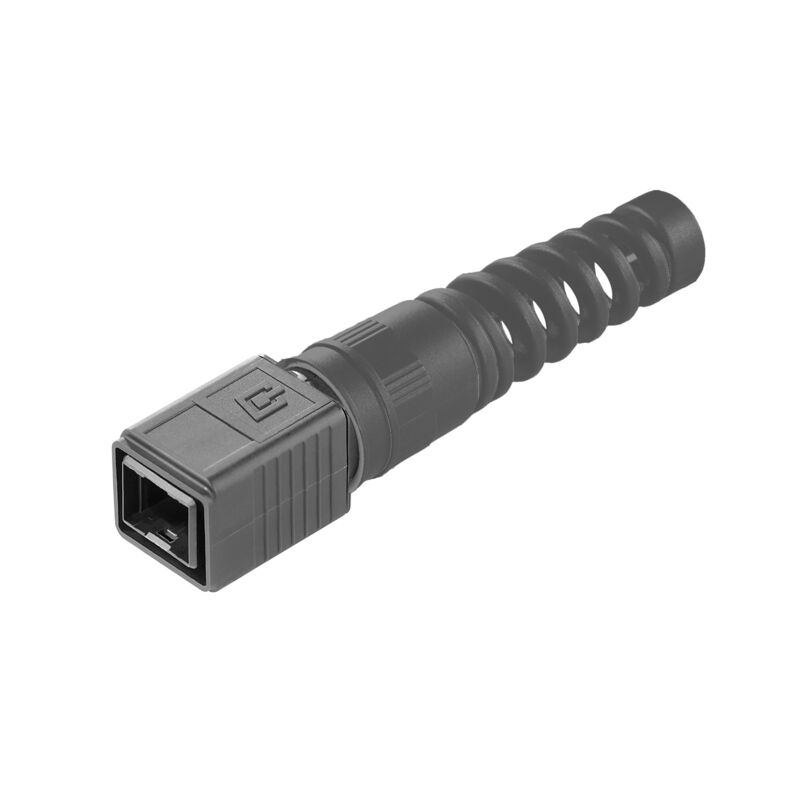

Empty enclosure, Plug housing, bending protection, Variant 4 to IEC 61076-3-106, IP67

Cikkszám 1962530000
Adatlap letöltése Mérnöki támogatás Termékletöltések
Tartozékok 6 Kapcsolódó termékek 5
승인 General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data General standards Classifications

승인

Approvals
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[Witryna UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E316369

General ordering data

Version
Empty enclosure, Plug housing, bending protection, Variant 4 to IEC 61076-3-106, IP67
Order No.
1962530000
Type
IE-PH-V04P-BP
GTIN (EAN)
4032248644667
Ilość
10 szt.

Dimensions and weights

Depth
108.7 mm
Depth (inches)
4,28 inch
Height
20.1 mm
Height (inches)
0,791 inch
Width
21.2 mm
Szerokość (cale)
0,835 inch
Masa netto
1.75 g

Temperatures

Operating temperature
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Colour
Miscellaneous
Housing main material
PA UL 94 V0
Plugging cycles
750
Protection degree
IP67

General standards

Certificate no. (cULus)
E316369
Connector standard
IEC 61076-3-106 Var. 4

Classifications

ETIM 8.0
EC001031
ETIM 9.0
EC001031
ETIM 10.0
EC001031
ECLASS 14.0
27-19-01-04
ECLASS 15.0
27-19-01-04
