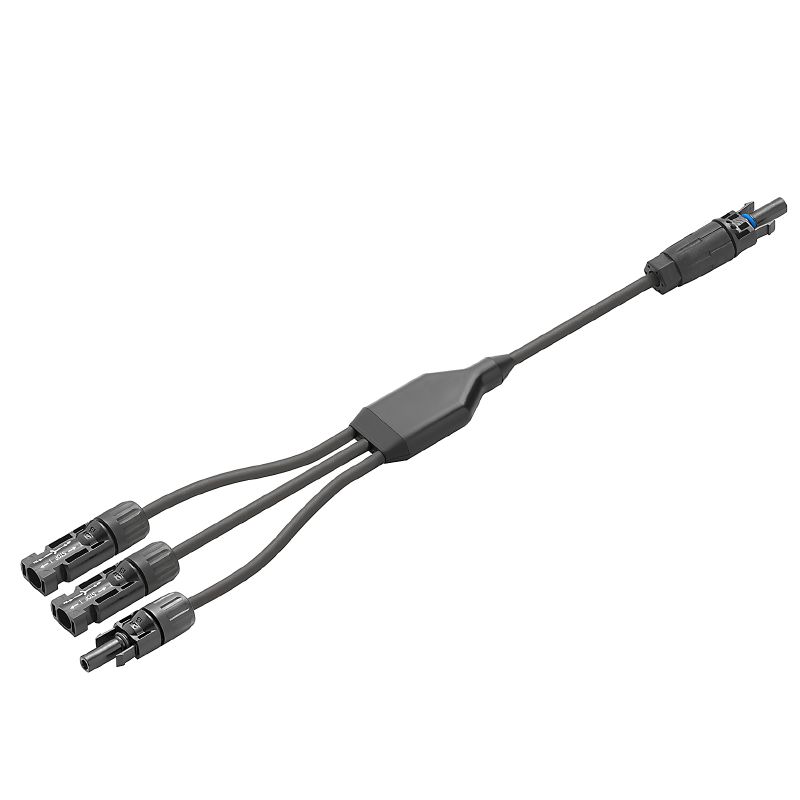

Photovoltaics, X-Connector Cable, 2x MC4 Male, 1x WM4 C Female, 1x MC4 Female, 6mm², 1000 V

Tuotteen tunnus 2814260000
Lataa tietosivu Product Downloads
On lisävaruste 6 Vastineet 6 On vastine kohteelle 6 Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Environmental Product Compliance PV cable harnessing Electrical characteristics Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Photovoltaics, X-Connector Cable, 2x MC4 Male, 1x WM4 C Female, 1x MC4 Female, 6mm², 1000 V
Order No.
2814260000
Type
PVHXM-M-W+XX06M+11
GTIN (EAN)
4064675298946
Qty.
1 items

Dimensions and weights

Net weight
117,4 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

PV cable harnessing

PV cable version
  • Cable side:
    left
  • Number:
    1
  • Cable length:
    160 mm
  • Cable colour:
    black
  • Cable cross section:
    6 mm²
  • Rated current:
    39 A
  • Inline fuse integrated:
    No
  • Version of cable end [In-Block):
    connector
  • Connector version:
    MC 4
  • Type of plug-in contact:
    male
  • Cable side:
    right 1
  • Number:
    1
  • Cable length:
    200 mm
  • Cable colour:
    black
  • Cable cross section:
    6 mm²
  • Rated current:
    39 A
  • Inline fuse integrated:
    No
  • Version of cable end [In-Block):
    connector
  • Connector version:
    MC 4
  • Type of plug-in contact:
    male
  • Cable side:
    right 2
  • Number:
    2
  • Cable length:
    200 mm
  • Cable colour:
    black
  • Cable cross section:
    6 mm²
  • Rated current:
    35 A
  • Inline fuse integrated:
    No
  • Version of cable end [In-Block):
    connector
  • Connector version:
    WM4 C
  • Type of plug-in contact:
    female
  • Cable side:
    right
  • Number:
    3
  • Cable length:
    200 mm
  • Cable colour:
    black
  • Cable cross section:
    6 mm²
  • Rated current:
    39 A
  • Version of cable end [In-Block):
    connector
  • Connector version:
    MC 4
  • Type of plug-in contact:
    female
Rated DC voltage
1 100 V
Wire cross-section
6 mm²

Electrical characteristics

Rated DC voltage
1 100 V

Classifications

ETIM 6.0
EC001576
ETIM 7.0
EC001576
ETIM 8.0
EC001576
ETIM 9.0
EC001576
ETIM 10.0
EC001576
ECLASS 9.0
27-06-04-02
ECLASS 9.1
27-06-91-90
ECLASS 10.0
27-06-04-02
ECLASS 11.0
27-06-04-02
ECLASS 12.0
27-06-04-02
ECLASS 13.0
27-06-04-02
ECLASS 14.0
27-06-04-02
ECLASS 15.0
27-06-04-02
