ADP-8/6-GR

ADP-8/6-GR

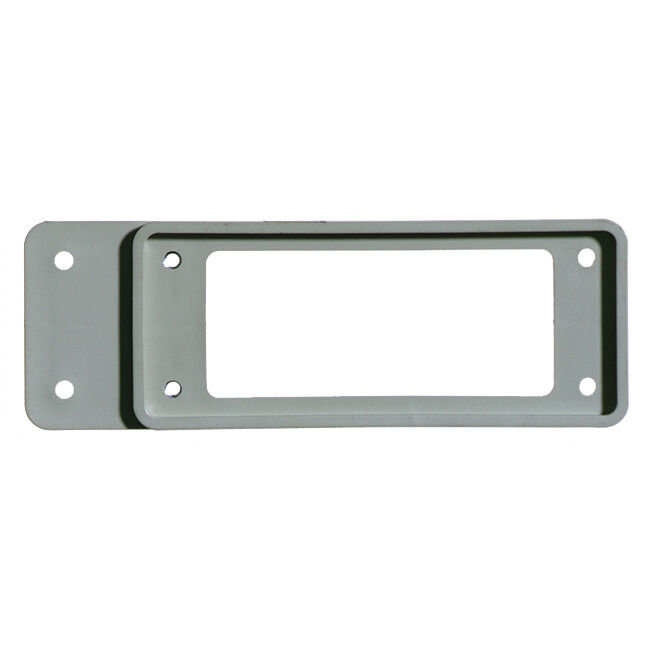

Heavy-duty connectors, Accessories, Adapter plate, Installation size: 8, Plastic, grey, 6

Ürün No. 1665030000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 3
Approvals General ordering data Dimensions and weights Environmental Product Compliance Classifications

Approvals

ROHS
Conform

General ordering data

Version
Heavy-duty connectors, Accessories, Adapter plate, Installation size: 8, Plastic, grey, 6
Order No.
1665030000
Type
ADP-8/6-GR
GTIN (EAN)
4008190421731
Qty.
10  adet

Dimensions and weights

Depth
150,5  mm
Depth (inches)
5,925  inch
Height
10  mm
Height (inches)
0,394  inch
Width
52  mm
Width (inches)
2,047  inch
Net weight
31  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Classifications

ETIM 6.0
EC002309
ETIM 7.0
EC002309
ETIM 8.0
EC002309
ETIM 9.0
EC002309
ETIM 10.0
EC002309
ECLASS 9.0
27-44-02-01
ECLASS 9.1
27-44-01-92
ECLASS 10.0
27-44-02-01
ECLASS 11.0
27-44-02-01
ECLASS 12.0
27-44-02-01
ECLASS 13.0
27-44-02-01
ECLASS 14.0
27-44-02-01
ECLASS 15.0
27-44-02-01
