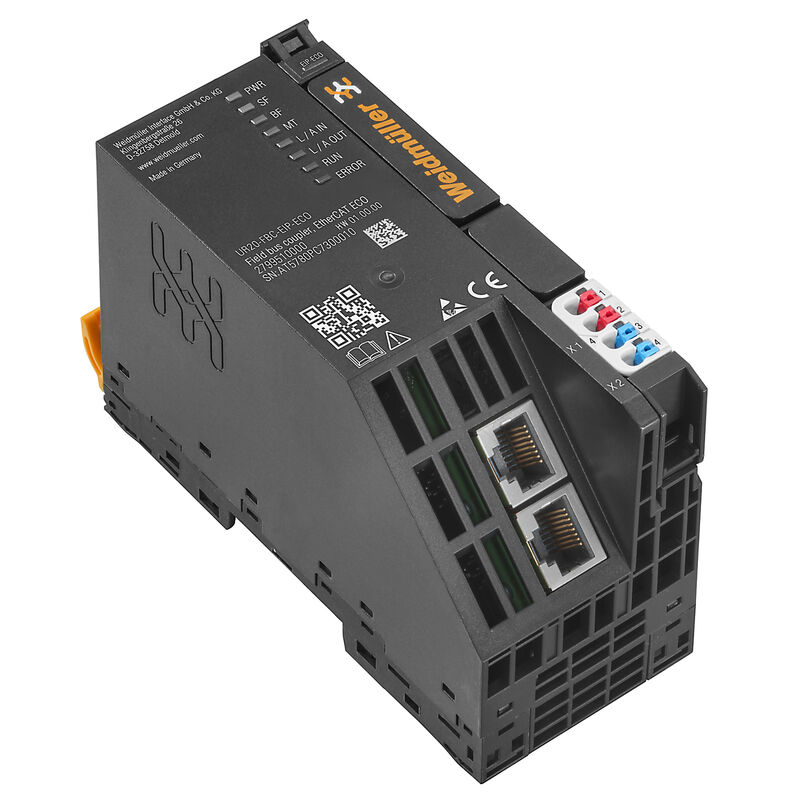

Properties
| Version | Remote I/O fieldbus coupler, IP20, Ethernet, EtherNet/IP |
| Order No. | 2799510000 |
| Type | UR20-FBC-EIP-ECO |
| GTIN (EAN) | 4064675261544 |
| Qty. | 1 items |
| Depth | 76 mm |
| Depth (inches) | 2.992 inch |
| Height | 120 mm |
| Height (inches) | 4.724 inch |
| Width | 52 mm |
| Width (inches) | 2.047 inch |
| Net weight | 247 g |
| Storage temperature | -40 °C ... +85 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC |
Lead 7439-92-1
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1 |
| SCIP | 82327f13-cd27-455a-ab5b-a62e1996dcf8 |
| Type of connection | PUSH IN |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.14 mm² |
| Wire cross-section, finely stranded, max. (AWG) | AWG 16 |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. | 1.5 mm² |
| Wire cross-section, solid, max. (AWG) | AWG 16 |
| Wire cross-section, solid, min. | 0.14 mm² |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Air humidity (operation) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air humidity (storage) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air humidity (transport) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2 |
| Air pressure (storage) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Air pressure (transport) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Rail | TS 35 |
| Shock | 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27 |
| Test voltage | 500 V |
| Vibration resistance |
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6 |
| Current consumption from Isys, typ. | 61 mA |
| Feed current for IIN (input current path) |
|

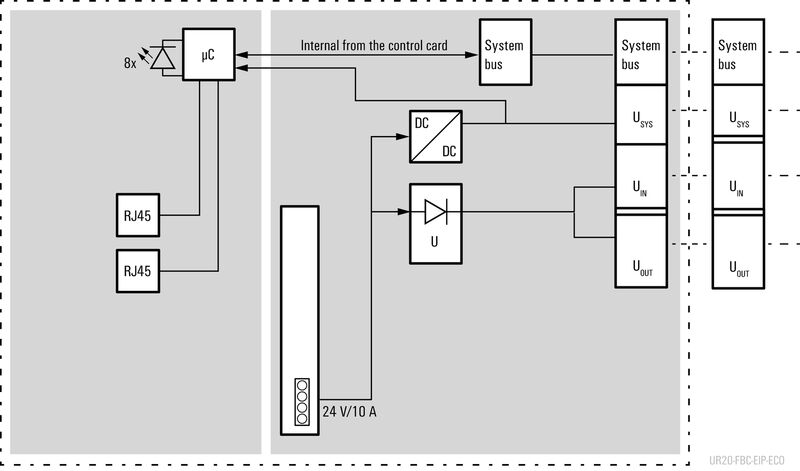

| Feed current for IIN (input current path) , max. | 10 A |
| Feed current for the system, max. | 4 A |
| Supply voltage system and inputs | 24 V DC +20 %/ -15 % |
| Voltage supply |
24 V DC +20 %/ -15 %
via the system bus |

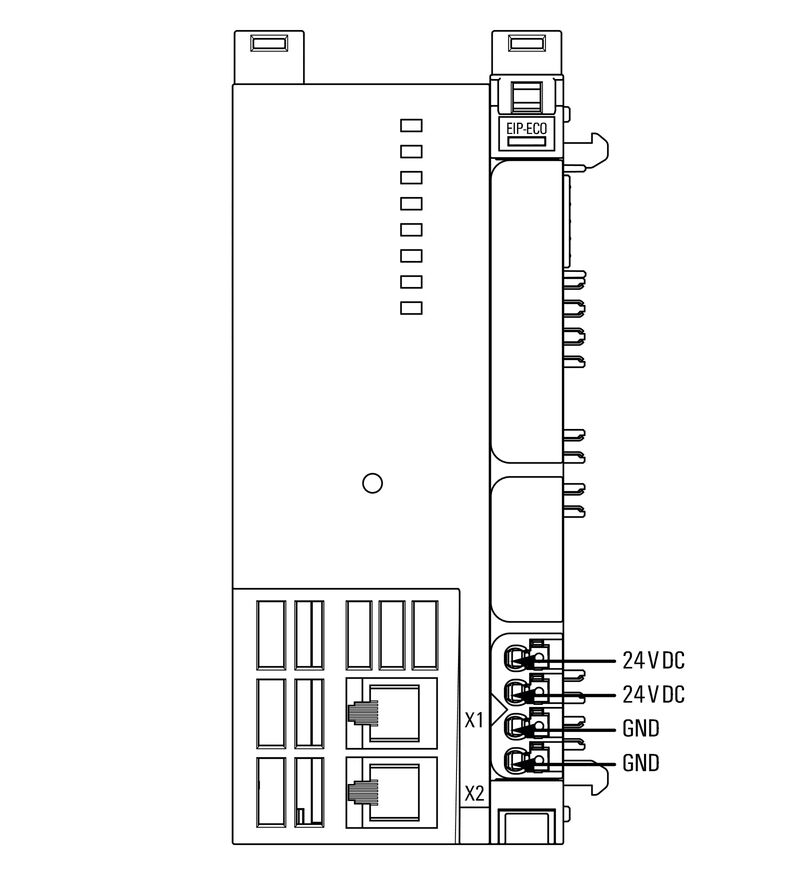

| Connection type | 2x RJ45 plug-in connectors |
| Diagnostic data | 752 Byte |
| Field bus protocol | EtherNet/IP |
| Fieldbus interface |
Full / Half Duplex
Auto MDI/X Autonegotiation |
| Interface | u-remote system bus |
| max. number of modules | 16 |
| Module type | Bus coupler |
| Parameter data | 1,024 Byte |
| Process data | 988 Byte |
| Transmission rate of field bus, max. | 100 Mbit/s |
| Transmission speed of system bus, max. | 48 Mbit/s |
| Product information | The matching end brackets are included with the coupler. |
| Approval/Certificate/Document of Conformity |
[KC certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_293738)
[UKCA Declaration of Conformity - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_273634) [CE Declaration of Conformity - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_281446) |
| Engineering Data |
[Compatibility information -- Combinability of UR20](https://mdcop.weidmueller.com/mediadelivery/asset/900_164873)
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_244937) [Application notes -- UR20-EIP Importing module data from the u-remote web server into Studio 5000](https://mdcop.weidmueller.com/mediadelivery/asset/900_307833) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2799510000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2799510000) |
| Product Change Notification | [Release-Notes - Firmware, EDS and Supported modules list](https://mdcop.weidmueller.com/mediadelivery/asset/900_255703) |
| Software |
[Library and function block -- Language_Pack_UR20_FBC](https://mdcop.weidmueller.com/mediadelivery/asset/900_58377)
[Device description -- Current EDS files EtherNet/IP-ECO coupler](https://mdcop.weidmueller.com/mediadelivery/asset/900_255701) [Firmware -- Current firmware files EtherNet/IP-ECO coupler](https://mdcop.weidmueller.com/mediadelivery/asset/900_255702) [Software -- CIP Bridging](https://mdcop.weidmueller.com/mediadelivery/asset/900_296484) [Device description -- Archived EDS files EtherNet/IP-ECO coupler](https://mdcop.weidmueller.com/mediadelivery/asset/900_314581) [Firmware -- Archived firmware files EtherNet/IP-ECO coupler](https://mdcop.weidmueller.com/mediadelivery/asset/900_314582) |
| User Documentation |
[Handbuch u-remote DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49496)
[Manual u-remote EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49497) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001603 |
| ETIM 7.0 | EC001603 |
| ETIM 8.0 | EC001603 |
| ETIM 9.0 | EC001603 |
| ECLASS 9.0 | 27-24-26-07 |
| ECLASS 9.1 | 27-24-26-07 |
| ECLASS 10.0 | 27-24-26-07 |
| ECLASS 11.0 | 27-24-26-07 |
| ECLASS 12.0 | 27-24-26-07 |
| ECLASS 13.0 | 27-24-26-07 |
| ECLASS 14.0 | 27-24-26-07 |
| Approvals |   |
| ROHS | Conform |
