ZPS 2.5/1AN/QV/5

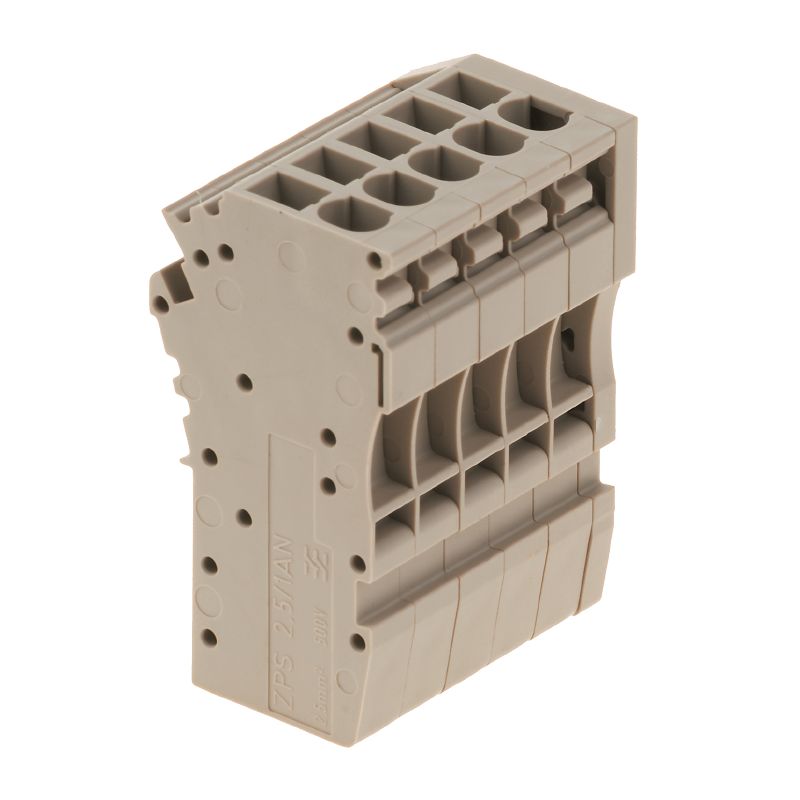

Product image

ZPS 2.5/1AN/QV/5

Z-series, Coupling, Rated cross-section: 2.5 mm², Plug-in connection, beige, Direct mounting

Produkt ID 1865930000
Download datablad Engineering Support Product Downloads
Tilbehør 10 Anvendte produkter 325
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conduttori allacciabili (collegamento di dimensionamento) CSA 등급 데이터 General Rating data dane znamionowe wg UL Product images Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Z-series, Coupling, Rated cross-section: 2.5 mm², Plug-in connection, beige, Direct mounting
Order No.
1865930000
Type
ZPS 2.5/1AN/QV/5
GTIN (EAN)
4032248502363
CPZ
20 Styk

Dimensions and weights

Depth
42 mm
Depth (inches)
1,654 inch
Height
22,55 mm
Height (inches)
0,888 inch
Width
28 mm
Width (inches)
1,102 inch
Peso netto
18,8 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Couleur
dark beige
UL 94 flammability rating
V-0

System specifications

Version
Plug-in connector
pluggable
Tension-clamp connection
Véglap szükséges
No
Numero di potenziali
5
Number of levels
1
Number of clamping points per level
1
Levels cross-connected internally
No
PE connection
No

Additional technical data

Felszerelés típusa
Plugged
Instruction de montage
Direct mounting
Robbanásbiztosság szempontjából bevizsgált változat
No

Conduttori allacciabili (collegamento di dimensionamento)

4 mm²
Blade size
0.6 x 3.5 mm
Clamping range, min.
0,13 mm²
Connection cross-section, stranded, min.
0,13 mm²
Connection direction
сверху
Gauge to IEC 60947-1
A2
Number of connections
5
Stripping length
10 mm
Type of connection
Plug-in connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,13 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,13 mm²

CSA 등급 데이터

Certificate No. (CSA)
200039-1720292
Current size C (CSA)
20 A
Current size D (CSA)
5 A
Voltage size C (CSA)
300 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
26 AWG

General

Installation advice
Direct mounting
Number of poles
5
Standards
IEC 60947-7-1
IEC 61984
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26

Rating data

Sección nominal
2,5 mm²
Névleges feszültség
500 V
Rated DC voltage
500 V
Corriente nominal
24 A
Current at maximum wires
24 A
Norme
IEC 60947-7-1
IEC 61984
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Tensione impulsiva di dimensionamento
6 kV
Teljesítményveszteség az IEC 60947-7-x szerint
0,77 W
Pollution severity
3

dane znamionowe wg UL

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
26 AWG
Conductor size Field wiring min. (cURus)
26 AWG
Current size C (cURus)
24 A
Leitergr. Field wiring max (cURus)
12 AWG
Velikost proudu D (cURus)
5 A
Voltage size C (cURus)
300 V
Voltage size D (cURus)
600 V

Product images

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
