Ominaisuudet
| Version | A-series, End bracket |
| Order No. | 2661300000 |

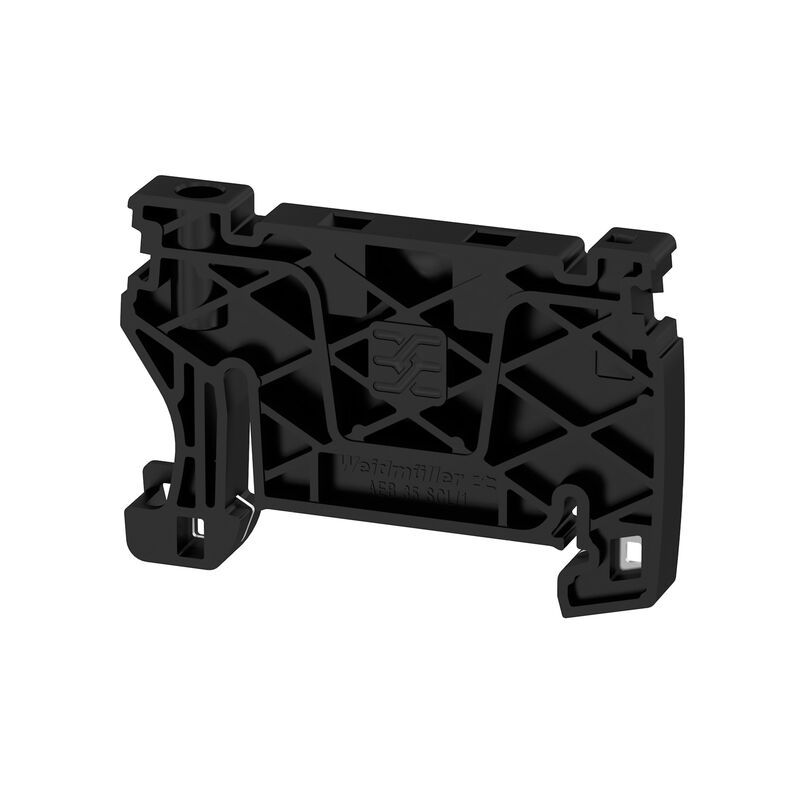

| Type | AEB 35 SCL/1 V0 BK |
| GTIN (EAN) | 4050118702187 |
| Qty. | 20 items |
| Depth | 36,5 mm |
| Depth (inches) | 1,437 inch |
| Depth including DIN rail | 37 mm |
| Height | 52,6 mm |
| Height (inches) | 2,071 inch |
| Width | 6 mm |
| Width (inches) | 0,236 inch |
| Net weight | 5,55 g |
| Storage temperature | -25 °C...55 °C |
| Material | Wemid |
| Colour | black |
| UL 94 flammability rating | V-0 |
| Rail | TS 35 |
| Interlock | screwless |
| Type of mounting | Snap-on |
| Rail | TS 35 |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205634) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2661300000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2661300000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001041 |
| ETIM 7.0 | EC001041 |
| ETIM 8.0 | EC001041 |
| ETIM 9.0 | EC001041 |
| ECLASS 9.0 | 27-14-11-35 |
| ECLASS 9.1 | 27-14-11-35 |
| ECLASS 10.0 | 27-14-11-35 |
| ECLASS 11.0 | 27-14-11-35 |
| ECLASS 12.0 | 27-14-11-35 |
| ECLASS 13.0 | 27-25-03-02 |
| ROHS | Conform |
