CABTITE BP 9MM PA

CABTITE BP 9MM PA

Blind plug, Cabtite (cable entry system), Polyamide, white, Height: 16 mm, Width: 9 mm, Depth: 16 mm, -40 °C…120 °C, IP66

Product ID 2652370000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Is accessoire van 22 Afzonderlijke onderdelen van 16 Verwante producten 18
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance 일반 정보 Product images Classifications

Approvals

ROHS
Conform

General ordering data

Versione
Blind plug, Cabtite (cable entry system), Polyamide, white, Height: 16 mm, Width: 9 mm, Depth: 16 mm, -40 °C…120 °C, IP66
N. d’ordine
2652370000
Tipo
CABTITE BP 9MM PA
GTIN (EAN)
4050118662474
Qty.
25 items

Dimensions and weights

Profondità
16 mm
Depth (inches)
0,63 inch
Posizione verticale
16 mm
Altezza (pollici)
0,63 inch
Larghezza
9 mm
Width (inches)
0,354 inch
Lunghezza
16 mm
Length (inches)
0,63 inch
Diameter
9 mm
Net weight
0,86 g

Temperatures

Temperatura d'esercizio
-40 °C...120 °C

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

일반 정보

Alogeni
아니요
Classe d'infiammabilità UL 94
V-0
Diametro cavo, esterno, max.
9 mm
Diametro cavo, esterno, min.
9 mm
Grado di protezione
IP66
Materiale di base
Polyamide

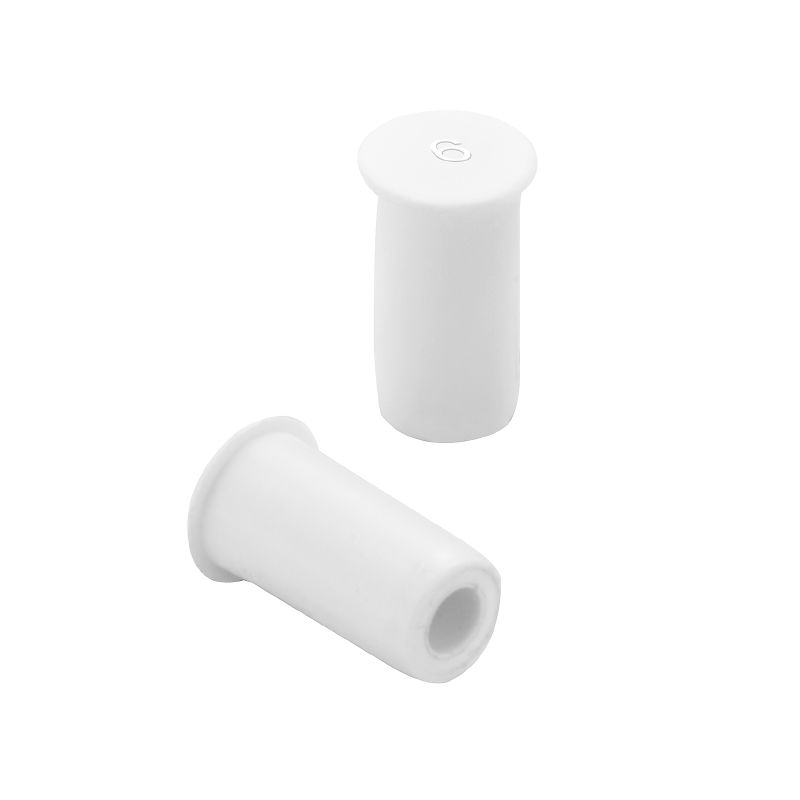

Product images

Classifications

ETIM 8.0
EC000879
ETIM 9.0
EC000879
ETIM 10.0
EC000879
ECLASS 14.0
27-14-08-07
ECLASS 15.0
27-14-08-07
