Ominaisuudet
| Version | Capacity module |
| Order No. | 1222240000 |

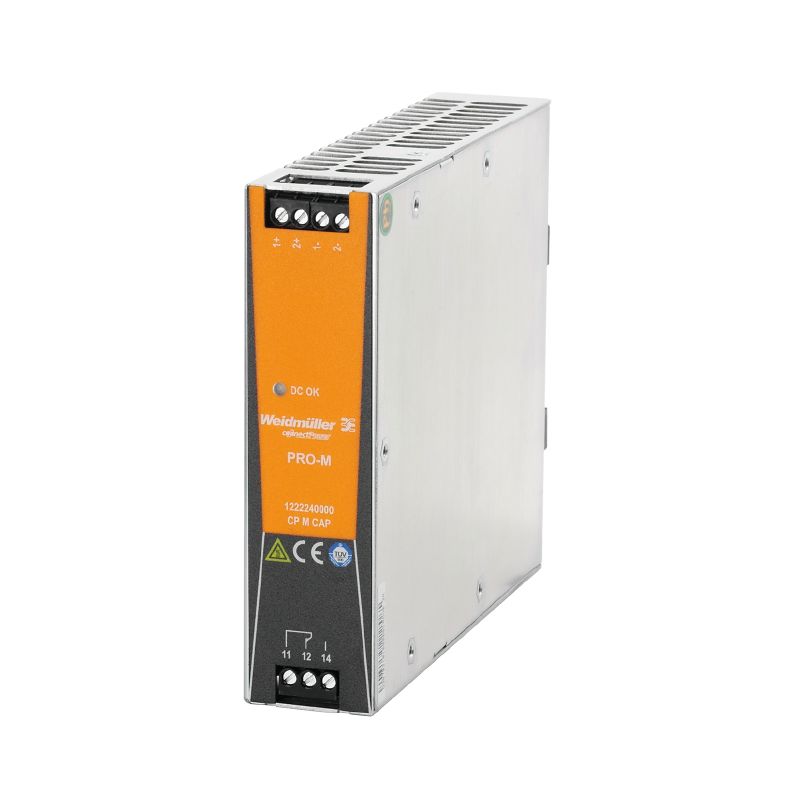

| Type | CP M CAP |
| GTIN (EAN) | 4050118005523 |
| Qty. | 1 items |
| Available until | 31.10.2022 |
| Depth | 150 mm |
| Depth (inches) | 5,905 inch |
| Height | 130 mm |
| Height (inches) | 5,118 inch |
| Width | 34 mm |
| Width (inches) | 1,339 inch |
| Net weight | 724 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| Humidity | 5...95 %, no condensation |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | c9dca554-f123-4c2f-a680-5a7631aa9527 |
| DC current consumption | 25 mA @24 V after charging process |
| DC input voltage range | 18…30 V DC |
| Rated input voltage | 24 V DC |
| Wire connection method | Screw connection |
| Peak current output | load dependent (typ. 40 A for 1 ms) |
| Recovery time for the capacitor | Approx. 1 sec. |
| Switching thresholds |
21.6 V DC, relay is on for Power Good
20.4 V DC, relay is off for Power Fail |
| Voltage monitoring | Yes |
| Wire connection method | Screw connection |
| Humidity | 5...95 %, no condensation |
| Mounting position, installation notice | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. |
| MTBF |
|
| Power loss, idling | 600 mW |
| Protection degree | IP20 |
| Interference immunity test acc. to | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips) |
| Noise emission in accordance with EN55032 | Class B |
| Shock resistance IEC 60068-2-27 | 15 g In all directions |
| Vibration resistance IEC 60068-2-6 | 1 g according to EN 50178 |
| Insulation voltage | 0.5 kV Input / output - Box |
| Pollution severity | 2 |
| Protection class | III, with no ground connection, for SELV |
| Electrical machine equipment | Acc. to EN60204 |
| For use with electronic equipment | Acc. to EN50178 / VDE0160 |
| Conductor cross-section, AWG/kcmil , max. | 12 |
| Conductor cross-section, AWG/kcmil , min. | 26 |
| Conductor cross-section, flexible , min. | 0,5 mm² |
| Conductor cross-section, rigid , max. | 6 mm² |
| Conductor cross-section, rigid , min. | 0,5 mm² |
| Number of terminals | 4 (++--) |
| Wire connection cross section, flexible (input), max. | 4 mm² |
| Conductor cross-section, AWG/kcmil , max. | 12 |
| Conductor cross-section, AWG/kcmil , min. | 26 |
| Conductor cross-section, flexible , max. | 2,5 mm² |
| Conductor cross-section, flexible , min. | 0,5 mm² |
| Conductor cross-section, rigid , max. | 6 mm² |
| Conductor cross-section, rigid , min. | 0,5 mm² |
| Number of terminals | 3 (CO contacts) |
| Floating contact | Yes |
| Approval/Certificate/Document of Conformity |
[CP M CAP UL 508.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306203)
[DE_PA5200_160512_001.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35679) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_204266) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1222240000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1222240000) |
| User Documentation | [Operating instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_38550) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002850 |
| ETIM 7.0 | EC002850 |
| ETIM 8.0 | EC002850 |
| ETIM 9.0 | EC002850 |
| ECLASS 9.0 | 27-04-06-92 |
| ECLASS 9.1 | 27-04-92-01 |
| ECLASS 10.0 | 27-04-06-92 |
| ECLASS 11.0 | 27-04-06-92 |
| ECLASS 12.0 | 27-04-06-92 |
| ECLASS 13.0 | 27-04-06-92 |
| ECLASS 14.0 | 27-04-06-92 |
| Approvals |      |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E258476 |
