Ominaisuudet
| Version | , Number of poles: 2, Gold-plated, silver |
| Order No. | 3116230000 |
| Type | FW P4 P1S AUN1 TY GY |
| GTIN (EAN) | 4099987230520 |
| Qty. | 1 items |
| Net weight | 10 g |
| Category | T1-B |
| Number of poles | 2 |
| Performance-Category | T1-B 10/100 MBit/s, 100 MBit/s |
| Plugging cycles | 750 |
| Protection degree | IP20 |
| Shielding material | bronze tin-plated |
| Transmission rate |
10/100 MBit/s
100 MBit/s |
| Wiring | 2-core |
| Dielectric strength, contact / contact | ≥ 1000 V DC |
| Dielectric strength, contact / shield | ≥ 1500 V DC |
| Insulation strength | ≥ 500 MΩ |
| PoE / PoE+ | PoDL acc. to IEEE 802.3bu / cg |
| Connector standard | IEC 63171-2 |
| Colour | silver |
| Colour chart (similar) | RAL 7001 |
| Insulation strength | ≥ 500 MΩ |
| UL 94 flammability rating | V-0 |
| Contact material | Bronze tin-plated |
| Contact surface | Gold-plated |
| Operating temperature, min. | −40 °C |
| Operating temperature, max. | 85 °C |
| VPE length | 0 mm |
| VPE width | 0 mm |
| VPE height | 0 mm |

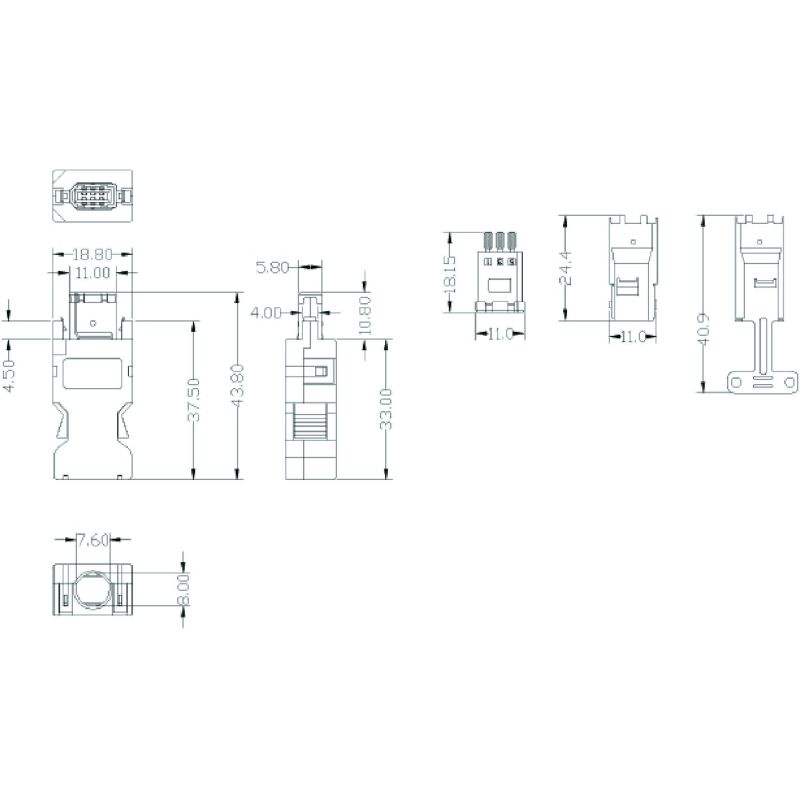

| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_322232) |
| Technical Documentation | [3116230000_FW_P4_P1S_AUN1_TY_GY_20241127](https://mdcop.weidmueller.com/mediadelivery/asset/900_323577) |
| ETIM 6.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ECLASS 9.1 | 27-44-01-90 |
| ECLASS 10.0 | 27-44-01-90 |
| ECLASS 11.0 | 27-44-01-90 |
| ECLASS 12.0 | 27-44-01-90 |
| ECLASS 13.0 | 27-44-01-90 |
| ECLASS 14.0 | 27-44-01-90 |
| ROHS | Conform |
