H0,5/16 OR SV 1BAGX100
H0,5/16 OR SV 1BAGX100
Drawing

H0,5/16 OR SV 1BAGX100

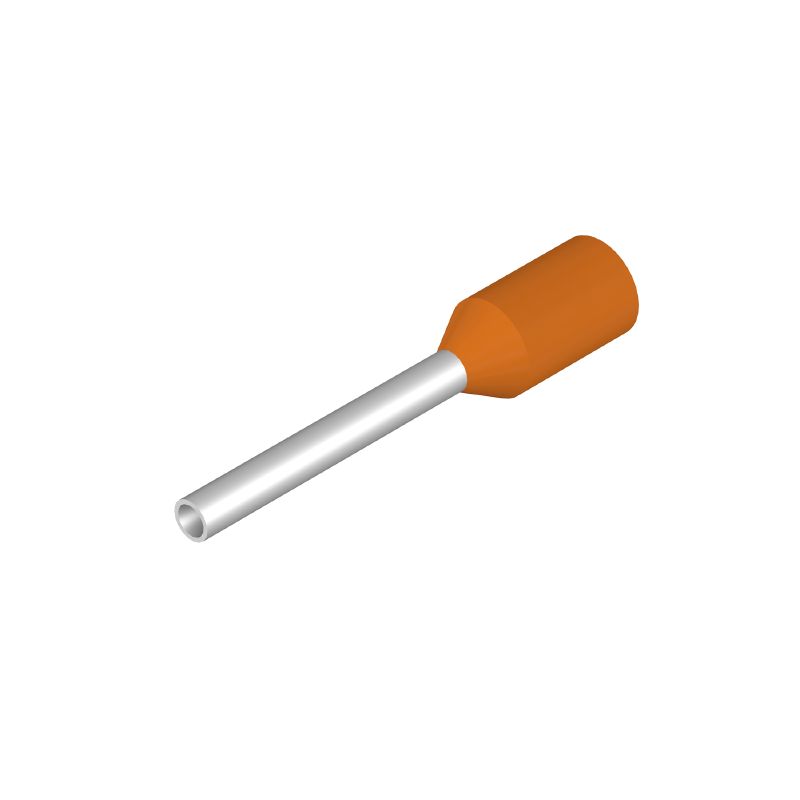

Wire-end ferrule, Standard, 12 mm, 10 mm, orange

Tuotteen tunnus 9028270000
Lataa tietosivu Engineering Support Product Downloads
On lisävaruste 11 Samankaltaiset tuotteet 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data Кабельные наконечники Classifications

Approvals

Omologazioni
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319221/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319229/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N° Certificato (cULus)
E499744

General ordering data

Versione
Wire-end ferrule, Standard, 12 mm, 10 mm, orange
Order No.
9028270000
Tipo
H0,5/16 OR SV
GTIN (EAN)
4008190902049
Qty.
500 items
Packaging
Multipack bag

Dimensions and weights

Net weight
0,096 g

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical data

Descrizione articolo
Wire end ferrule with plastic collar, orange
Versione
Standard

Кабельные наконечники

Collar diameter (D2)
2,6 mm
Colore
Weidmueller
Contact surface length (L2)
10 mm
Csupaszolási hossz
12 mm
Epaisseur des douilles métalliques (S1)
0,15 mm
Espesor del aislamiento (S2)
0,25 mm
L1 en mm
16 mm
Průměr povrchu kontaktu (D1)
1 mm
Section de raccordement du conducteur, AWG, max.
AWG 20
Sezione di collegamento cavo
0,5 mm²

Classifications

ETIM 8.0
EC000005
ETIM 9.0
EC000005
ETIM 10.0
EC000005
ECLASS 14.0
27-40-02-01
ECLASS 15.0
27-40-02-01
