Ominaisuudet

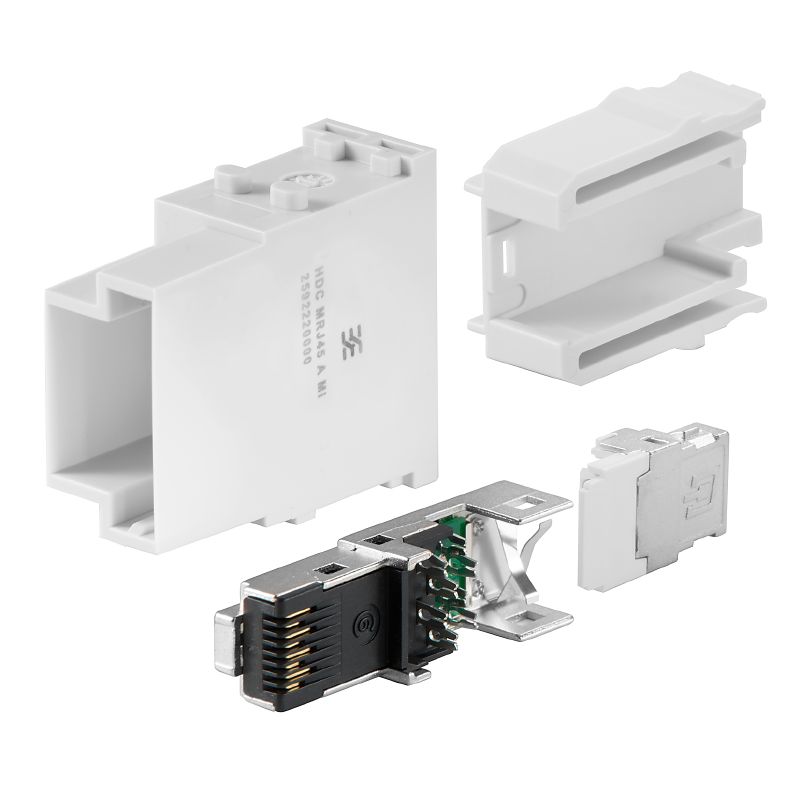

| Version | RJ45 module, 50 V, 1 A, Number of poles: 8, IDC terminal, Male, Required plug-in slots: 1 |
| Order No. | 2592220000 |
| Type | HDC MRJ45 A MI |
| GTIN (EAN) | 4050118602333 |
| Qty. | 1 items |
| Depth | 34 mm |
| Depth (inches) | 1,339 inch |
| Height | 54,85 mm |
| Height (inches) | 2,159 inch |
| Width | 14,5 mm |
| Width (inches) | 0,571 inch |
| Net weight | 0,21 g |
| Limit temperature | -40 °C ... 70 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | b0a2f8e6-c50c-4c56-9381-cc6543281fbb |
| Insulation strength | 1012 Ω |
| Material | Polycarbonate, glass fibre reinforced |
| Number of poles | 8 |
| Plugging cycles | 750 (RJ45) |
| Pollution severity | 3 |
| Rated current (DIN EN 61984) | 1 A |
| Rated impulse voltage (DIN EN 61984) | 0,8 kV |
| Rated voltage (DIN EN 61984) | 50 V |
| Required plug-in slots | 1 |
| Series | ModuPlug |
| Surge voltage category | III |
| Type | Male |
| UL 94 flammability rating | V-0 |
| Insulation cross-section, max. | 1,6 mm |
| Insulation cross-section, min. | 0,85 mm |
| Type of connection | IDC terminal |
| Wire connection cross section AWG, max. | AWG 22 |
| Wire connection cross section AWG, min. | AWG 24 |
| Wire connection diameter, solid, max. | 0,64 mm |
| Wire connection diameter, solid, min. | 0,4 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_93995) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2592220000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC000438 |
| ETIM 9.0 | EC000438 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-18 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E92202 |
