Ominaisuudet

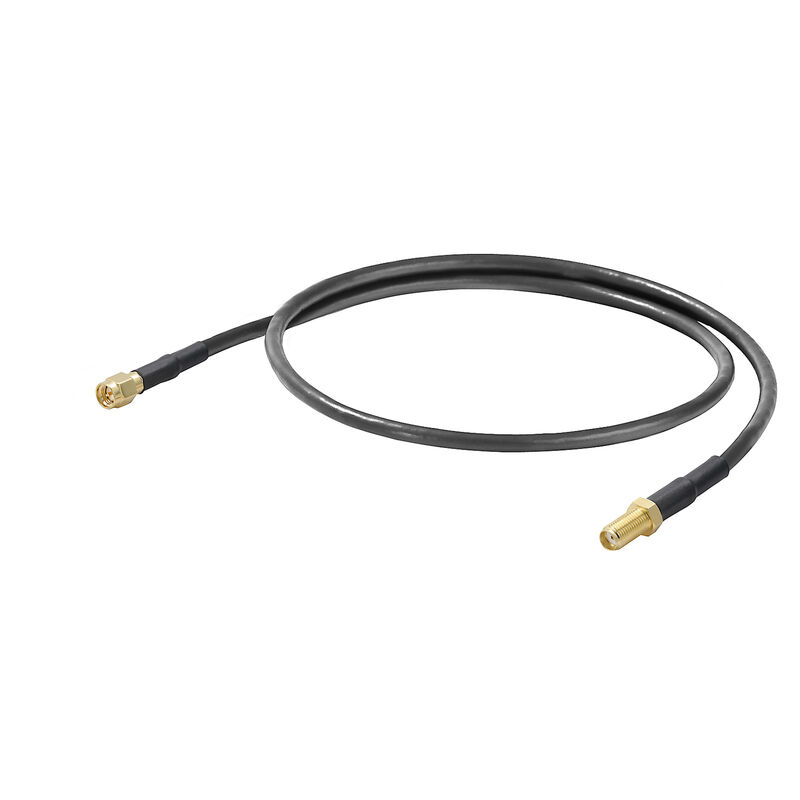

| Version | Antenna cable, Connection 1:, SMA male, Connection 2:, SMA female, Length: 1 m |
| Order No. | 2787920000 |
| Type | IE-CC-SMAM-SMAF-1M |
| GTIN (EAN) | 4064675066088 |
| Qty. | 1 items |
| Length | 1 m |
| Length (inches) | 39,37 inch |
| Net weight | 45 g |
| Operating temperature | -40 °C...85 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| Attenuation at 2.4 GHz | 0.62 dB/m |
| Attenuation at 2000 MHz | 0.56 dB/m |
| Attenuation at 5 GHz | 0.94 dB/m |
| Attenuation at 800 MHz | 0.34 dB/m |
| Material sheath | PVC |
| Min. bending radius, repetitive | 25 mm |
| Sheathing colour | black |
| UV-resistant | Yes |
| Type of connection |
Connection 1:
SMA male Connection 2: SMA female |
| Operating temperature, max. | 85 °C |
| Operating temperature, min. | −40 °C |
| Technical Documentation | [Cable attenuation and VSWR plot](https://mdcop.weidmueller.com/mediadelivery/asset/900_250951) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001682 |
| ETIM 7.0 | EC001682 |
| ETIM 8.0 | EC001682 |
| ETIM 9.0 | EC001682 |
| ECLASS 9.0 | 27-06-03-10 |
| ECLASS 9.1 | 27-06-03-10 |
| ECLASS 10.0 | 27-06-03-10 |
| ECLASS 11.0 | 27-06-03-10 |
| ECLASS 12.0 | 27-06-03-10 |
| ECLASS 13.0 | 27-06-03-10 |
| ROHS | Conform |
