Ominaisuudet
| Version | Connecting module, T-piece, IP68 (50 m / 24 h) |
| Order No. | 2685590000 |
| Type | IE-CCTM-3P-8.5 |
| GTIN (EAN) | 4050118695342 |
| Qty. | 1 items |
| Net weight | 35 g |
| Operating temperature | -40 °C...105 °C |
| Number of poles | 3 |
| Description of article | Connecting module |
| Colour | black |
| Housing main material | Nylon + Glass fibre, UL Recongnized |
| Contact material | Nickel plated |
| Conductor connection cross-section, solid (AWG) | AWG 18...AWG 12 |
| Wire cross-section, solid, min. (AWG) | AWG 18 |
| Wire cross-section, solid, max. (AWG) | AWG 12 |
| Wire connection cross section, finely stranded, min. | 0,75 mm² |
| Wire connection cross section, finely stranded, max. | 3,5 mm² |
| Conductor connection cross-section, flexible | 0.75...3.5 mm² |
| Sheath diameter, min. | 6,5 mm |
| Sheath diameter, max. | 8,5 mm |
| Contact holder materials | Nylon + Glass fibre, UL Recongnized |
| Protection degree | IP68 (50 m / 24 h) |

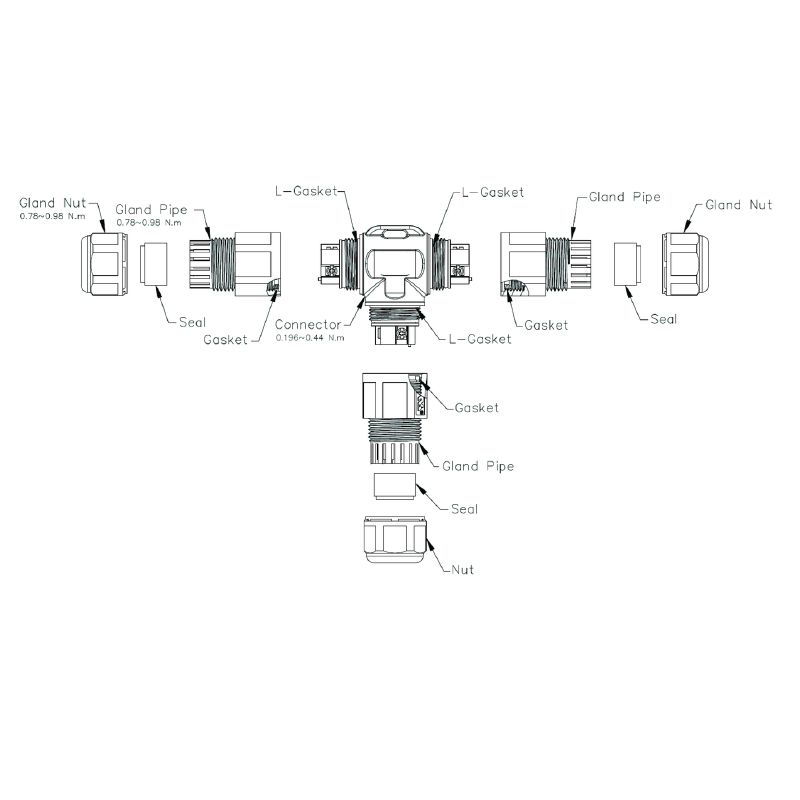

| Tightening torque connecting module, min. | 0,196 Nm |
| Tightening torque connecting module, max. | 0,44 Nm |
| Tightening torque gland nut, min. | 0,78 Nm |
| Tightening torque gland nut, max. | 0,98 Nm |
| Tightening torque gland pipe, min. | 0,78 Nm |
| Tightening torque gland pipe, max. | 0,98 Nm |
| Rated current | 20 A |
| Rated voltage | 600 V |
| Certificate No. (cURus) | E486077 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_157223) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2685590000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002780 |
| ETIM 7.0 | EC002780 |
| ETIM 8.0 | EC002780 |
| ETIM 9.0 | EC002780 |
| ECLASS 9.0 | 27-14-11-52 |
| ECLASS 9.1 | 27-14-11-52 |
| ECLASS 10.0 | 27-14-11-52 |
| ECLASS 11.0 | 27-14-11-52 |
| ECLASS 12.0 | 27-14-11-52 |
| ECLASS 13.0 | 27-14-11-52 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E486077 |
