Ominaisuudet
| Version | Media converter, Fast Ethernet, Number of ports: 1x RJ45, 1 * SC Single-mode, IP30, -40 °C...75 °C |
| Order No. | 1286900000 |

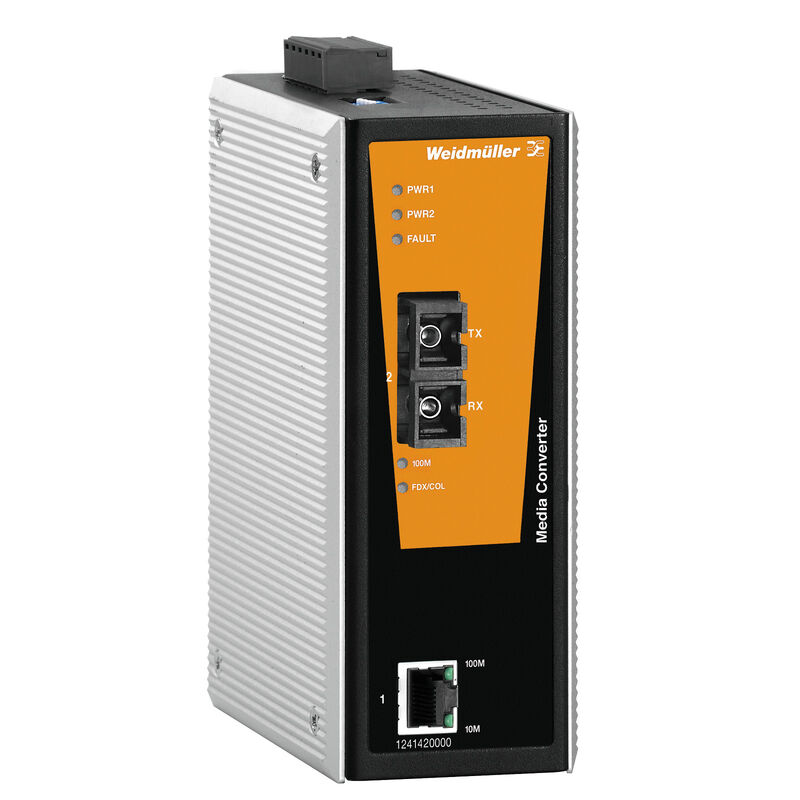

| Type | IE-MC-VLT-1TX-1SCS |
| GTIN (EAN) | 4050118077766 |
| Qty. | 1 items |
| Depth | 105 mm |
| Depth (inches) | 4,134 inch |
| Height | 135 mm |
| Height (inches) | 5,315 inch |
| Width | 53,6 mm |
| Width (inches) | 2,11 inch |
| Net weight | 765 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...75 °C |
| Humidity | 5 to 95 % (non-condensing) |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | b14ea46f-06a9-4191-9f88-14cc6c04a8a8 |
| EMC standards |
EN 55032
EN 55024 IEC 61000-4-11 CISPR 32 FCC Part 15 Subpart B Class A IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz bis 1 Ghz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V/m IEC 61000-4-8 |
| Explosive risk zone |
UL/cUL, Class I, Division 2, Groups A, B, C and D
ATEX Zone 2 Ex nA nC IIC T4 Gc |
| Free fall | According to IEC 60068-2-32 |
| Safety standard |
UL508
UL 60950-1 EN 60950-1 |
| Ship use | DNV |
| Shock | according to IEC 60068-2-27 |
| Vibration | according to IEC 60068-2-6 |
| Humidity | 5 to 95 % (non-condensing) |
| Operating temperature, max. | 75 °C |
| Operating temperature, min. | −40 °C |
| Storage temperature, max. | 85 °C |
| Storage temperature, min. | −40 °C |
| Transmission rate | 100 Mbps |
| Transceiver type | Singlemode |
| Connector type | SC-Duplex |
| Transmission distance, typ. | 40 km |
| Wavelength |
|
| Receive power |
|
| Transmission power |
|
| Link-budget | 29 dB |
| Note | When connecting a single-mode fiber transceiver over a short distance, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power. |
| Time interval | 5 years |
| Alarm contact | 1 relay output with a current capacity of 1 A at 24 V DC |
| Fibre-optic ports |
100BaseFX ports (SC connector)
Singlemode |
| Function DIP switch |
100BaseFX full-/half-duplex mode
Port surveillance |
| LED indicator |
PWR1
PWR2 FAULT 10/100M (TP-Port) 100M (fibre-optic port). FDX/COL (Fibre port) |
| Number of ports |
1x RJ45
1 * SC Single-mode |
| RJ45 ports | 10/100BaseT(X) |
| MTBF |
|
| Connection type | 1 removable 6-pin terminal block |
| Current consumption |
|
| Overload current protection | 1.1 A |
| Reverse polarity protection | Available |
| Voltage supply |
24 V DC
2 redundant inputs |
| Voltage supply range |
|
| Housing main material | metal |
| Protection degree | IP30 |
| Speed | Fast Ethernet |
| Type of mounting |
DIN rail
Panel (with optional mounting kit) |
| Standard |
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX |
| Approval/Certificate/Document of Conformity |
[DNV certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_74377)
[ATEX certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_82221) [KC certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_96973) [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35672) [UK Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_289041) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_103286) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1286900000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1286900000) |
| User Documentation | [Hardware Installation Guide](https://mdcop.weidmueller.com/mediadelivery/asset/900_35662) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001467 |
| ETIM 7.0 | EC001467 |
| ETIM 8.0 | EC001467 |
| ETIM 9.0 | EC001467 |
| ECLASS 9.0 | 19-17-01-14 |
| ECLASS 9.1 | 19-17-01-14 |
| ECLASS 10.0 | 19-17-01-32 |
| ECLASS 11.0 | 19-17-01-32 |
| ECLASS 12.0 | 19-17-01-32 |
| ECLASS 13.0 | 19-17-01-14 |
| ECLASS 14.0 | 19-17-01-32 |
| Approvals |        |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E230683 |
| Certificate no. (cULusEX) | E223527 |
