Ominaisuudet

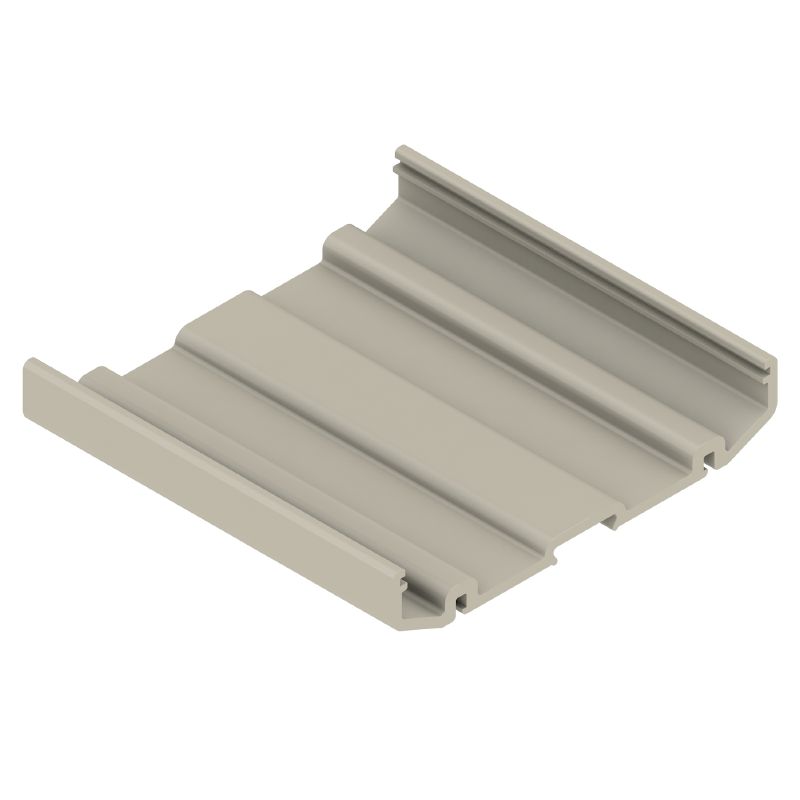

| Version | Profile housing, RS 100 Pebble grey, Extruded profile, Width: 2000 mm |
| Order No. | 4010870000 |
| Type | PF RS 100 GR 2000MM |
| GTIN (EAN) | 4008190214562 |
| Qty. | 2 |
| Depth | 19 mm |
| Depth (inches) | 0,748 inch |
| Height | 104 mm |
| Height (inches) | 4,094 inch |
| Width | 2 000 mm |
| Width (inches) | 78,74 inch |
| Net weight | 530 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Insulating material | PVC |
| Material | PVC |
| Surface finish | untreated |
| UL 94 flammability rating | V-0 |
| Colour | Pebble grey |
| Colour chart (similar) | RAL 7032 |
| Encapsulation option | No |
| Protection degree | IP20 in installed state |
| Product information |
3 heights are available for the cover profile and the end plates: TS mounting without cover: TS 32 = 45 mm, TS35x7.5 = 40.5 mm TS mounting with low cover: TS 32 = 89 mm, TS 35x7.5 = 84.5 mm TS mounting with high cover: TS 32 = 121 mm, TS 35x7.5 = 116.5 mm Direct mounting, without/low/high cover: 24 / 69 / 99 mm Dimensions of the PCB Thickness: 1.6 (±0.2) mm, width: 100 (+0.5) mm Dimension of the RS section = length of the printed circuit board – 4.5 mm Dimension of ADP section = PCB length - 1 mm Example: PCB length 160 mm, RS = 155.5 mm, ADP = 159 mm" |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_322150) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL ANALO.SIGN.CONV. EN](http://download.weidmueller.com/asset/download/file/38237)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 7.0 | EC002779 |
| ETIM 8.0 | EC002779 |
| ETIM 9.0 | EC002779 |
| ECLASS 11.0 | 27-18-27-92 |
| ECLASS 12.0 | 27-18-27-92 |
| ECLASS 13.0 | 27-19-06-01 |
| ECLASS 14.0 | 27-19-06-01 |
| ROHS | Conform |
