Ominaisuudet

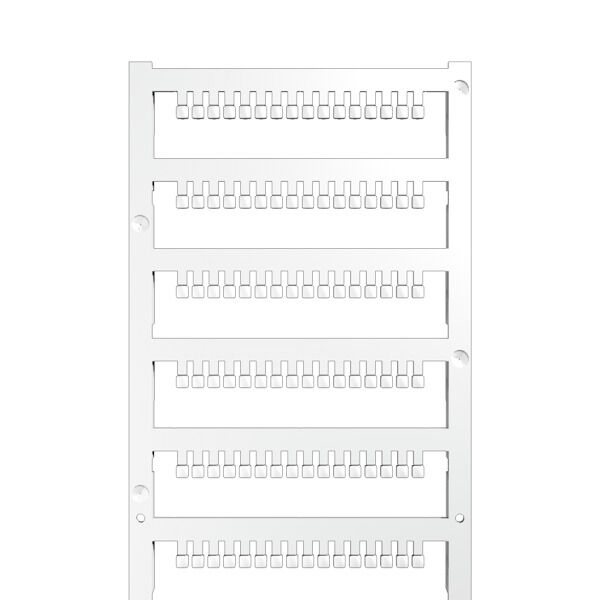

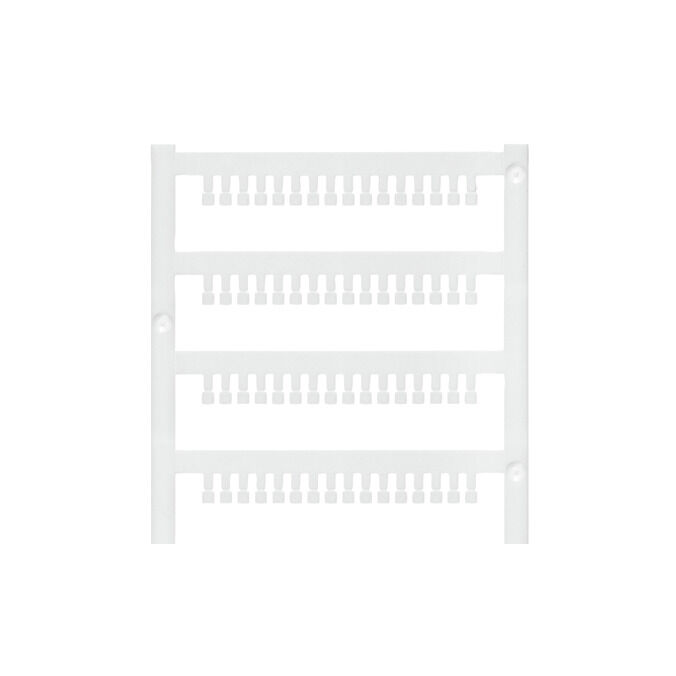

| Version | OMNIMATE Signal - series PM, Pusher markers, 2.7 x 2.6 mm, Pitch in mm (P): 3.50 Weidmueller, white |
| Order No. | 1323710000 |
| Type | PM 2.7/2.6 MC NE WS |
| GTIN (EAN) | 4050118126778 |
| Qty. | 960 items |
| Height | 2,7 mm |
| Height (inches) | 0,106 inch |
| Width | 2,6 mm |
| Width (inches) | 0,102 inch |
| Net weight | 0,103 g |
| Operating temperature range | -40...100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Application/manufacturer | Weidmueller |
| Colour | white |
| compatible printer | [PRINTJET CONNECT](~/p/2715590000) |
| Halogen | No |
| Material | Polyamide 66 |
| Number of markers per combination | 1 MultiCard = Pusher markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | −40 °C |
| Printed characters | neutral |
| Recommended industries | Device manufacturer |
| UL 94 flammability rating | V-2 |
| Width | 2,6 mm |
| Pitch in mm (P) | 3,5 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61207) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1323710000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1323710000) |
| Product Change Notification |
[Technical change to MultiCard material - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_102023)
[Technical change to MultiCard material - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_102024) [MultiCard Material modification](https://mdcop.weidmueller.com/mediadelivery/asset/900_308560) [MultiCard Material Modifikation](https://mdcop.weidmueller.com/mediadelivery/asset/900_308561) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
