RIM 3 110/230VUC
Produktbild
Abbildung ähnlich
RIM 3 110/230VUC
Esquema de conexiones
RIM 3 110/230VUC

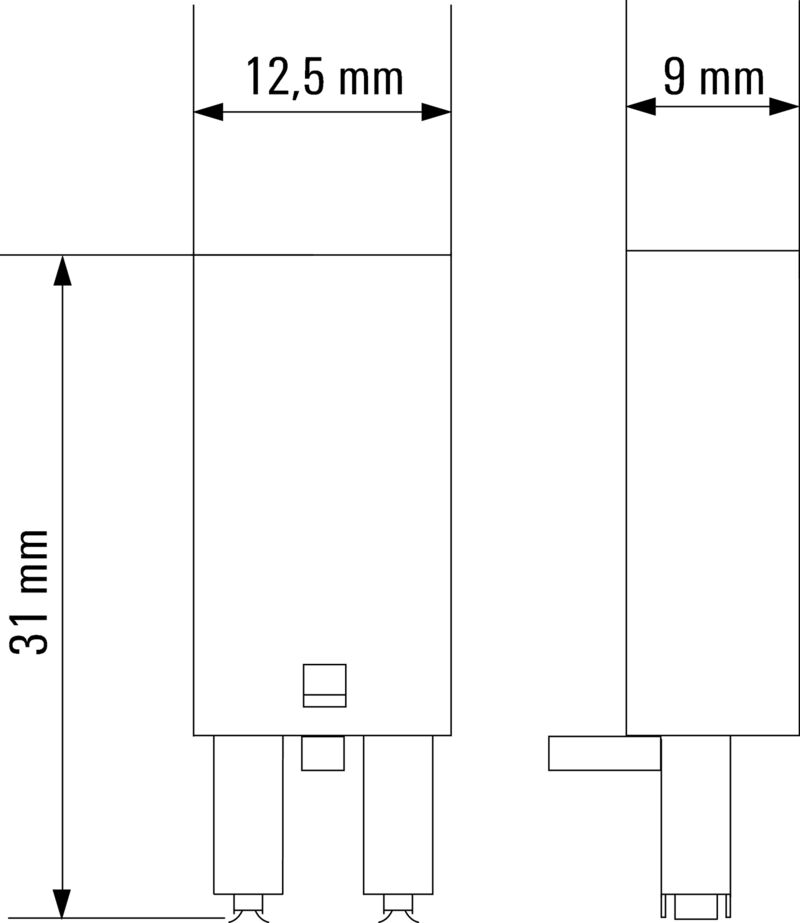

Dimensional drawing

RIM 3 110/230VUC

Tämä tuote ei ole pian enää saatavana.

Alternative product: 3053460000

RIDERSERIES RCL, LED module, Rated control voltage: 110…230 V UC, Plug-in connection

Tuotteen tunnus 8691030000
Lataa tietosivu Engineering Support Product Downloads
Tanúsítványok General ordering data Dimensioni e pesi Temperaturer Environmental Product Compliance Rated data UL 제어 측 General data Dalsze szczegóły aprobat / norm Connection data Classifications

Tanúsítványok

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Núm. de certificación (cURus)
E223759

General ordering data

Version
RIDERSERIES RCL, LED module, Rated control voltage: 110…230 V UC, Plug-in connection
Order No.
8691030000
Tipo
RIM 3 110/230VUC
GTIN (EAN)
4032248361717
Qty.
10 items
Estado de entrega
This article will no longer be available in the future.
Disponible jusqu'à
30.06.2025
Alternative product
[3053460000](~/p/3053460000)

Dimensioni e pesi

Depth
34,5 mm
Depth (inches)
1,358 inch
Altura
9 mm
Height (inches)
0,354 inch
Width
12,5 mm
Width (inches)
0,492 inch
Net weight
3,041 g

Temperaturer

Storage temperature
-40 °C...70 °C
Operating temperature
-40 °C...70 °C
Humidité
40 °C / 93 % rel. humidity, no condensation

Environmental Product Compliance

RoHS Compliance Status
Zgodne, bez wyłączenia
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

Certificate No. (cURus)
E223759

제어 측

Rated control voltage
110…230 V UC
Status indicator
red LED

General data

Colour
black

Dalsze szczegóły aprobat / norm

Standards
UL508
Certificate No. (cURus)
E223759

Connection data

Wire connection method
Plug-in connection

Classifications

ETIM 8.0
EC002586
ETIM 9.0
EC002586
ETIM 10.0
EC002586
ECLASS 14.0
27-37-16-92
ECLASS 15.0
27-37-16-92
