Ominaisuudet

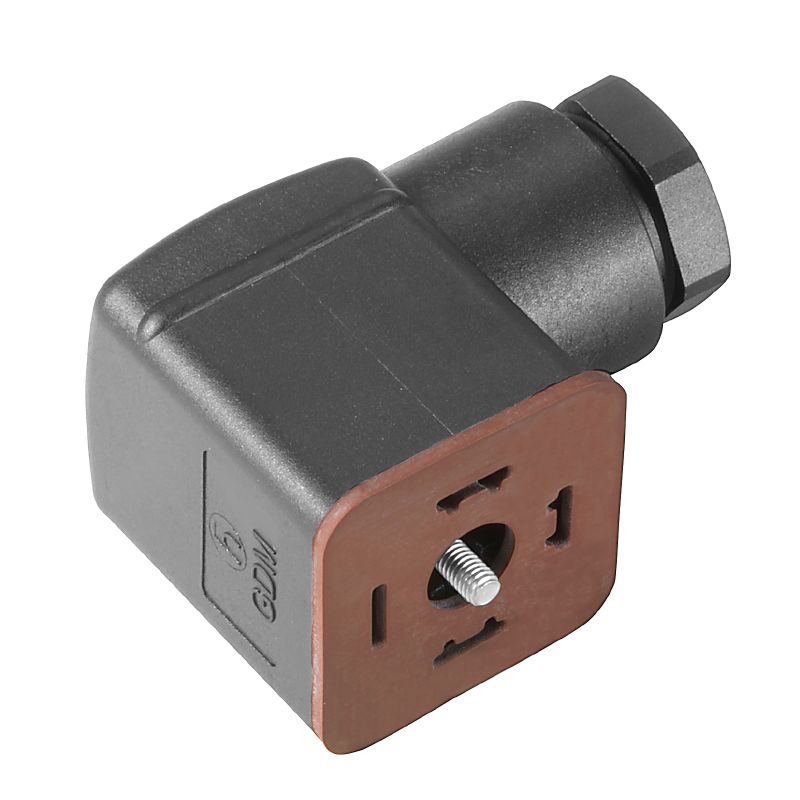

| Version | Field attachable connector, Valve plug, Socket, angled |
| Order No. | 1873150000 |
| Type | SAIB-VSA-3P/230/11-H/OB |
| GTIN (EAN) | 4032248492527 |
| Qty. | 1 items |
| Net weight | 28 g |
| All valve plugs are fitted with protective circuits | Without circuitry |
| Cable diameter | 6...8 mm (PG9) / 8...10 mm (PG11) |
| Cable diameter, max. | 10 mm |
| Cable diameter, min. | 8 mm |
| Cable glands | PG 11 |
| Coding | Design A (18 mm) |
| Conductor cross-section, max. | 1,5 mm² |
| Conductor cross-section, min. | 0,34 mm² |
| Connection cross-section, max. | 1,5 mm² |
| Connection cross-section, min. | 0,34 mm² |
| Contact surface | Ni |
| Housing main material | PA 6 GF |
| Insulation strength | 108 Ω |
| LED | No |
| Number of poles | 3 |
| Plugging cycles | ≤ 50 |
| Pollution severity | 3 |
| Protection degree | IP65 |
| Rated current | 10 A |
| Rated voltage | 230 V |
| Temperature range of housing | -25…+85 °C |
| Type of connection | Screw connection |

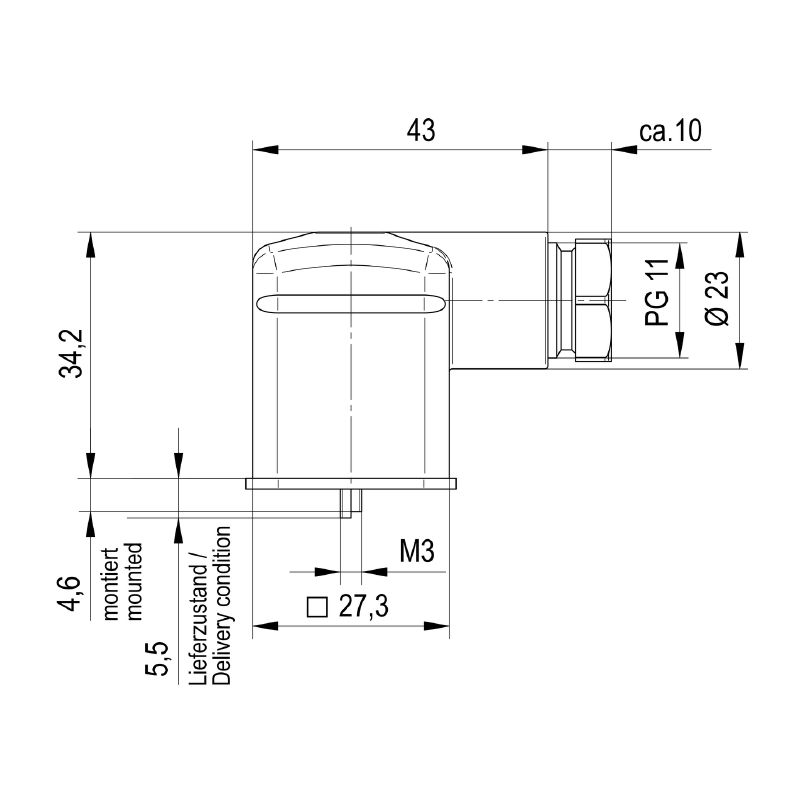

| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_174672) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1873150000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002062 |
| ETIM 7.0 | EC003623 |
| ETIM 8.0 | EC003623 |
| ETIM 9.0 | EC003623 |
| ECLASS 9.0 | 27-44-01-05 |
| ECLASS 9.1 | 27-44-01-05 |
| ECLASS 10.0 | 27-44-01-05 |
| ECLASS 11.0 | 27-44-01-05 |
| ECLASS 12.0 | 27-44-01-05 |
| ECLASS 13.0 | 27-44-01-05 |
| Approvals |   |
| ROHS | Conform |
