Ominaisuudet
| Version | Built-in plugs, M8, Pin, Mounting thread: , Number of poles: 8, Strand / cable length: |
| Order No. | 2422170000 |
| Type | SAID-M8S-8S-SMT |
| GTIN (EAN) | 4050118429794 |
| Qty. | 25 items |
| Net weight | 3,12 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 0ea6d931-f9e9-40a6-89d9-8d67103189d3 |
| Coding | M8 = none |
| Housings | M8 pin |

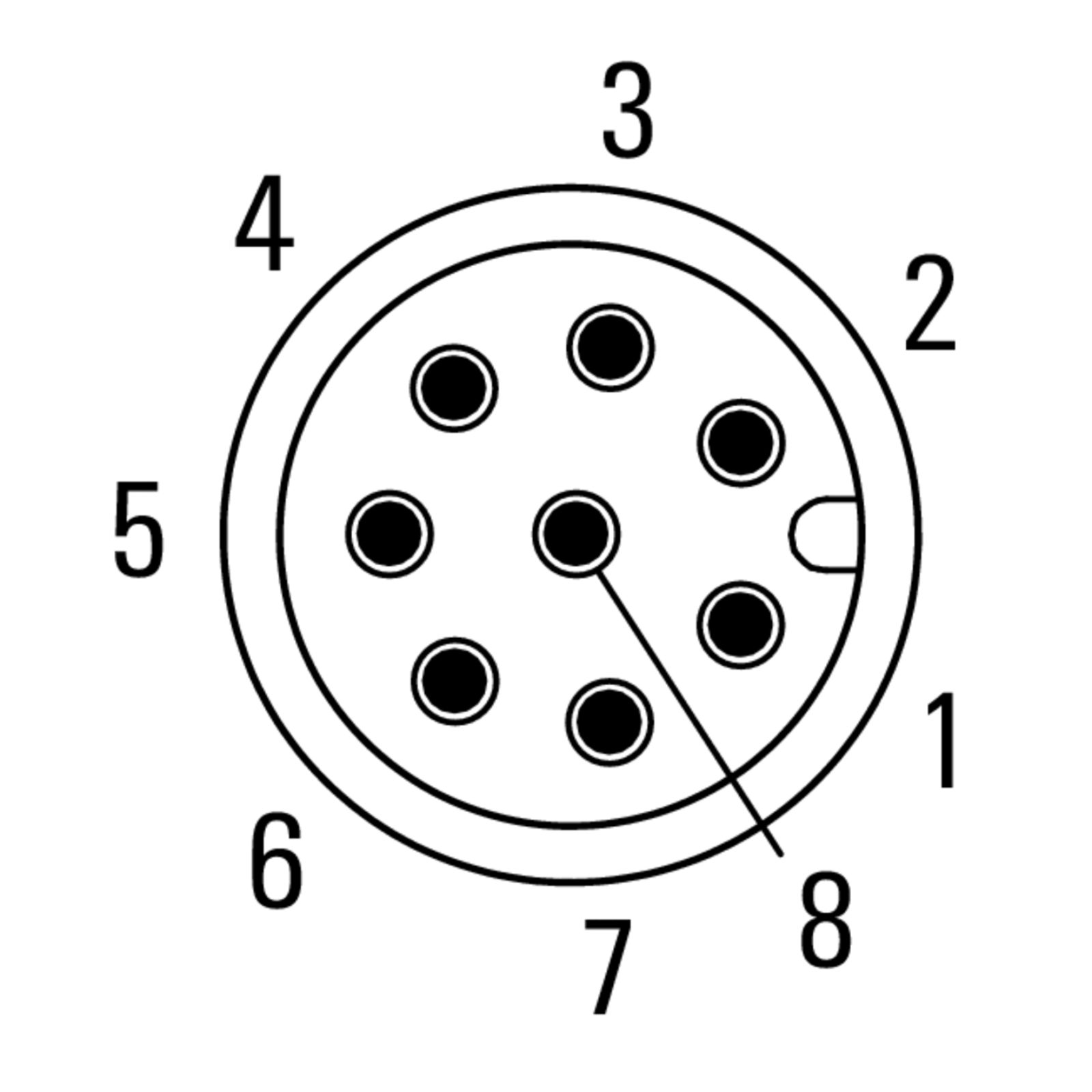

| Number of poles | 8 |
| Shield connection | Yes |
| Rated voltage | 30 V |
| Rated voltage | 60 V (3-pole) / 30 V (4-,5- and 8-pole) |
| Rated current | 1,5 A |
| Rated current | 4 A (3-, 4- and 5-pole) / 1.5 A (8-pole) |
| Temperature range | -25…95 °C |
| Protection degree | IP67 |
| Contact surface | Au (Gold) |
| Housing main material | LCP |
| Connection thread | M8 |
| Tightening torque | M8: 0.5 Nm |
| Pollution severity | 3 (2 within the sealed area) |
| Plugging cycles | ≥ 100 |
| Contact material | Cu-alloy |
| Lock nut material | Nickel-plated CuZn |
| Material of the flange-mounted housing | Nickel-plated CuZn |
| Number of poles | 8 |
| UL 94 flammability rating | V-0 |
| Housing main material | LCP |
| Connection thread | M8 |
| Contact material | Cu-alloy |
| Contact surface | Au (Gold) |
| Protection degree | IP67 |
| Plugging cycles | ≥ 100 |
| UL 94 flammability rating | V-0 |
| Contact material | Cu-alloy |
| Contact surface | Au (Gold) |
| Number of poles | 8 |
| Pin series quantity | 1 |
| Plugging cycles | ≥ 100 |
| Protection degree | IP67 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_46068) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2422170000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000438 |
| ETIM 7.0 | EC003557 |
| ETIM 8.0 | EC003557 |
| ETIM 9.0 | EC003557 |
| ECLASS 9.1 | 27-44-02-05 |
| ECLASS 10.0 | 27-44-02-23 |
| ECLASS 11.0 | 27-44-02-23 |
| ECLASS 12.0 | 27-44-02-23 |
| ECLASS 13.0 | 27-44-02-23 |
| ECLASS 14.0 | 27-44-02-23 |
| ROHS | Conform |
