Ominaisuudet

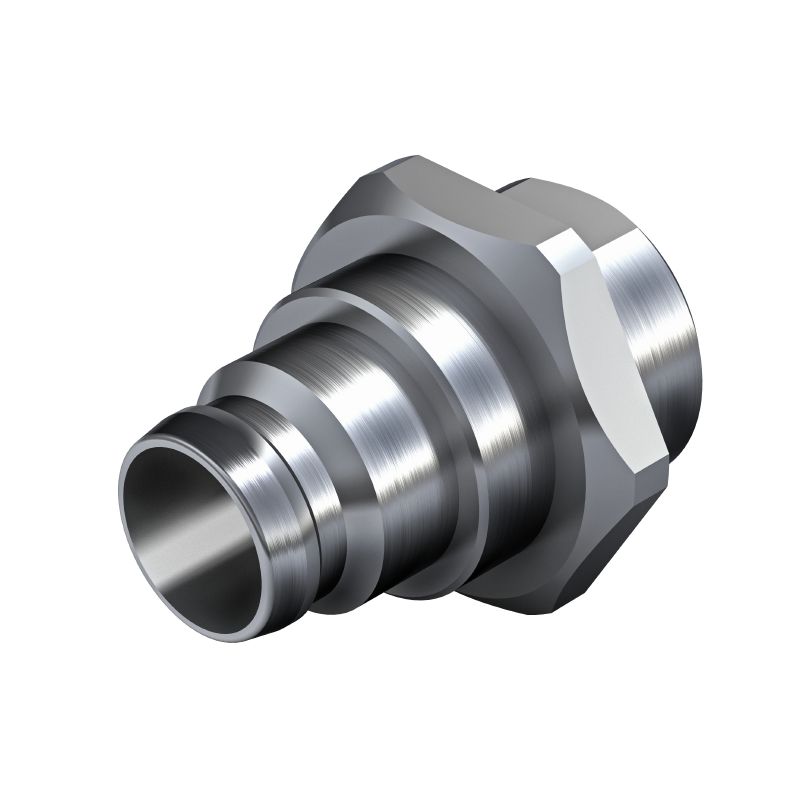

| Version | Built-in plugs, M8 pin, Mounting height: 9 mm |
| Order No. | 2424520000 |
| Type | SAIFG-M8S-M10-9 |
| GTIN (EAN) | 4050118432251 |
| Qty. | 25 items |
| Net weight | 6,08 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 0ea6d931-f9e9-40a6-89d9-8d67103189d3 |
| Coding | none |
| Housing surface | nickel-plated |
| Housings | M8 pin |

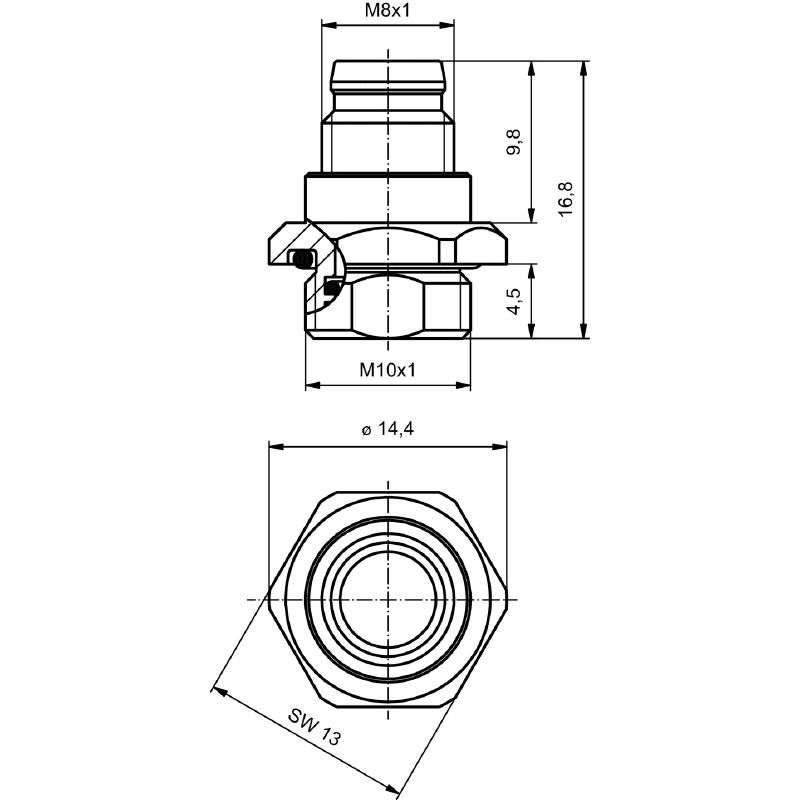

| Mounting height | 9 mm |
| Housing main material | CuZn |
| Connection thread | M8 |
| Seal material |
FPM
NBR |
| Housing main material | CuZn |
| Connection thread | M8 |
| Pin series quantity | 1 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66015) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2424520000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC003556 |
| ETIM 8.0 | EC003556 |
| ETIM 9.0 | EC003556 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-24 |
| ECLASS 11.0 | 27-44-02-24 |
| ECLASS 12.0 | 27-44-02-24 |
| ECLASS 13.0 | 27-44-02-24 |
| ECLASS 14.0 | 27-44-02-24 |
| ROHS | Conform |
