UR20-16AUX-FE

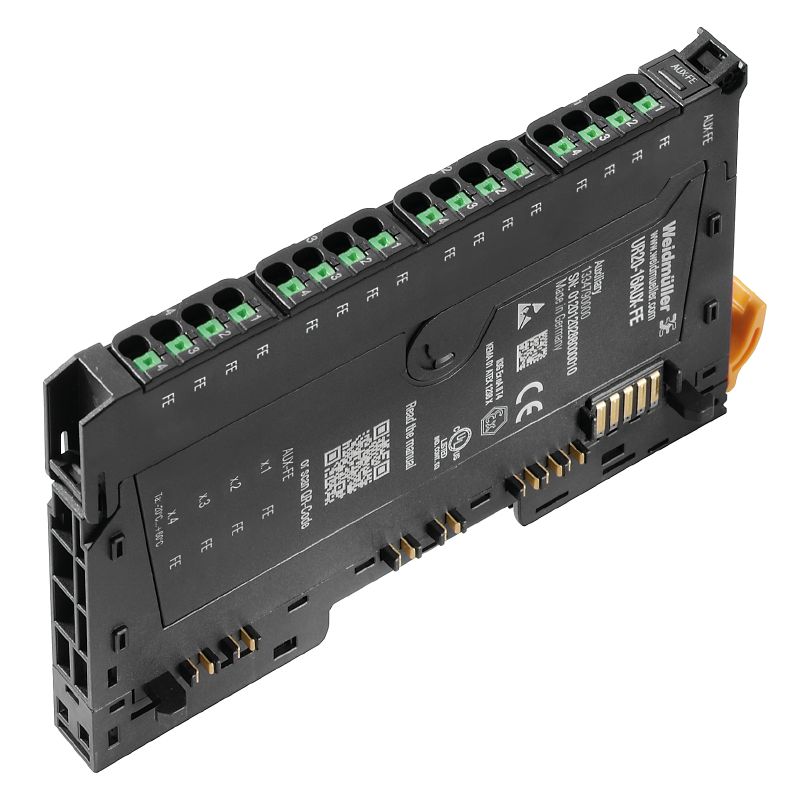

Product image
UR20-16AUX-FE
Block diagram
UR20-16AUX-FE

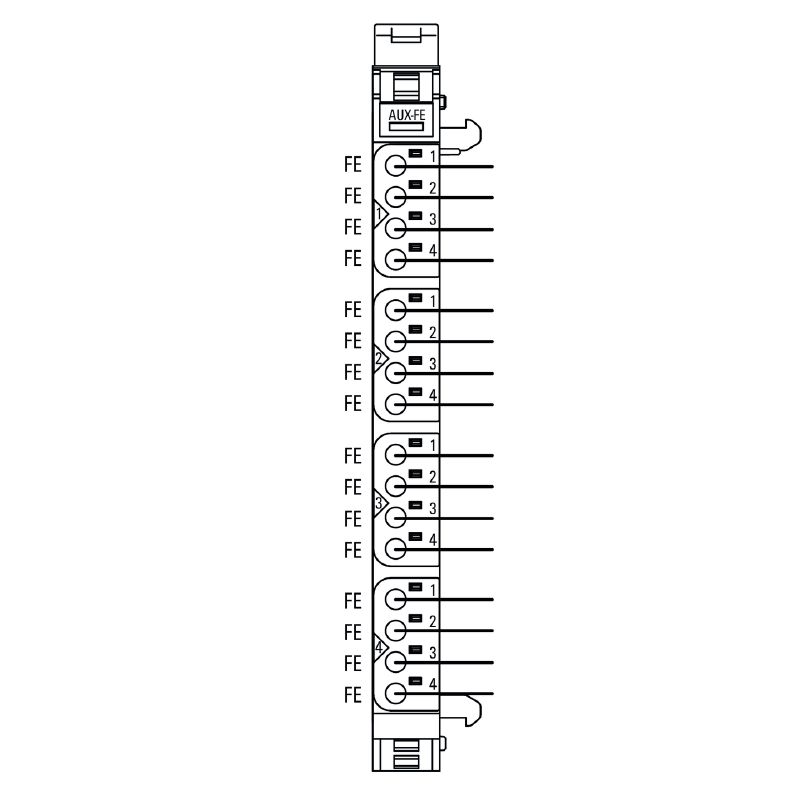

Connection diagram

UR20-16AUX-FE

Remote I/O module, IP20, Potential distributor

Tuotteen tunnus 1334790000
Avaa konfiguraattorissa
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 12 Varaosat 3 Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data General data Power supply System data Classifications Tender specification sheets

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319212/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319215/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319245/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319247/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319249/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319255/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319220/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319224/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_322323/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197
Certificate no. (cULusEX)
E223527

General ordering data

Version
Remote I/O module, IP20, Potential distributor
Order No.
1334790000
Type
UR20-16AUX-FE
GTIN (EAN)
4050118138085
Qty.
1 items
Packaging
Cardboard box

Dimensions and weights

Depth
76 mm
Depth (inches)
2,992 inch
Height
120 mm
Height (inches)
4,724 inch
Width
11,5 mm
Width (inches)
0,453 inch
Mounting dimension - height
128 mm
Net weight
84 g

Temperatures

Storage temperature
-40 °C ... +85 °C
Operating temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
82327f13-cd27-455a-ab5b-a62e1996dcf8
Product Carbon Footprint
  • Cradle to gate:
    2,763 kg CO2 eq.

Connection data

Ledardiameter, entrådig, min. (AWG)
AWG 26
Number
16
Przekrój przyłącza przewodu, z cienkiego drutu, maks. (AWG)
AWG 16
Przekrój przyłącza przewodu, z cienkiego drutu, min. (AWG)
AWG 26
Type of connection
PUSH IN
Wire connection cross section, finely stranded, max.
1,5 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, min.
0,14 mm²
Сечение подключаемого провода, одножильного, макс. (AWG)
AWG 16

General data

Air pressure (operation)
≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (storage)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Carril de montaje
TS 35
Levegő páratartalma (szállítás)
10% to 95%, non-condensing as per DIN EN 61131-2
Pollution severity
2
Surge voltage category
II
Test voltage
500 V
UL 94 flammability rating
V-0
Vibration resistance
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6
Wilgotność powietrza (praca)
10% to 95%, non-condensing as per DIN EN 61131-2
Wilgotność powietrza (składowanie)
10% to 95%, non-condensing as per DIN EN 61131-2
Wstrząs
15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
공기압(운반)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2

Power supply

Supply voltage
24 V DC +20 %/ -15 %
from input or output current path / FE

System data

Field bus protocol
PROFINET IRT
PROFINET RT
CC-Link IE TSN
IEC 61162-450
PROFIBUS DP-V1
EtherCAT
Modbus/TCP
EtherNet/IP
CANopen
DeviceNet
POWERLINK
CC-Link
Galvanic isolation
500 V DC between the current paths
Interface
u-remote system bus
Module type
Auxiliary module
Transmission speed backplane bus, max.
48 Mbit

Classifications

ETIM 8.0
EC001600
ETIM 9.0
EC001600
ETIM 10.0
EC001600
ECLASS 14.0
27-24-26-10
ECLASS 15.0
27-24-26-10

Tender specification sheets

Long specification
AUX-FE 16-pole potential distribution module for FE (functional earth) Supply voltage: 24 VDC +25% / –15% Weight: 84 g Brand: Weidmüller Type: UR20-AUX-FE
