UR20-8AI-I-16-HD

Remote I/O module, IP20, Analog signals, Input, 8-channel

Tuotteen tunnus 1315650000

Ominaisuudet

General ordering data

Version	Remote I/O module, IP20, Analog signals, Input, 8-channel
Order No.	1315650000
Type	UR20-8AI-I-16-HD
GTIN (EAN)	4050118118834
Qty.	1 items

Dimensions and weights

Depth	76 mm
Depth (inches)	2,992 inch
Height	120 mm
Height (inches)	4,724 inch
Width	11,5 mm
Width (inches)	0,453 inch
Mounting dimension - height	128 mm
Net weight	74 g

Temperatures

Storage temperature	-40 °C ... +85 °C
Operating temperature	-20 °C ... +60 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	7a, 7cI
REACH SVHC	Lead 7439-92-1
SCIP	82327f13-cd27-455a-ab5b-a62e1996dcf8

analogue inputs

Accuracy	0.1% FSR
Conversion time	1 ms
Individual channel diagnosis	No
Input value	Current I (0…20 mA, 4…20 mA)
Internal resistance I	50 Ω
Module diagnosis	Yes
Number of analogue inputs	8
Resolution	16 Bit
Reverse polarity protection	Yes

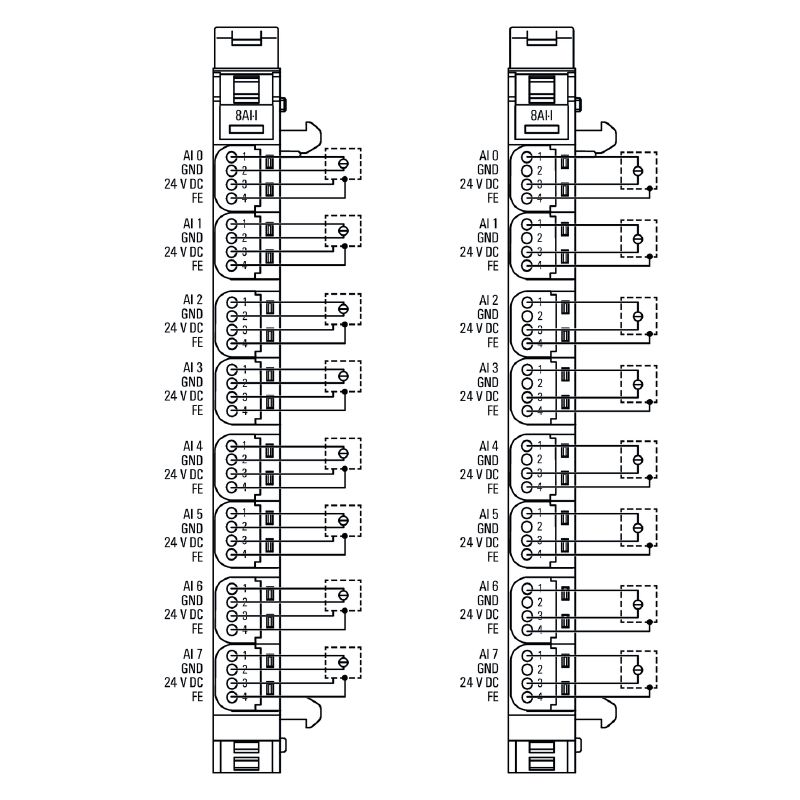

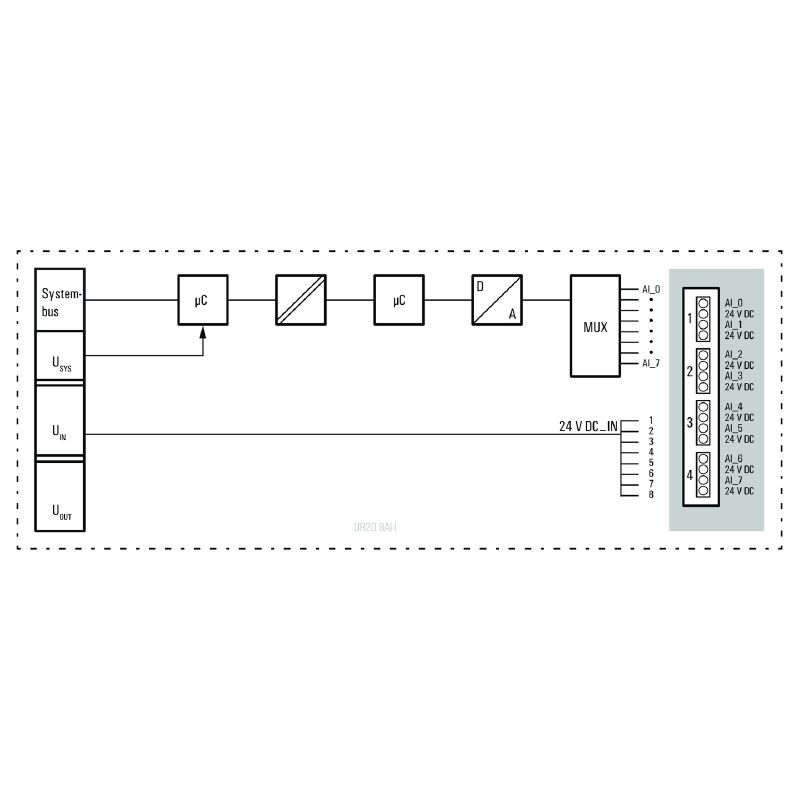

Sensor connection	2-wire 3-wire 3-wire + FE
Sensor supply	Yes
Short-circuit-proof	Yes

Connection data

Wire connection cross section, finely stranded, max.	0,35 mm²
Wire connection cross section, finely stranded, min.	0,14 mm²
Wire cross-section, finely stranded, max. (AWG)	AWG 22
Wire cross-section, finely stranded, min. (AWG)	AWG 26
Wire cross-section, solid, max.	0,35 mm²
Wire cross-section, solid, max. (AWG)	AWG 22
Wire cross-section, solid, min.	0,14 mm²
Wire cross-section, solid, min. (AWG)	AWG 26

General data

Air humidity (operation)	10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (storage)	10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (transport)	10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)	≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (storage)	1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Air pressure (transport)	1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Pollution severity	2
Rail	TS 35
Shock	15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Surge voltage category	II
Test voltage	500 V
UL 94 flammability rating	V-0
Vibration resistance	5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6

Power supply

Current consumption from I_IN (the respective power segment)	20 mA + load
Current consumption from I_sys, typ.	8 mA
Reverse polarity protection	Yes
Voltage supply	24 V DC +20 %/ -15 % via the system bus

System data

Field bus protocol	PROFINET IRT PROFINET RT CC-Link IE TSN PROFIBUS DP-V1 EtherCAT Modbus/TCP EtherNet/IP CANopen DeviceNet POWERLINK CC-Link
Galvanic isolation	500 V DC between the current paths
Interface	u-remote system bus
Module type	Analogue input module
Process data	16 Byte
Transmission speed of system bus, max.	48 Mbit

Important note

Product information

Note: Please order connector (1469340000) separately

Downloads

Approval/Certificate/Document of Conformity	[KC certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_293738) [DNV certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_49586) [DEMKO15ATEX1525X](https://mdcop.weidmueller.com/mediadelivery/asset/900_216513) [CCC certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_236882) [CCS certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_314296) [CCS certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_321094) [UKCA Declaration of Conformity - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_262121) [CE Declaration of Conformity - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_281447)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_51798) [Compatibility information -- Combinability of UR20](https://mdcop.weidmueller.com/mediadelivery/asset/900_164873)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1315650000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1315650000)
Product Change Notification	[Release-Notes - Firmware](https://mdcop.weidmueller.com/mediadelivery/asset/900_49695)
Software	[Firmware -- Current firmware UR20-4AI-UI](https://mdcop.weidmueller.com/mediadelivery/asset/900_49413) [Firmware -- Archive firmware UR20-4AI-UI](https://mdcop.weidmueller.com/mediadelivery/asset/900_90978)
User Documentation	[Handbuch u-remote DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49496) [Manual u-remote EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49497)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001596
ETIM 7.0	EC001596
ETIM 8.0	EC001596
ETIM 9.0	EC001596
ECLASS 9.0	27-24-26-01
ECLASS 9.1	27-24-26-01
ECLASS 10.0	27-24-26-01
ECLASS 11.0	27-24-26-01
ECLASS 12.0	27-24-26-01
ECLASS 13.0	27-24-26-01
ECLASS 14.0	27-24-26-01

Approvals

Approvals	![ABS](/picture/ABS.gif) ![BURVER](/picture/BURVER.gif) ![CCCEX](/picture/CCCEX.gif) ![CCS](/picture/CCS.gif) ![CE](/picture/CE.gif) ![CLASSNK](/picture/CLASSNK.gif) ![CULUS](/picture/CULUS.gif) ![CULUSEX](/picture/CULUSEX.gif) ![DEMKOATEX](/picture/DEMKOATEX.gif) ![DETNORVER](/picture/DETNORVER.gif) ![IECEXULD](/picture/IECEXULD.gif) ![KOREANCERT](/picture/KOREANCERT.gif) ![KR](/picture/KR.gif) ![LLOYDSREG](/picture/LLOYDSREG.gif) ![RINA](/picture/RINA.gif) ![UKEX](/picture/UKEX.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E141197
Certificate no. (cULusEX)	E223527
