Ominaisuudet

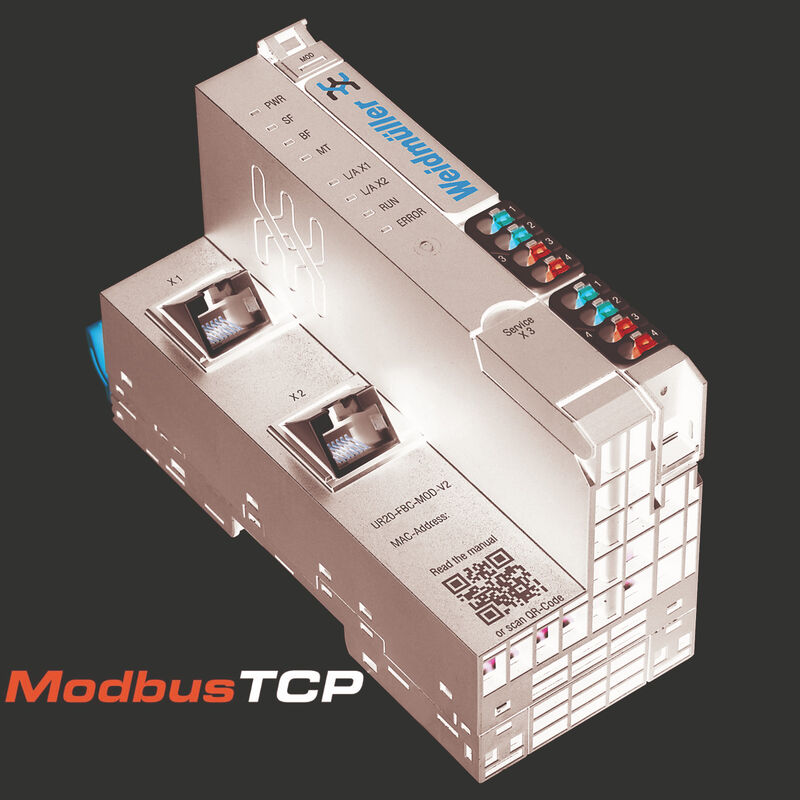

| Version | Remote I/O fieldbus coupler, IP20, Ethernet, Modbus/TCP |
| Order No. | 2476450000 |
| Type | UR20-FBC-MOD-TCP-V2 |
| GTIN (EAN) | 4050118487367 |
| Qty. | 1 items |
| Depth | 76 mm |
| Depth (inches) | 2,992 inch |
| Height | 120 mm |
| Height (inches) | 4,724 inch |
| Width | 52 mm |
| Width (inches) | 2,047 inch |
| Mounting dimension - height | 128 mm |
| Net weight | 223 g |
| Storage temperature | -40 °C ... +85 °C |
| Operating temperature | -20 °C ... +60 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 98e19a7e-033b-4e68-93e3-c47b30de875e |
| Type of connection | PUSH IN |
| Wire connection cross section, finely stranded, max. | 1,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,14 mm² |
| Wire cross-section, finely stranded, max. (AWG) | AWG 16 |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. | 1,5 mm² |
| Wire cross-section, solid, max. (AWG) | AWG 16 |
| Wire cross-section, solid, min. | 0,14 mm² |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Air humidity (operation) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air humidity (storage) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air humidity (transport) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2 |
| Air pressure (storage) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Air pressure (transport) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Pollution severity | 2 |
| Rail | TS 35 |
| Shock | 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27 |
| Surge voltage category | II |
| Test voltage | 500 V |
| UL 94 flammability rating | V-0 |
| Vibration resistance |
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6 |

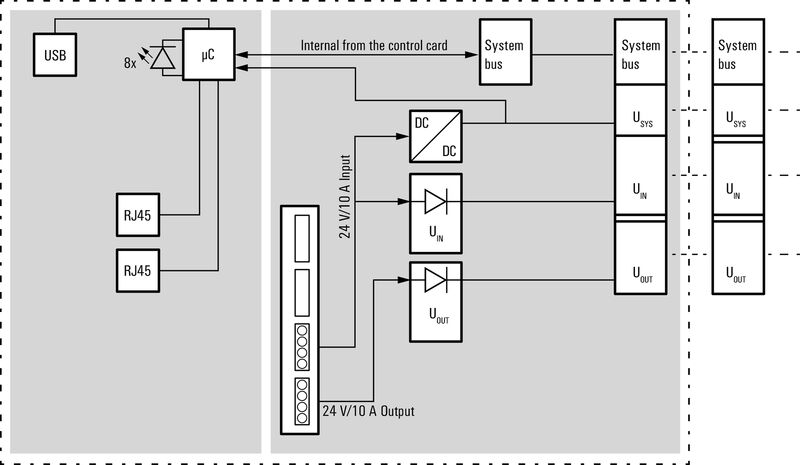

| Current consumption from Isys, typ. | 112 mA |
| Feed current for IIN (input current path) |
|
| Feed current for IIN (input current path) , max. | 10 A |
| Feed current for IOUT (output current path) |
|
| Feed current for IOUT (output current path) , max. | 10 A |
| Feed current for the system, max. | 4 A |
| Supply voltage for outputs | 24 V DC +20 %/ -15 % |
| Supply voltage system and inputs | 24 V DC +20 %/ -15 % |
| Voltage supply |
24 V DC +20 %/ -15 %
via the system bus |
| Configuration interface | Micro USB 2.0 |
| Connection type | 2x RJ45 plug-in connectors |
| Diagnostic data | 1 024 Byte |
| Field bus protocol | Modbus/TCP |
| Fieldbus interface |
Full / Half Duplex
Auto MDI/X Autonegotiation |
| Interface | u-remote system bus |
| max. number of modules | 64 |
| Module type | Bus coupler |
| Parameter data | 1 024 Byte |
| Process data | 1 kByte |
| Transmission rate of field bus, max. | 100 Mbit/s |
| Transmission speed of system bus, max. | 48 Mbit/s |
| Approval/Certificate/Document of Conformity |
[KC certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_293738)
[Compass safe distance certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_49584) [DEMKO15ATEX1525X](https://mdcop.weidmueller.com/mediadelivery/asset/900_216513) [CCC certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_236882) [UR20 coupler CCC certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_311448) [CCS certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_314296) [UKCA Declaration of Conformity - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_273634) [CE Declaration of Conformity - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_281446) [Lloyds Register certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_49585) [DNV/GL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_49586) [ABS certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_52871) [RINA certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_52872) [Bureau Veritas - Type Approval Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_90817) [PRS (Polish Register of Shipping)](https://mdcop.weidmueller.com/mediadelivery/asset/900_102756) [NIPPON KAIJI KYOKAI Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_103119) [WI13ATEX0002 Power Calc](https://mdcop.weidmueller.com/mediadelivery/asset/900_216512) |
| Engineering Data |
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54793)
[Compatibility information -- Combinability of UR20](https://mdcop.weidmueller.com/mediadelivery/asset/900_164873) [Quick start guide -- Modbus - Understanding Coils and Register](https://mdcop.weidmueller.com/mediadelivery/asset/900_246227) [Application notes -- Measuring higher voltages and currents with u-remote](https://mdcop.weidmueller.com/mediadelivery/asset/900_306180) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2476450000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2476450000&norm=0) |
| Product Change Notification | [Release-Notes - Firmware and Supported modules list](https://mdcop.weidmueller.com/mediadelivery/asset/900_49681) |
| Software |
[WI-Manager, DTM-Library for online installation](https://mdcop.weidmueller.com/mediadelivery/asset/900_35364)
[Library and function block -- Language_Pack_UR20_FBC](https://mdcop.weidmueller.com/mediadelivery/asset/900_58377) [Firmware -- Archiv Firmware files Modbus V2 coupler](https://mdcop.weidmueller.com/mediadelivery/asset/900_68274) [Firmware -- Current Firmware file Modbus V2 coupler](https://mdcop.weidmueller.com/mediadelivery/asset/900_68275) [Driver -- USB driver](https://mdcop.weidmueller.com/mediadelivery/asset/900_88417) [Release notes for Weidmueller FDT-DTM Software version](https://mdcop.weidmueller.com/mediadelivery/asset/900_248446) |
| User Documentation |
[MAN_U-REMOTE_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49496)
[MAN_U-REMOTE_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49497) [MAN_UR20_WEBSERVER_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_53286) [MAN_UR20_WEBSERVER_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_53287) [20211018 Security Advisory – Remote I/O fieldbus couplers (IP20) affected by INFRA:HALT vulnerabilities](https://mdcop.weidmueller.com/mediadelivery/asset/900_244952) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001603 |
| ETIM 7.0 | EC001603 |
| ETIM 8.0 | EC001603 |
| ETIM 9.0 | EC001603 |
| ECLASS 9.0 | 27-24-26-07 |
| ECLASS 9.1 | 27-24-26-07 |
| ECLASS 10.0 | 27-24-26-07 |
| ECLASS 11.0 | 27-24-26-07 |
| ECLASS 12.0 | 27-24-26-07 |
| ECLASS 13.0 | 27-24-26-07 |
| Approvals |                   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
| Certificate no. (cULusEX) | E223527 |
