Ominaisuudet

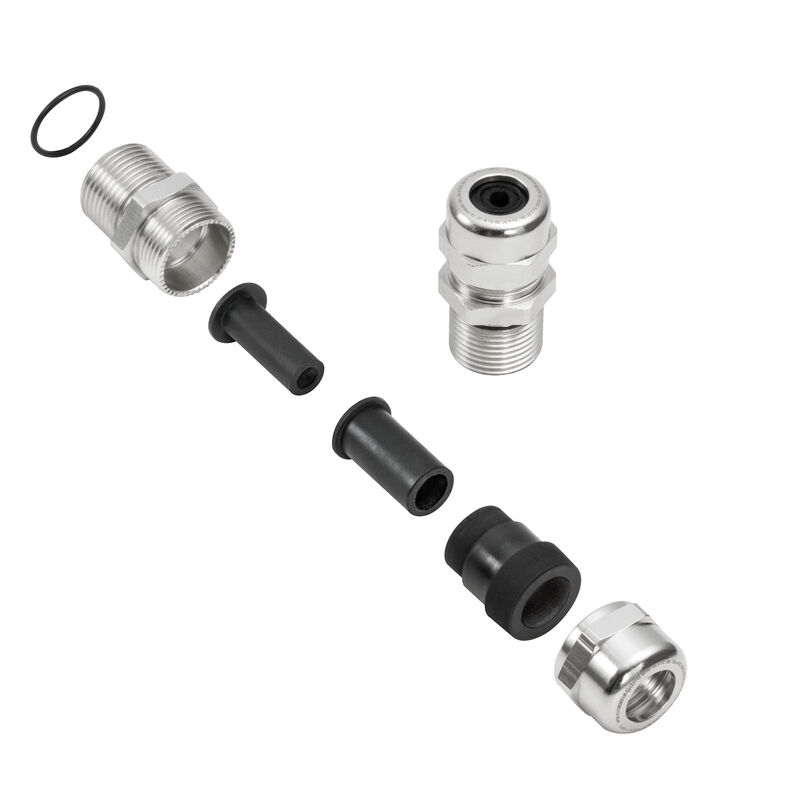

| Version | VG Ex MS (Ex brass cable gland), Cable glands, straight, M 25, 16 mm, OD min. 10 - OD max. 18 mm, IP66, IP68, Brass, nickel-plated |
| Order No. | 1460070000 |
| Type | VG M25 EXE MS |
| GTIN (EAN) | 4050118266214 |
| Qty. | 20 items |
| Height | 45,5 mm |
| Height (inches) | 1,791 inch |
| Length | 45,5 mm |
| Length (inches) | 1,791 inch |
| Net weight | 64,4 g |
| Operating temperature | -40 °C...100 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | b5ff1f66-ddba-4739-9fc0-0521ddb52139 |
| Certificate no. cable gland (ATEX) | IMQ 11 ATEX 038 X |
| Certificate no. cable gland (GOST) | POCC TR.05.B04161 |
| Identification |
Ex d IIC Gb
Ex e IIC Gb Ex tb IIIC Db IP66/68 |
| AF size 1 | 28 mm |
| AF size 2 | 28 mm |
| Cable glands | metric |
| Clamp insert | Neoprene |
| External thread | M 25 |
| Halogen | Yes |
| Installation guidelines | See assembly instructions |
| Length of thread | 16 mm |
| Material | Brass, nickel-plated |
| Note: protection class | Please observe the information in the installation instructions. |
| O-Ring | NBR |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | −40 °C |
| Outer cable diameter, max. | 18 mm |
| Outer cable diameter, min. | 10 mm |
| Pitch of thread | 1,5 mm |
| Protection degree |
IP66
IP68 - 6 bar (30 min.) |
| Protection degree with GWDR |
IP66
IP68 |
| Seal insert | CR |
| Standards |
EN 60079-0
EN 60079-1 EN 60079-7 EN 60079-11 EN 60079-31 |
| Product information |
For enclosure wall thicknesses less than or equal to 3 mm (e.g. Klippon STB enclosures), an additional flat gasket must be used - GWDR NP. Additional flat gaskets are included in the packaging unit. |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54198) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1460070000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1460070000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1460070000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000441 |
| ETIM 7.0 | EC000441 |
| ETIM 8.0 | EC000441 |
| ETIM 9.0 | EC000441 |
| ECLASS 9.0 | 27-14-44-32 |
| ECLASS 9.1 | 27-14-44-34 |
| ECLASS 10.0 | 27-14-44-32 |
| ECLASS 11.0 | 27-14-44-32 |
| ECLASS 12.0 | 27-14-08-04 |
| ECLASS 13.0 | 27-14-08-04 |
| Approvals | EAC; ATEX |
| ROHS | Conform |
