Ominaisuudet

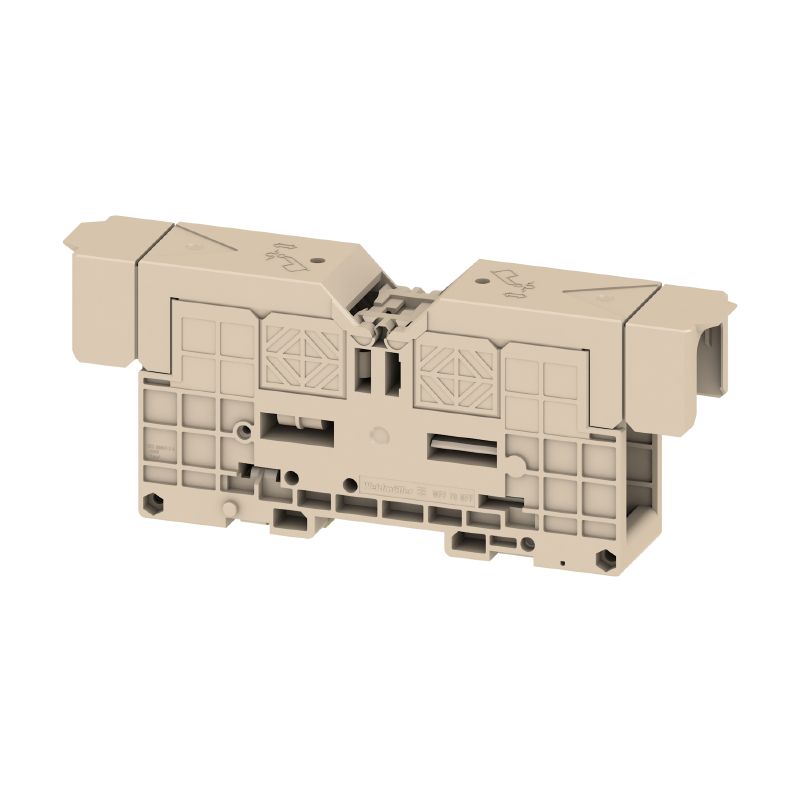

| Version | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 70 mm², Threaded stud connection, Direct mounting, TS 35 |
| Order No. | 1049230000 |
| Type | WFF 70 NFF |
| GTIN (EAN) | 4050118255171 |
| Qty. | 5 items |
| Depth | 61 mm |
| Depth (inches) | 2,402 inch |
| Height | 132 mm |
| Height (inches) | 5,197 inch |
| Width | 32 mm |
| Width (inches) | 1,26 inch |
| Net weight | 191,1 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | −50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| End cover plate required | No |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| Explosion-tested version | No |
| Installation advice |
Direct mounting
TS 35 |
| Open sides | closed |
| 2 x cable lugs DIN 46 234 | 2.5...70 mm² |
| 2 x cable lugs DIN 46 235 | 16...70 mm² |
| Cable lug to DIN 46234 | 2.5...95 mm² |
| Cable lug to DIN 46235 | 16...70 mm² |
| Clamping range, bolted connection , max. | 95 mm² |
| Clamping range, bolted connection , min. | 2,5 mm² |
| Clamping range, max. | 95 mm² |
| Clamping range, min. | 2,5 mm² |
| Connection cross-section, stranded, max. | 95 mm² |
| Connection cross-section, stranded, min. | 2,5 mm² |
| Number of connections | 2 |
| Stud size for spade connection | M 8 |
| Tightening torque, max. | 18 Nm |
| Tightening torque, min. | 15 Nm |
| Type of connection | Threaded stud connection |
| Wire connection cross section, finely stranded, max. | 95 mm² |
| Wire connection cross section, finely stranded, min. | 2,5 mm² |
| Wire connection cross-section, solid core, max. | 95 mm² |
| Wire connection cross-section, solid core, min. | 2,5 mm² |
| Installation advice |
Direct mounting
TS 35 |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Rated cross-section | 70 mm² |
| Rated voltage | 1 000 V |
| Rated DC voltage | 1 000 V |
| Rated current | 192 A |
| Current at maximum wires | 192 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0,17 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 6,14 W |
| Approval/Certificate/Document of Conformity |
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527)
[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59945) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1049230000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1049230000) |
| User Documentation |
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
[DIRECT MOUNTING WFF TERMINAL BLOCKS](https://mdcop.weidmueller.com/mediadelivery/asset/900_164386) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| ECLASS 14.0 | 27-25-01-01 |
| Approvals |   |
| ROHS | Conform |
