WIL-NT-STANDARD
WIL-NT-STANDARD

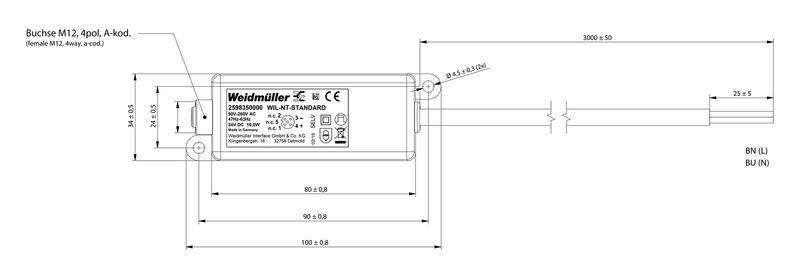

Dimensioned drawing

WIL-NT-STANDARD

Produkt ID 2598350000
Download datablad Engineering-support Produktdownloads
Er tilbehør til 58 Anvendte produkter 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable technical specifications Connection data Electric data General technical data Material data Power supply / input Power supply / output Power supply / safety Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Order No.
2598350000
Type
WIL-NT-STANDARD
GTIN (EAN)
4050118611168
Qty.
1 Styk

Dimensions and weights

Depth
34 mm
Depth (inches)
1,339 inch
Height
32 mm
Height (inches)
1,26 inch
Width
100 mm
Width (inches)
3,937 inch
Net weight
292 g

Temperatures

Operating temperature
-30 - 50°C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable technical specifications

Cavo materiale
TPE
Sheathing colour
black
Housing main material
PBT
Cable length
3 m
Érkeresztmetszet
0,75 mm²

Connection data

버전
Power supply unit

Electric data

정격 전압
24 V DC
정격 전류
1,10 A

General technical data

Type of mounting
Screw mounting
Protection degree
IP65 when locked

Material data

Housing main material
PBT
Threaded ring material
Nickel-plated CuZn

Power supply / input

Input frequency
47 - 63 Hz
Input fuse (internal)
Yes
Version
Cable end open
Connecting thread
without
Circuitry
Blue -
Black +

Power supply / output

Anschlusstechnik
Screw connection
Output power
10 W
Rated output voltage
24 V DC
Output current, max.
0,4 A
Version
Socket connector
Connecting thread
M12
Circuitry
PIN 3: - (blue)
PIN 4: + (black)

Power supply / safety

Safety standard
SELV according to EN 60950
EN 61347-2-13
Short-circuit protection
Yes
Overload protection
Yes
Protection against over-heating
Yes
Protection class
II
Safety extra-low voltage
Yes

Classifications

ETIM 8.0
EC002540
ETIM 9.0
EC002540
ETIM 10.0
EC002540
ECLASS 14.0
27-04-07-01
ECLASS 15.0
27-04-07-01
