Ominaisuudet

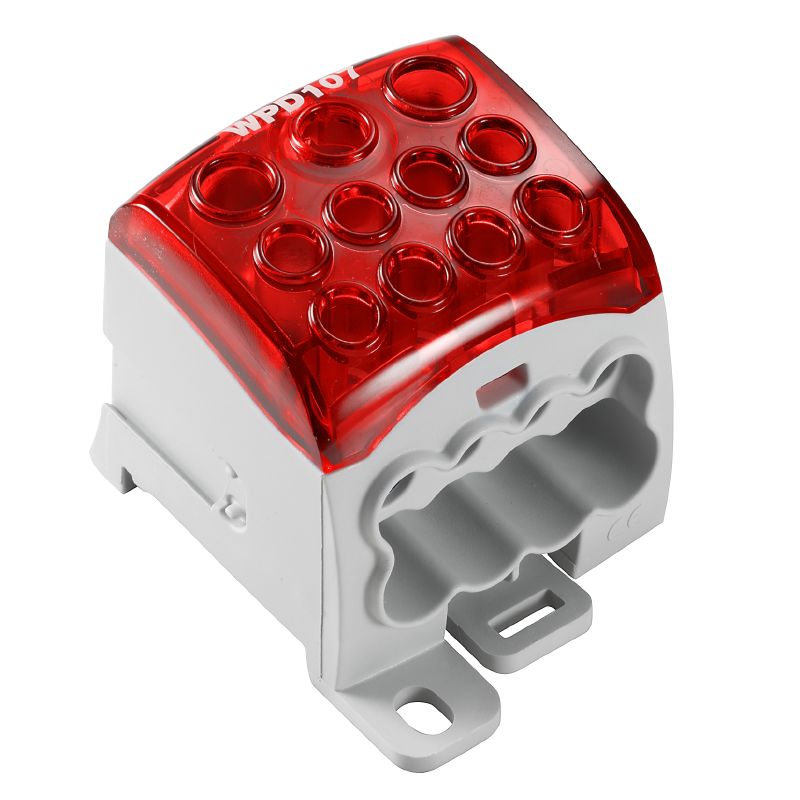

| Version | Potential distributor terminal, Screw connection, red, 95 mm², 270 A, 1000 V, Number of connections: 11, Number of levels: 1, Mounting plate, TS 35, V-0, Wemid |
| Order No. | 2725350000 |
| Type | WPD 107 1X95/2X35+8X25 RD |
| GTIN (EAN) | 4050118796537 |
| Qty. | 1 items |
| Depth | 54,5 mm |
| Depth (inches) | 2,146 inch |
| Height | 73 mm |
| Height (inches) | 2,874 inch |
| Width | 51 mm |
| Width (inches) | 2,008 inch |
| Net weight | 210 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | −50 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | e1c310ef-6b67-4efa-80a6-d307472f4de9 |
| Material | Wemid |
| Colour | red |
| UL 94 flammability rating | V-0 |
| Certificate No. (ATEX) | CNEX16ATEX0005U |
| Certificate No. (IECEX) | IECEXCNEX16.0005U |
| Max. voltage (ATEX) | 440 V |
| Current (ATEX) | 232 A |
| Wire cross section max. (ATEX) | 95 mm² |
| Max. voltage (IECEX) | 440 V |
| Current (IECEX) | 232 A |
| Version | Screw connection |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | Yes |
| Rail |
Mounting plate
TS 35 |
| N-function | Yes |
| PE function | No |
| PEN function | No |
| Explosion-tested version | Yes |
| Open sides | closed |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Connection cross-section, stranded, max. | 95 mm² |
| Connection direction | on side |
| Number of connections | 11 |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 70 mm² |
| Wire connection cross-section, solid core, max. | 95 mm² |
| Certificate number (cCSAus) | 70128467 |
| Number of poles | 1 |
| Rail |
Mounting plate
TS 35 |
| Standards |
IEC 60947-7-1
UL 1059 |
| Rated cross-section | 95 mm² |
| Rated voltage | 1 000 V |
| Rated AC voltage | 1 000 V |
| Rated DC voltage | 1 500 V |
| Rated current | 270 A |
| Standards |
IEC 60947-7-1
UL 1059 |
| Certificate No. (cURus) | E60693 |
| Product information | The socket complies with flammability class V-2 according to UL94. |
| Approval/Certificate/Document of Conformity |
[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_105797)
[UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253936) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89230) [VDE Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_153698) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253013) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_165237) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_249781) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2725350000) |
| User Documentation |
[DATA SHEET WPD 107](https://mdcop.weidmueller.com/mediadelivery/asset/900_89312)
[Manual - How to connect aluminum wires in WPD-Terminal blocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_317919) [Torque_Conductor_Connection_Data_WPD_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_319361) [Drehmoment_Leiteranschlussdaten_WPD_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_319362) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-19 |
| ECLASS 14.0 | 27-25-01-19 |
| Approvals |       |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
