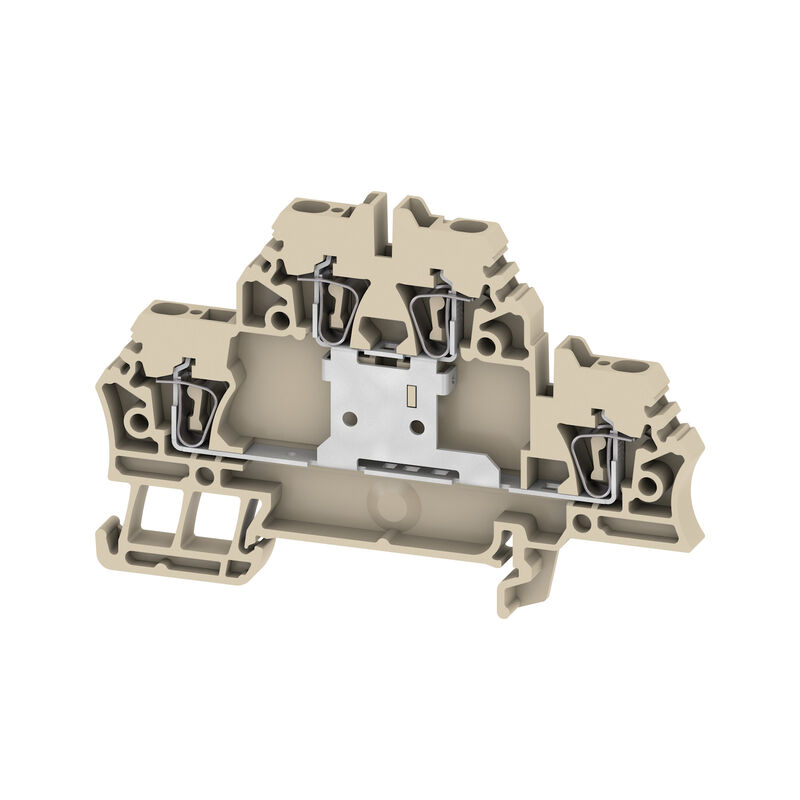

ZDK 2.5V

Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, dark beige

Tuotteen tunnus 1689990000

Ominaisuudet

General ordering data

Version	Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, dark beige
Order No.	1689990000
Type	ZDK 2.5V
GTIN (EAN)	4008190875459
Qty.	50 items

Dimensions and weights

Depth	53 mm
Depth (inches)	2,087 inch
Depth including DIN rail	54 mm
Height	79,5 mm
Height (inches)	3,13 inch
Width	5,1 mm
Width (inches)	0,201 inch
Net weight	10,56 g

Temperatures

Storage temperature	-25 °C...55 °C
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min.	−60 °C
Continuous operating temp., max.	130 °C

Material data

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	DEMKO16ATEX1729U
Certificate No. (IECEX)	IECEXULD16.0025U
Max. voltage (ATEX)	440 V
Current (ATEX)	20 A
Wire cross section max. (ATEX)	2.5 mm²
Max. voltage (IECEX)	440 V
Current (IECEX)	20 A
Wire cross section max. (IECEX)	2.5 mm²
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Marking EN 60079-7	Ex eb II C Gb
Ex 2014/34/EU label	II 2 G D

System specifications

Version	Tension-clamp connection Vertically cross-connected for plug-in cross-connector One end without connector
End cover plate required	Yes
Number of levels	2
Number of clamping points per level	2
Levels cross-connected internally	Yes
PE connection	No
Rail	TS 35

Additional technical data

Explosion-tested version	Yes
Number of similar terminals	1
Open sides	right
Type of mounting	Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection

Tension-clamp connection

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	2,5 mm²
Clamping range, min.	0,05 mm²
Connection direction	top
Gauge to IEC 60947-1	A2
Number of connections	4
Stripping length	10 mm
Tube length for wire-end ferrule with plastic collar DIN 46228/4	Tube length: nominal: 10 mm min.: 6 mm max.: 10 mm Cross-section for conductor connection: nominal: 0,5 mm² Tube length: min.: 6 mm nominal: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 0,75 mm² Tube length: min.: 6 mm nominal: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 1 mm² Tube length: min.: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 1,5 mm² Tube length: min.: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 2,5 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1	Tube length: nominal: 10 mm min.: 6 mm max.: 10 mm Cross-section for conductor connection: nominal: 0,5 mm² Tube length: min.: 6 mm nominal: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 0,75 mm² Tube length: min.: 6 mm nominal: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 1 mm² Tube length: min.: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 1,5 mm² Tube length: min.: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 2,5 mm²
Type of connection	Tension-clamp connection
Type of connection 2	Tension-clamp connection
Wire connection cross section AWG, max.	AWG 14
Wire connection cross section AWG, min.	AWG 24
Wire connection cross section, finely stranded, max.	2,5 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,5 mm²
Wire connection cross-section, solid core, max.	2,5 mm²
Wire connection cross-section, solid core, min.	0,5 mm²

CSA rating data

Certificate No. (CSA)	80053378-200039
Conductor size Factory wiring max. (CSA)	12 AWG
Conductor size Factory wiring min. (CSA)	26 AWG
Conductor size Field wiring max. (CSA)	12 AWG
Conductor size Field wiring min. (CSA)	26 AWG

General

Rail	TS 35
Standards	IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 14
Wire connection cross section AWG, min.	AWG 24

Rating data

Rated cross-section	2,5 mm²
Rated voltage	500 V
Rated DC voltage	500 V
Rated current	20 A
Current at maximum wires	20 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1,33 mΩ
Rated impulse withstand voltage	6 kV
Power loss in accordance with IEC 60947-7-x	0,77 W
Pollution severity	3

UL rating data

Certificate No. (UR)	E60693
Conductor size Factory wiring max. (UR)	14 AWG
Conductor size Factory wiring min. (UR)	26 AWG
Conductor size Field wiring max. (UR)	14 AWG
Conductor size Field wiring min. (UR)	26 AWG
Current size C (UR)	15 A
Voltage size C (UR)	300 V

Downloads

Approval/Certificate/Document of Conformity	[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_68544) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253971) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_85206) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_85207) [DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152127) [CCC Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_178487) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253972) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37117) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284531) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_62844)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1689990000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1689990000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1689990000&norm=0)
User Documentation	[NTI ZDK-PE 2.5 V](https://mdcop.weidmueller.com/mediadelivery/asset/900_85219) [NTI ZDK 2.5 V DU-PE](https://mdcop.weidmueller.com/mediadelivery/asset/900_85220) [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-02

Approvals

Approvals	![CCCEX](/picture/CCCEX.gif) ![CE](/picture/CE.gif) ![CSA](/picture/CSA.gif) ![DEMKOATEX](/picture/DEMKOATEX.gif) ![DETNORVER](/picture/DETNORVER.gif) ![IECEXULD](/picture/IECEXULD.gif) ![KEMAKEUR](/picture/KEMAKEUR.gif) ![UKEX](/picture/UKEX.gif) ![UR](/picture/UR.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (UR)	E60693
