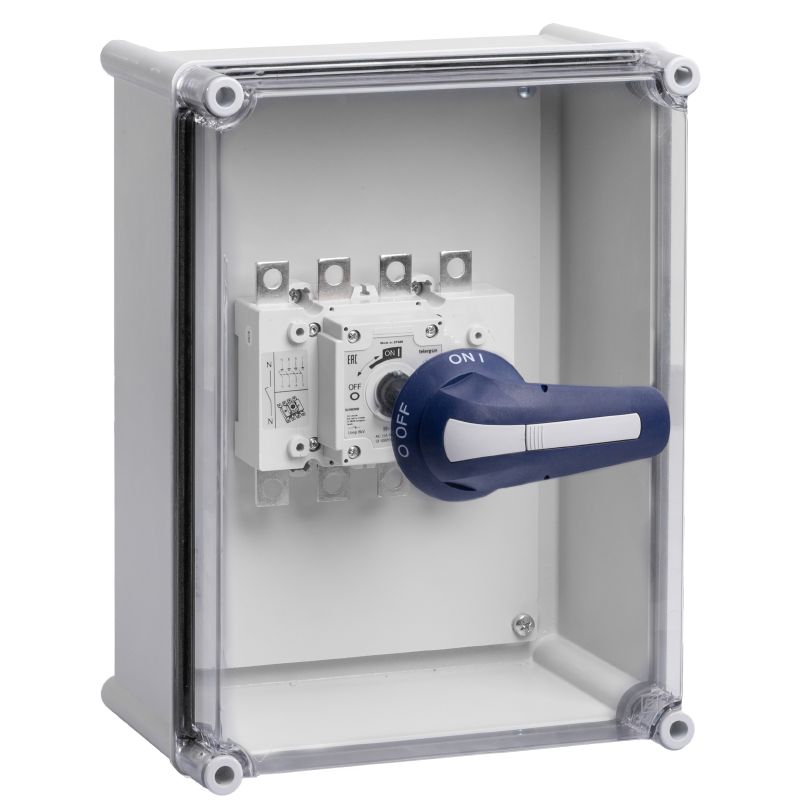

Similar to illustration
AC SB M 160A 4POL CG 06KV
AC SB M 160A 4POL CG 06KV
AC SB M 160A 4POL CG 06KV

AC SB M 160A 4POL CG 06KV

Photovoltaics, Switch, Switch disconnector, 600 V AC, 160 A, 4 pole, Manual switch

Produkt ID 3103190000
Download datablad Product Downloads
Anvendte produkter 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Выключатель нагрузки Classifications Tender specification sheets

Approvals

Omologazioni
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Versione
Photovoltaics, Switch, Switch disconnector, 600 V AC, 160 A, 4 pole, Manual switch
N. d’ordine
3103190000
Тип
AC SB M 160A 4POL CG 06KV
GTIN (EAN)
4099987148399
Qty.
1 Styk

Dimensions and weights

Profondità
215 mm
Depth (inches)
8,465 inch
Posizione verticale
360 mm
Height (inches)
14,173 inch
Larghezza
270 mm
Width (inches)
10,63 inch
Net weight
3.241 g

Temperatures

주변 온도
-25 °C…55 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Вид защиты
IP65

Выключатель нагрузки

Bemessungs-Kurzschlusseinschaltvermögen
13 kA
Corriente nominal de pico soportada
7 kA
Mechanical endurance class
M2 (5000)
Nominal current
160 A
Nominal voltage
400 V
Number of contacts as NC contact
0
Rated mainly active load-breaking current
160 A
Voltage type
AC
Záróérintkezőként működő érintkezők száma
4

Classifications

ETIM 8.0
EC000216
ETIM 9.0
EC004830
ETIM 10.0
EC004830
ECLASS 14.0
27-07-02-03
ECLASS 15.0
27-07-02-03

Tender specification sheets

Long specification

Load break Switch in polyester housing.
Suitable for disconnection on the AC side.
Number of poles: 4
Rated operational current (Ie) (Ie):
- according to IEC (AC-21): 160 A
Rated operational voltage (Ue):
- according to IEC: 690 V

Suitability for use:
Emergency Stop Switch: No
Main Switch: Yes

Number of contacts normally open: 4
Number of contacts normally closed: 0
Number of switching positions: 2
Lockable: Yes
The switch is mounted using 4 screws.
Protection class (IP): 65
Dimensions HxWxD: 360x270x215 mm.

Approved according to Low-voltage Switchgear and Controlgear: IEC 60947-3, DIN VDE 0660 Part 107 (EN 60947-3)
